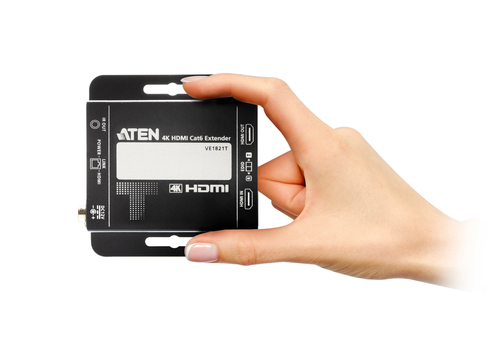

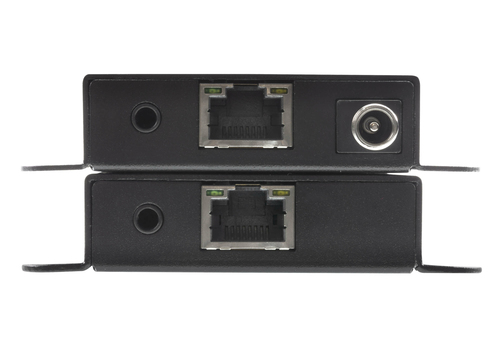

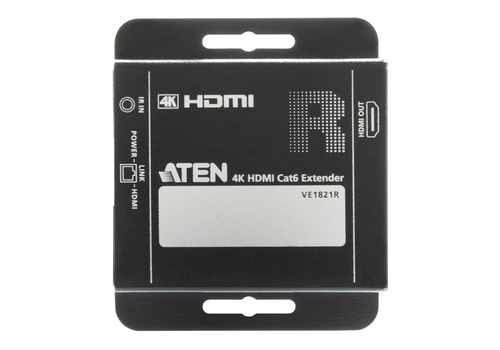

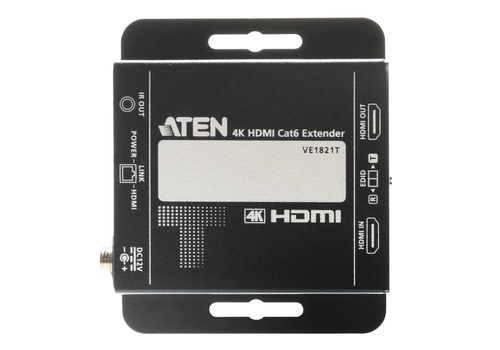

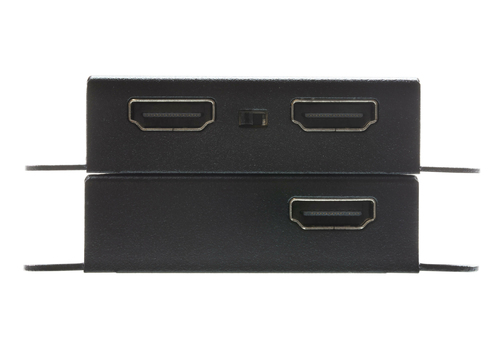

ATEN VE1821-AT-G AV extender AV transmitter & receiver Black
ATEN

VE1821-AT-G AV extender AV transmitter & receiver Black

Model VE1821-AT-GEAN 4710469342790

34 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Power source typeDC
  • Operating relative humidity (H-H)20 - 90%
  • Receiver dimensions (WxDxH)68 x 79.5 x 16.5 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Power source type
DC
Operating relative humidity (H-H)
20 - 90%
Receiver dimensions (WxDxH)
68 x 79.5 x 16.5 mm
Brand
ATEN
Category
AV Extender
Model
VE1821-AT-G
Part number
VE1821-AT-G
EAN / UPC
4710469342790
Also known as
ATEN VE1821-AT-G AV extender AV transmitter & receiver Black

Specifications

34 specifications in 6 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance35 m
Maximum refresh rate60 Hz
3DYes
Bandwidth10.2 Gbit/s
Bandwidth340 MHz
HDCPYes
HDCP version1.4
Impedance100 Ω
MaterialMetal
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Product colourBlack

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Remote (IR) input1
Remote (IR) output1
DC-in jackYes

Power

Power source typeDC
Power consumption (receiver) (max)0.87 W
Power consumption (transmitter) (max)1.86 mA

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)68 x 79.5 x 16.5 mm
Receiver weight120 g
Transmitter dimensions (WxDxH)68 x 79.5 x 16.5 mm
Transmitter weight120 g

Packaging data

Quantity per pack2 pc(s)
