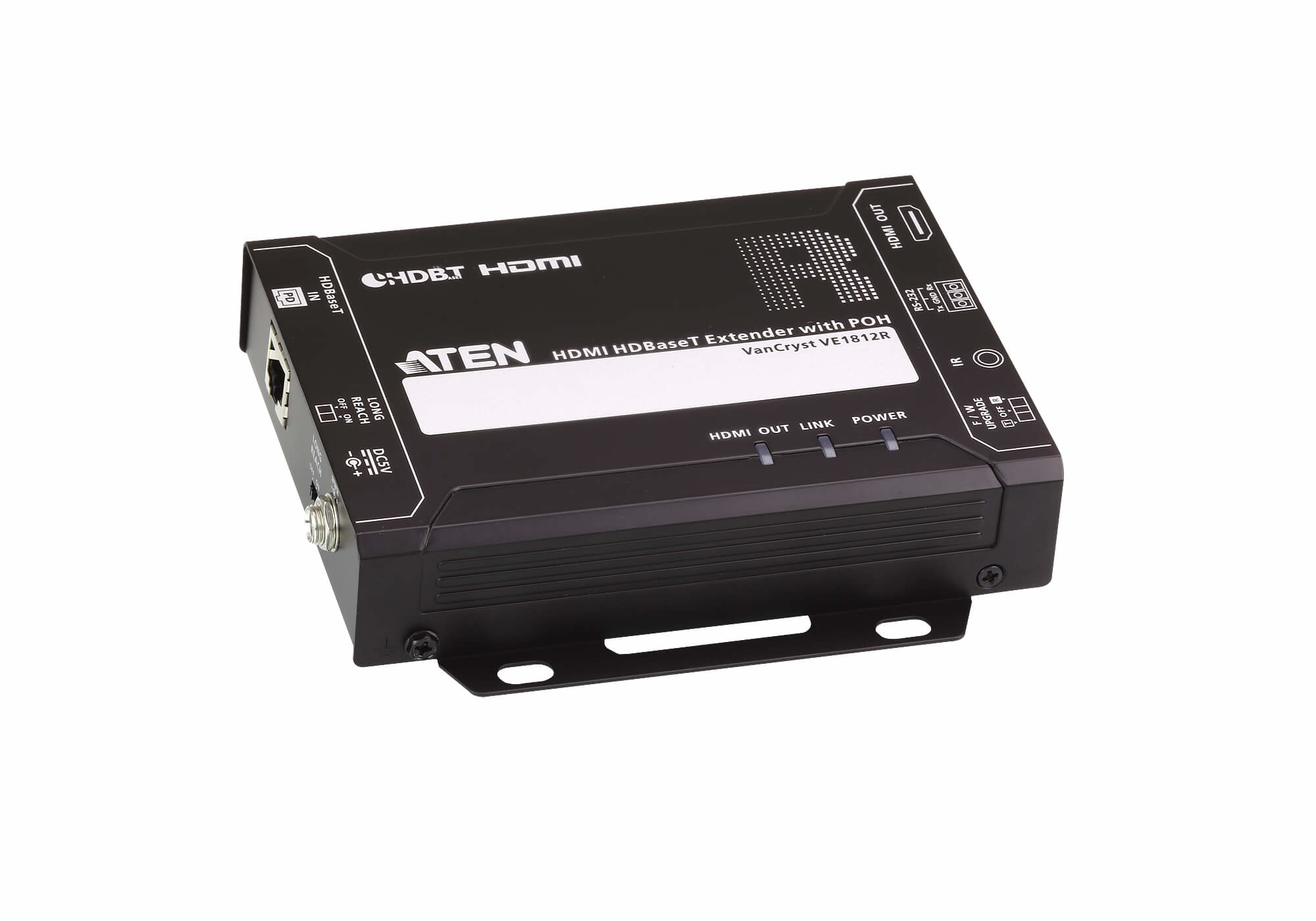

HDMI HDBaseT Receiver with POH
Model VE1812R-AT-GEAN 4719264645785
47 specifications
- ConnectivityWired
- TypeAV receiver
- Weight650 g
- ColourBlack
- Operating voltage (receiver)5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 650 g
- Colour
- Black
- Operating voltage (receiver)
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE1812R-AT-G
- Part number
- VE1812R-AT-G
- EAN / UPC
- 4719264645785
- Also known as
- ATEN HDMI HDBaseT Receiver with POH
Specifications
47 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Material | Metal |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDBaseT port | Yes |
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 6.4 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 650 g |
| Receiver dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Receiver weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 750 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.48 kg |
| Master (outer) case net weight | 3.25 kg |
| Products per master (outer) case | 5 pc(s) |
