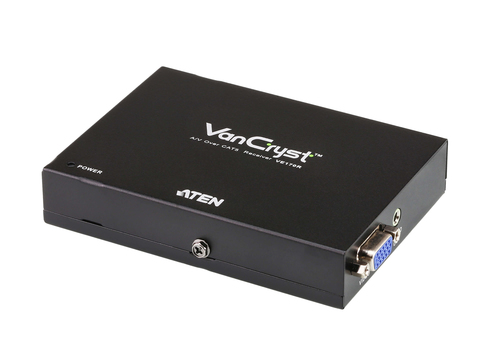

VE170R-AT-U AV extender AV receiver Black
Model VE170R-AT-U
21 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)90.4 x 127.7 x 22.6 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 90.4 x 127.7 x 22.6 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE170R-AT-U
- Part number
- VE170R-AT-U
- Also known as
- ATEN VE170R-AT-U AV extender AV receiver Black
Specifications
21 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 300 m |
| Impedance | 75 Ω |
| Material | Metal |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (receiver) (max) | 3.66 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 90.4 x 127.7 x 22.6 mm |
| Receiver weight | 240 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
