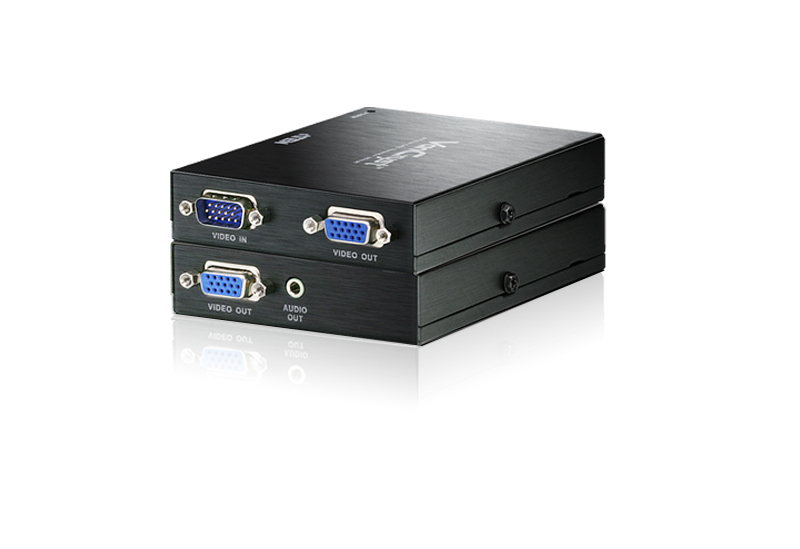

VE170-AT-G AV extender AV transmitter & transceiver Black
Model VE170-AT-GEAN 6727920026494
33 specifications
- ConnectivityWired
- TypeAV transmitter & transceiver
- ColourBlack
- Operating voltage (transmitter)5.3 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)127.7 x 90.4 x 22.6 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & transceiver
- Colour
- Black
- Operating voltage (transmitter)
- 5.3 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 127.7 x 90.4 x 22.6 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE170-AT-G
- Part number
- VE170-AT-G
- EAN / UPC
- 6727920026494
- Also known as
- ATEN VE170-AT-G AV extender AV transmitter & transceiver Black
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & transceiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 300 m |
| Electrostatic Discharge (ESD) protection | Yes |
| Bandwidth | 300 MHz |
| Cable length | 1.8 m |
| Impedance | 75 Ω |
| Material | Metal |
| Rack mounting | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA), 1920 x 1200 (WUXGA) |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 2 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5.3 V |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (TX) | 2.42 W |
| Power consumption (RX) | 3.32 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 250 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
