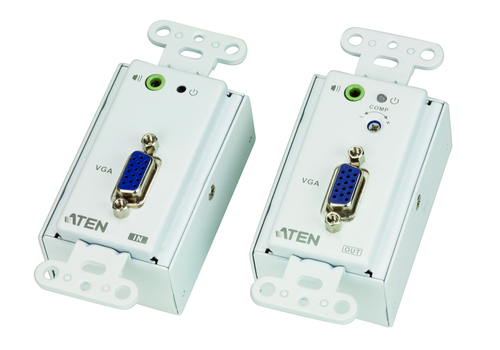

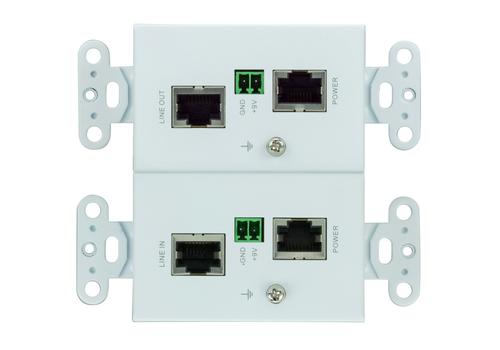

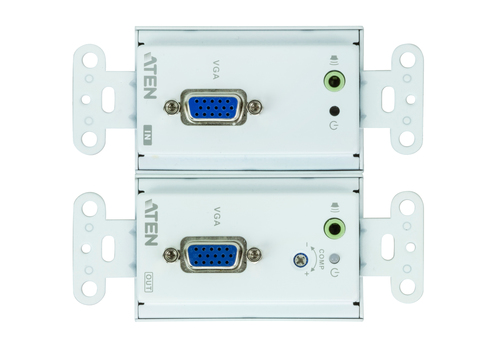

VE156-AT-U AV extender AV transmitter & receiver Metallic
Model VE156-AT-U
17 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourMetallic
- Operating voltage (receiver)9 V
- Operating relative humidity (H-H)0 - 80%
- Receiver dimensions (WxDxH)44.4 x 104.1 x 42.8 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Metallic
- Operating voltage (receiver)
- 9 V
- Operating relative humidity (H-H)
- 0 - 80%
- Receiver dimensions (WxDxH)
- 44.4 x 104.1 x 42.8 mm
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE156-AT-U
- Part number
- VE156-AT-U
- Also known as
- ATEN VE156-AT-U AV extender AV transmitter & receiver Metallic
Specifications
17 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 150 m |
| Impedance | 100 Ω |
| Material | Metal |
| Product colour | Metallic |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Audio input | Mini Stereo Jack |
| Audio output | Mini Stereo Jack |
Power
| Specification | Value |
|---|---|
| Operating voltage (receiver) | 9 V |
| Power consumption (transmitter) (max) | 0.95 W |
| Power consumption (receiver) (max) | 1.65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 44.4 x 104.1 x 42.8 mm |
| Transmitter dimensions (WxDxH) | 44.4 x 104.1 x 42.8 mm |
