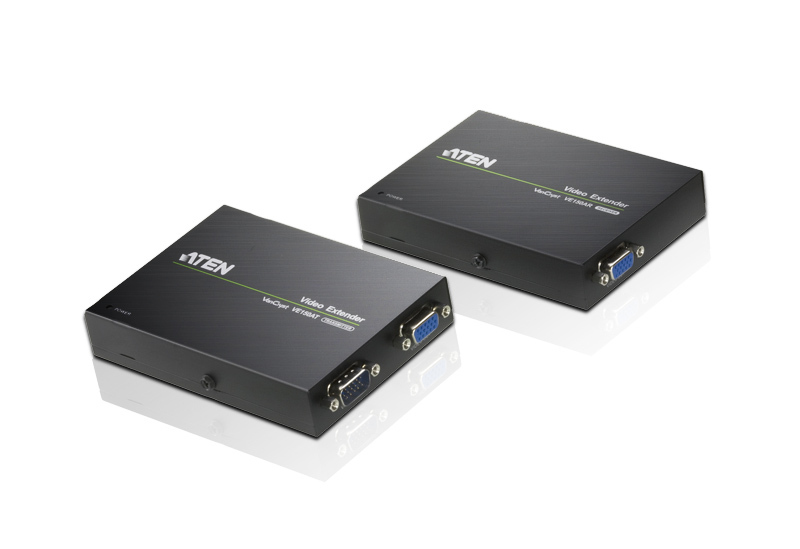

VGA Over Cat5e/6 Video Extender 150meter
Model VE150A-AT-GEAN 700315919959
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight970 g
- ColourBlack
- Power consumption (transmitter) (max)1 W
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 970 g
- Colour
- Black
- Power consumption (transmitter) (max)
- 1 W
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE150A-AT-G
- Part number
- VE150A-AT-G
- EAN / UPC
- 700315919959, 4710423778894
- Also known as
- ATEN VGA Over Cat5e/6 Video Extender 150meter
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| Impedance | 75 Ω |
| Material | Metal |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDBaseT port | Yes |

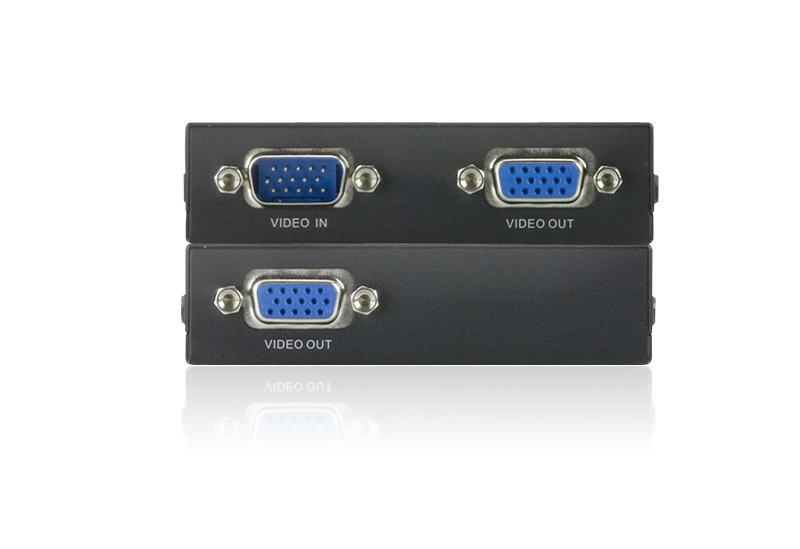

| VGA (D-Sub) input ports | 1 |
| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 1 W |
| Power consumption (receiver) (max) | 1.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 970 g |
| Receiver dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 240 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.11 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
| Mounting kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.92 kg |
| Master (outer) case net weight | 4.85 kg |
| Products per master (outer) case | 5 pc(s) |
