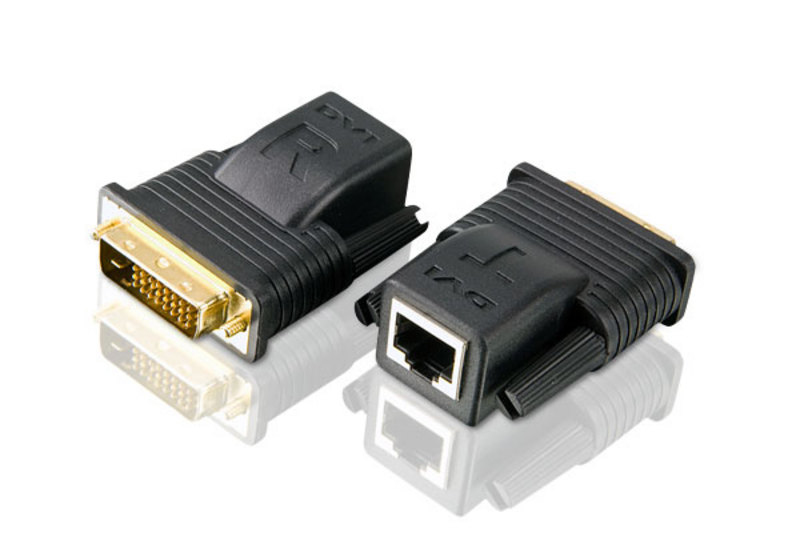

Mini DVI Over Cat5e/6 Video Extender (20m)
Model VE066-ATEAN 4710423776531
36 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight96 g
- ColourBlack
- Operating relative humidity (H-H)0 - 80%
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 96 g
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Compliance certificates
- RoHS
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE066-AT
- Part number
- VE066-AT
- EAN / UPC
- 4710423776531, 044111611434, 151903622650, 163121461218 +11 more
- Also known as
- ATEN Mini DVI Over Cat5e/6 Video Extender (20m)
Specifications
36 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 20 m |
| Bandwidth | 165 MHz |
| Bandwidth | 4.95 Gbit/s |
| HDCP | Yes |
| Impedance | 100 Ω |
| Material | Plastic |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| DVI input ports | 1 |
| DVI output ports | 1 |
| Video in | 1 x DVI-D |
| Video out | 1 x DVI-D |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 96 g |
| Receiver dimensions (WxDxH) | 56.6 x 40.7 x 21.5 mm |
| Receiver weight | 50 g |
| Transmitter dimensions (WxDxH) | 56.6 x 40.7 x 21.5 mm |
| Transmitter weight | 50 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package width | 38 mm |
| Package depth | 107 mm |
| Package height | 196 mm |
| Package weight | 158 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 225 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 3.93 kg |
| Master (outer) case net weight | 1.92 kg |
| Products per master (outer) case | 20 pc(s) |
