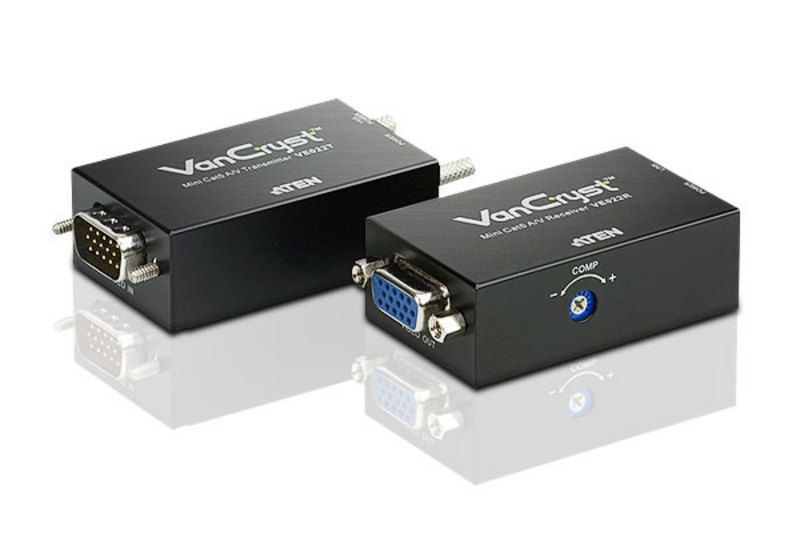

Mini VGA Audio/Video Over Cat5e/6 Extender (150m)
Model VE022-AT-GEAN 001910668786
47 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight284 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 284 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VE022-AT-G
- Part number
- VE022-AT-G
- EAN / UPC
- 001910668786, 4710423777408
- Also known as
- ATEN Mini VGA Audio/Video Over Cat5e/6 Extender (150m)
Specifications
47 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Mono |
| Bandwidth | 300 MHz |
| Impedance | 75 Ω |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| VGA (D-Sub) output ports | 1 |
| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
| Audio input | 1 x Mini Stereo |
| Audio output | 1 x Mini Stereo |
| VGA (D-Sub) ports quantity | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (max) | 0.88 W |
| Power consumption (transmitter) (max) | 0.44 W |
| Power consumption (receiver) (max) | 0.88 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 284 g |
| Receiver dimensions (WxDxH) | 64.2 x 35.3 x 20.6 mm |
| Receiver weight | 50 g |
| Transmitter dimensions (WxDxH) | 73.4 x 35.3 x 20.6 mm |
| Transmitter weight | 50 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 470 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Audio (3.5mm), DC, USB, VGA |
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 10 kg |
| Master (outer) case net weight | 5.68 kg |
| Products per master (outer) case | 20 pc(s) |
