ATEN VE022

ATEN VE022

Model VE022EAN 672792002731

35 specifications
  • TypeAV transmitter & receiver
  • ColourBlack
  • VGA (D-Sub) output ports1
  • Operating voltage5 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)64.2 x 35.3 x 20.6 mm
See all specifications

Overview

Type
AV transmitter & receiver
Colour
Black
VGA (D-Sub) output ports
1
Operating voltage
5 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
64.2 x 35.3 x 20.6 mm
Brand
ATEN
Category
AV Extender
Model
VE022
Part number
VE022
EAN / UPC
672792002731, 5054533334298, 6727920027316
Also known as
ATEN AT-VE022

Specifications

35 specifications in 7 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance150 m
Maximum refresh rate60 Hz
Audio systemMono
Bandwidth300 MHz
Impedance75 Ω
Supported graphics resolutions1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Product colourBlack

Ports & interfaces

VGA (D-Sub) output ports1

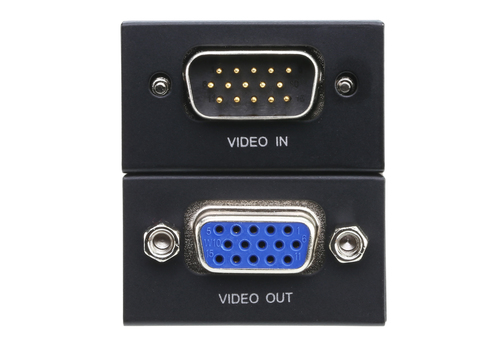

Video in1 x HDB-15 Male (Black)
Video out1 x HDB-15 Female (Blue)

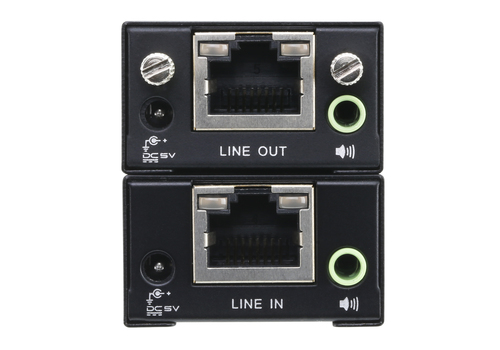

Audio input1 x Mini Stereo Jack Female (Green)
Audio output1 x Mini Stereo Jack Female (Green)
VGA (D-Sub) ports quantity2
DC-in jackYes

Power

Operating voltage5 V
Operating voltage (transmitter)5 V
Operating voltage (receiver)5 V
Power consumption (max)0.88 W
Power consumption (transmitter) (max)0.44 W
Power consumption (receiver) (max)0.88 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)64.2 x 35.3 x 20.6 mm
Receiver weight50 g
Transmitter dimensions (WxDxH)73.4 x 35.3 x 20.6 mm
Transmitter weight50 g

Packaging content

AC adapter includedYes
Cables includedAudio (3.5mm), DC, USB, VGA
ManualYes
Mounting kitYes

Technical details

Compliance certificatesRoHS
