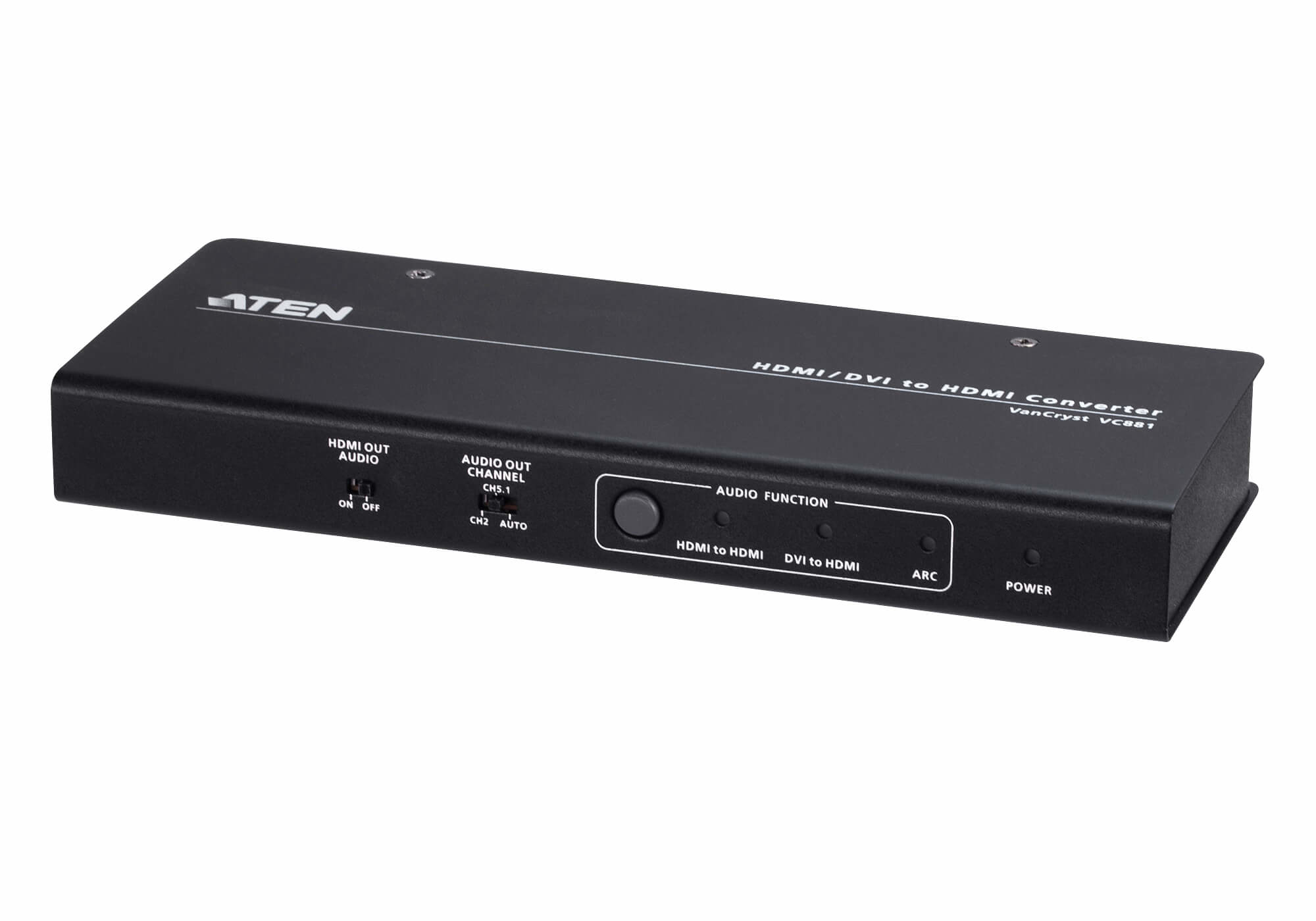

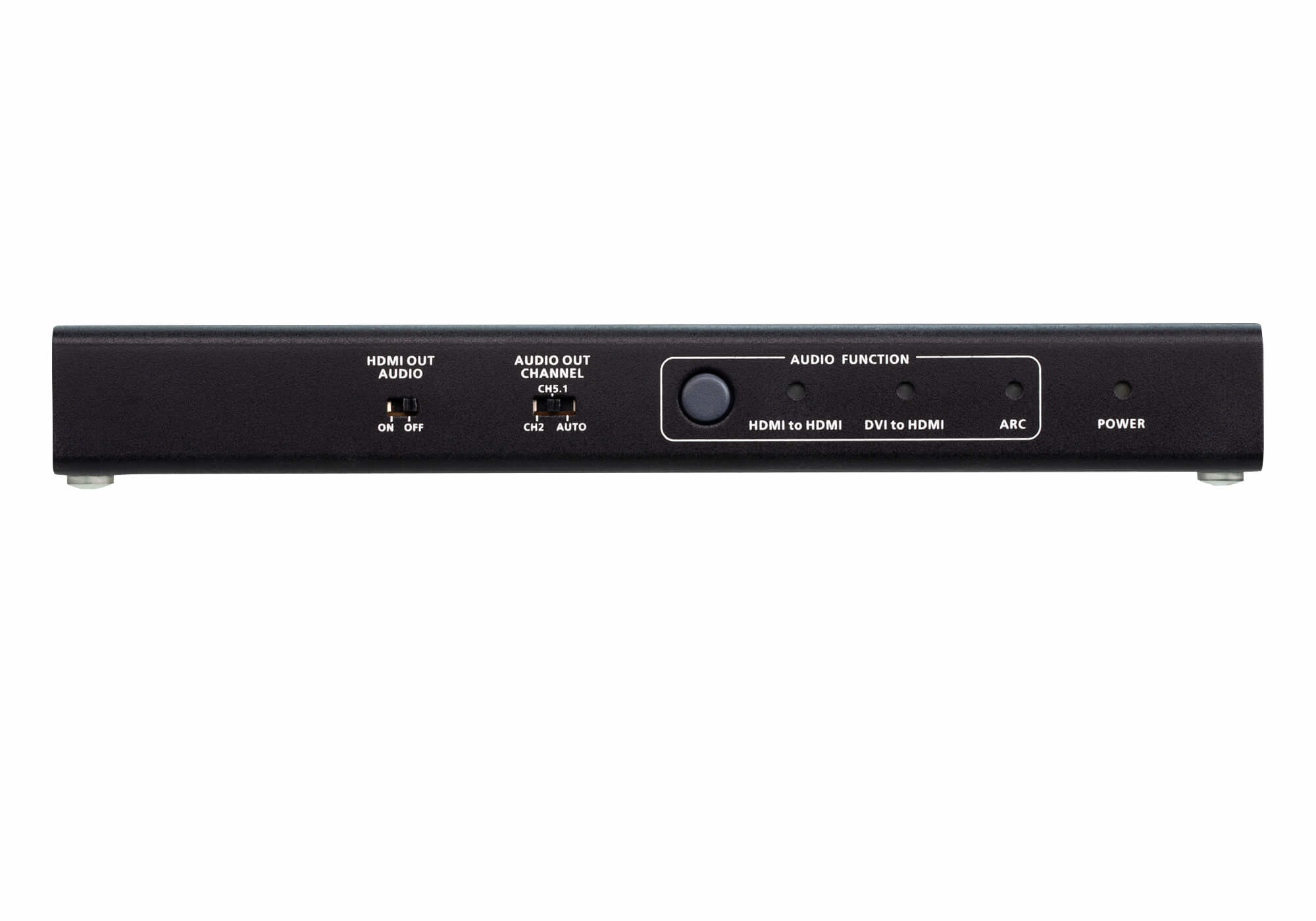

VC881-AT-E AV extender AV repeater Black
Model VC881-AT-E
36 specifications
- ConnectivityWired
- TypeAV repeater
- Weight570 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV repeater
- Weight
- 570 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VC881-AT-E
- Part number
- VC881-AT-E
- Also known as
- ATEN VC881-AT-E AV extender AV repeater Black
Specifications
36 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 3 m |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Control type | Buttons |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| Impedance | 100 Ω |
| LED indicators | Power |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Product colour | Black |

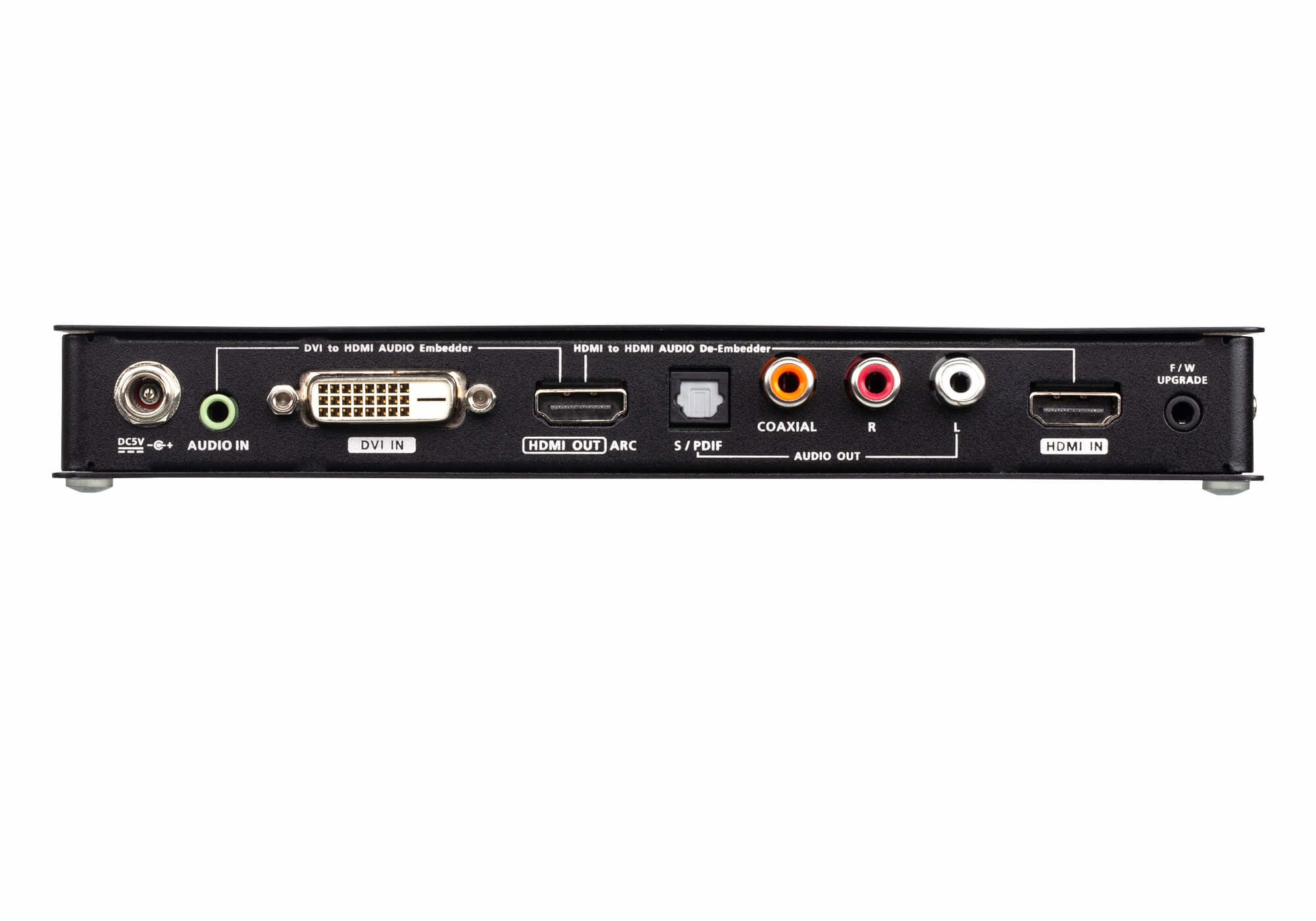

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| DVI input ports | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| Audio input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 1.767 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202 mm |
| Depth | 84.9 mm |
| Height | 25 mm |
| Weight | 570 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
