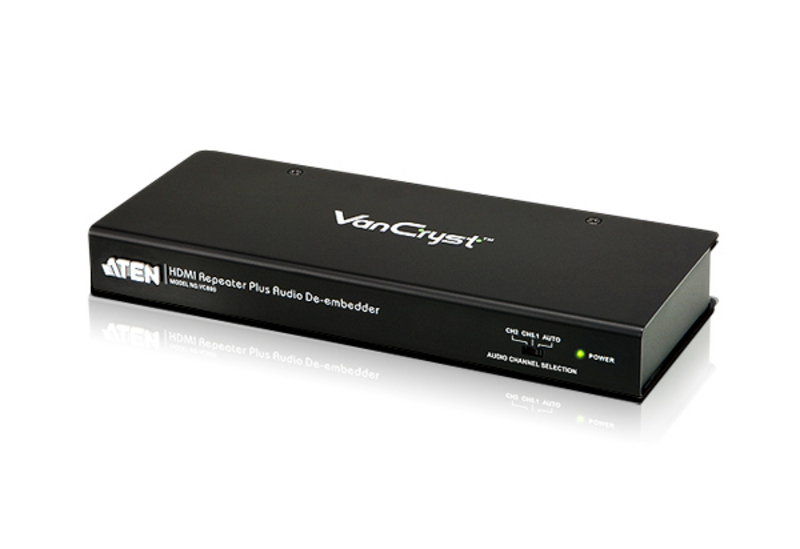

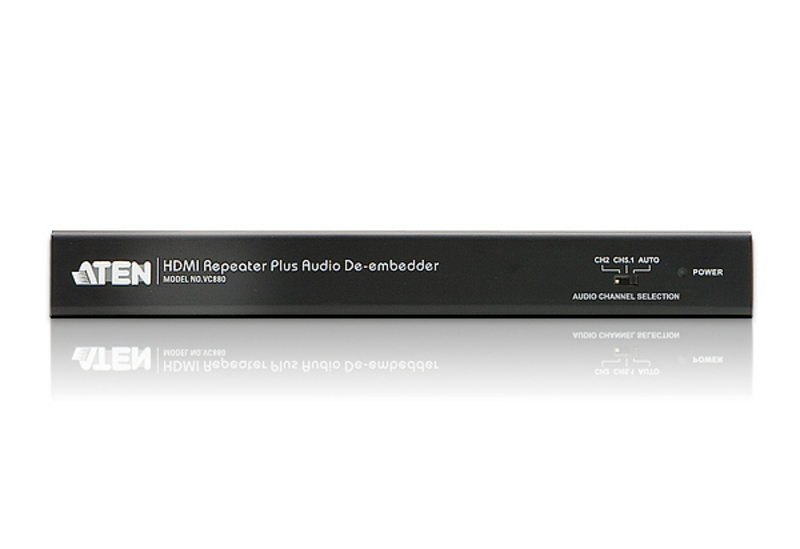

VC880-AT-U AV repeater Black
Model VC880-AT-UPart no. VC880-A7-G
34 specifications
- ConnectivityWired
- TypeAV repeater
- Weight520 g
- ColourBlack
- Operating voltage5.3 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV repeater
- Weight
- 520 g
- Colour
- Black
- Operating voltage
- 5.3 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VC880-AT-U
- Part numbers
- VC880-A7-G, VC880-AT-U
- Also known as
- ATEN VC880-AT-U AV repeater Black
Specifications
34 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 15 m |
| Maximum refresh rate | 60 Hz |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 1.1 |
| Impedance | 100 Ω |
| Material | Metal |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Product colour | Black |

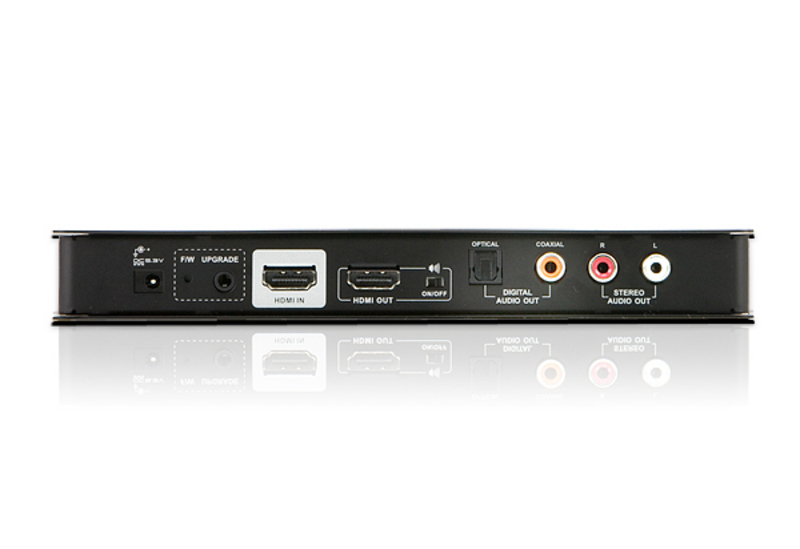

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5.3 V |
| Power consumption (typical) | 2.25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 82 mm |
| Height | 25 mm |
| Weight | 520 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
