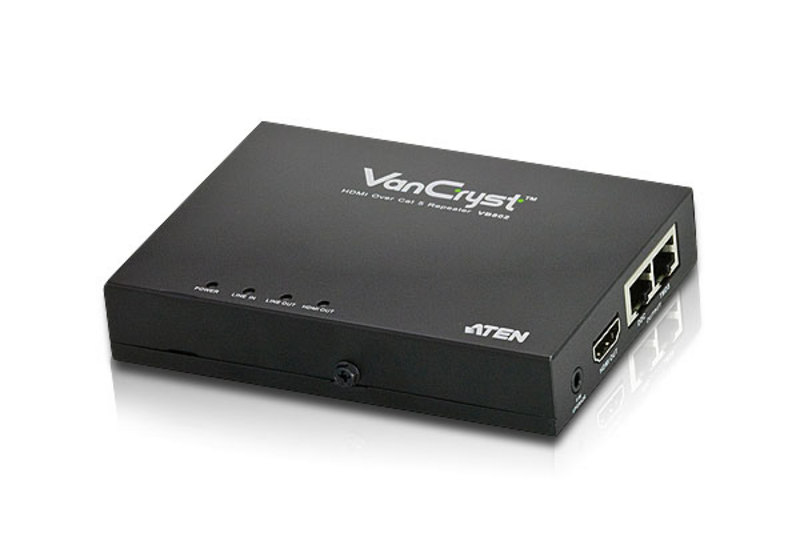

ATEN VB802 AV repeater Black

ATEN VB802 AV repeater Black

Model VB802EAN 6727920031344

37 specifications
  • ConnectivityWired
  • TypeAV repeater
  • Weight250 g
  • ColourBlack
  • Power source typeAC
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV repeater
Weight
250 g
Colour
Black
Power source type
AC
Operating relative humidity (H-H)
0 - 80%
Brand
ATEN
Category
AV Extender
Model
VB802
Part numbers
VB802, VB802-AT-G
EAN / UPC
6727920031344, 672792003134, 4710423775923, 5054484209416 +1 more
Also known as
ATEN VB802 AV repeater Black

Specifications

37 specifications in 8 groups

Features

TypeAV repeater
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5
Maximum transfer distance60 m
LED indicatorsYes
MaterialMetal
Supported video modes1080i, 1080p
Product colourBlack
CertificationHDMI, ROHS, Weee
Compatible productsVE800A, VE800AR, VS1804T, VS1808T, 2L-2901, 2L-2801, 2L-7D02H-1, 2L-7D03H, 2L-7D05H, 2L-7D10H, 2L-7D15H, 2L-7D20H, 2L-7D02H, VE-RMK1U, VE7832, VE7833, VE7834, VE7835, 2L-7DA3H, 2L-7DA6H, 2L-7D01H, 2L-7D05H-1, VE781010, VE781020, VE781030

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports2
RJ-45 output ports2
Number of HDMI outputs1
DC-in jackYes

Power

Power source typeAC
External power adapterYes

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width90.4 mm
Depth123 mm
Height22.6 mm
Weight250 g

Packaging data

Quantity per pack1 pc(s)
Package width59 mm
Package depth239 mm
Package height160 mm
Package typeBox

Packaging content

AC adapter includedYes
Quick start guideYes
Mounting kitYes

Logistics data

Master (outer) case width315 mm
Master (outer) case length490 mm
Master (outer) case height338 mm
Master (outer) case gross weight13.1 kg
Master (outer) case net weight9.2 kg
