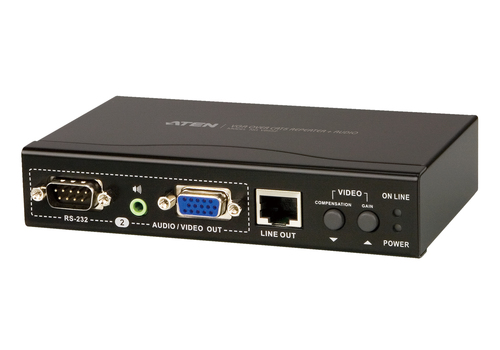

VB552-AT-U AV extender AV receiver Black
Model VB552-AT-U
35 specifications
- ConnectivityWired
- TypeAV receiver
- Weight350 g
- ColourBlack
- Operating voltage5.3 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 350 g
- Colour
- Black
- Operating voltage
- 5.3 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VB552-AT-U
- Part number
- VB552-AT-U
- Also known as
- ATEN VB552-AT-U AV extender AV receiver Black
Specifications
35 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 300 MHz |
| Control type | Buttons |
| Impedance | 75 Ω |
| LED indicators | Yes |
| Material | Metal |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200, 1920 x 1200 (WUXGA) |
| Product colour | Black |

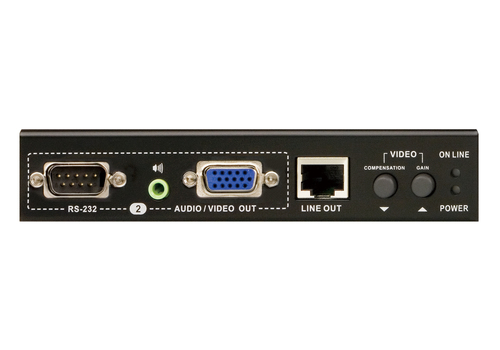

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| VGA (D-Sub) output ports | 2 |
| RS-232 output ports | 2 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5.3 V |
| Operating voltage (receiver) | 4.92 V |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 88 mm |
| Height | 28.6 mm |
| Weight | 350 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
