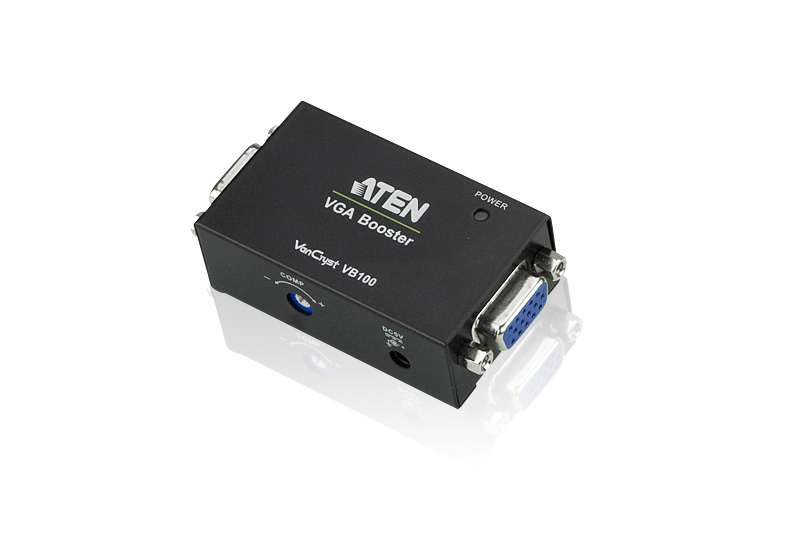

VB100-AT-G AV extender AV transmitter Black
Model VB100-AT-G
37 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight130 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 130 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- VB100-AT-G
- Part number
- VB100-AT-G
- Also known as
- ATEN VB100-AT-G AV extender AV transmitter Black
Specifications
37 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 300 MHz |
| Impedance | 75 Ω |
| Material | Metal |
| Plug and Play | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| VGA (D-Sub) output ports | 1 |

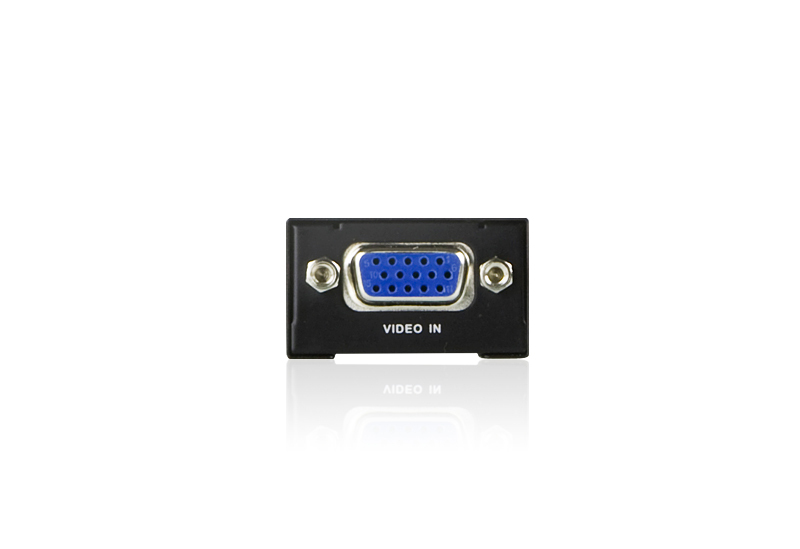

| Video in | 1 x HDB-15 |

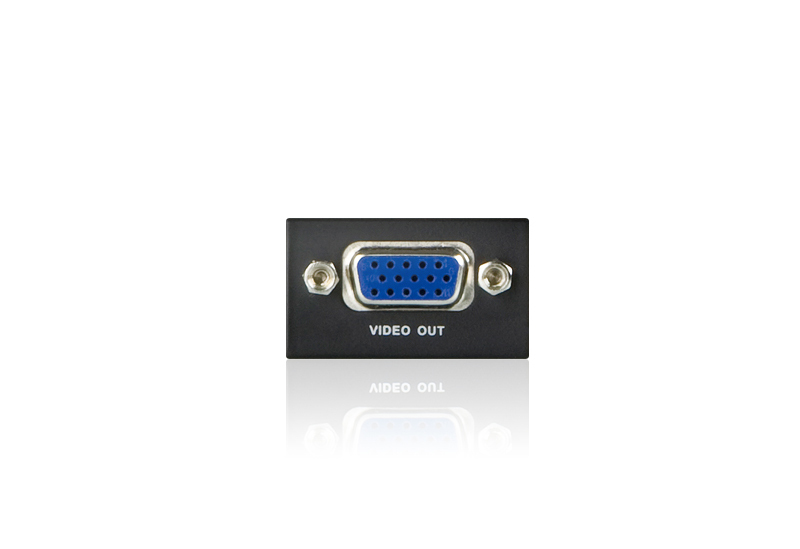

| Video out | 1 x HDB-15 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Operating voltage (transmitter) | 5 V |
| Power consumption (transmitter) (max) | 0.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 130 g |
| Transmitter dimensions (WxDxH) | 35.3 x 68.8 x 20.6 mm |
| Transmitter weight | 60 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 2.6 kg |
| Master (outer) case net weight | 1.3 kg |
| Products per master (outer) case | 10 pc(s) |
