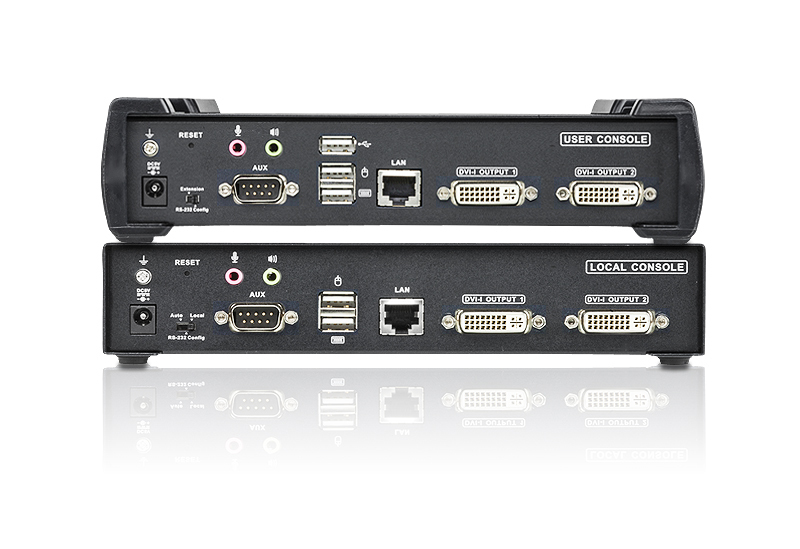

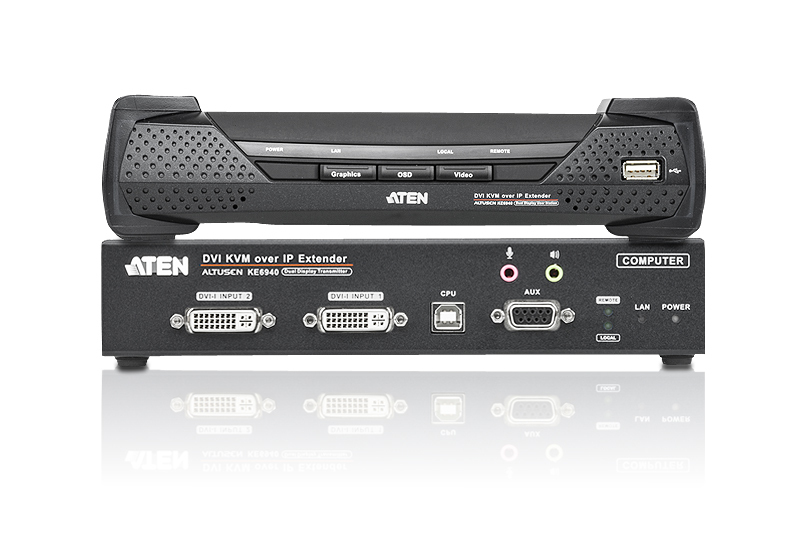

ATEN KE6940 AV transmitter & receiver Black
ATEN

KE6940 AV transmitter & receiver Black

Model KE6940Part no. KE6940-AX-GEAN 672792402623

43 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Operating voltage (transmitter)5 V
  • Operating relative humidity (H-H)0 - 95%
  • Receiver dimensions (WxDxH)215 x 162.9 x 45.6 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Operating voltage (transmitter)
5 V
Operating relative humidity (H-H)
0 - 95%
Receiver dimensions (WxDxH)
215 x 162.9 x 45.6 mm
Brand
ATEN
Category
AV Extender
Model
KE6940
Part number
KE6940-AX-G
EAN / UPC
672792402623, 881317512802, 4719264641664, 4719264649394
Also known as
ATEN KE6940 AV transmitter & receiver Black

Specifications

43 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
LED indicatorsYes
MaterialMetal
Product colourBlack
CompatibilityCS72D,CS1642A,CS1184,CS1782A,CS1784A,CM0264,CS1762A,CS1764A,CS1732B,CS1734B,KL1516Ai,CL6700,CM1164,CS1308,CS1732A,CE604,CS1734A,CS1708A,CS22D,CL5716,CS682,KN4140v,KL3116,2L-7D02UI,CE750,2L-7D03UI,2L-7D02I,2L-7D02U,CCKM,2L-7D03U,CS62U,2L-7D05U,UC10KM,CL5716M,CL5716N,2X-021G,2X-031G,2L-7DX2U,2L-7DX3U,

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports2
DVI input ports2
DVI output ports4
USB ports quantity6
USB version2.0
USB connector typeUSB Type-A, USB Type-B
Audio input2
Audio output2
Serial interface typeRS-232
Serial ports quantity3
DC-in jackYes

Power

Operating voltage (transmitter)5 V
Operating voltage (receiver)5 V
Power consumption (transmitter) (max)8.91 W
Power consumption (receiver) (max)9.53 W

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)215 x 162.9 x 45.6 mm
Receiver weight1.15 kg
Transmitter dimensions (WxDxH)227.5 x 171.6 x 54.8 mm
Transmitter weight1.25 kg

Packaging data

Package width247 mm
Package depth556 mm
Package height153 mm
Package weight4.78 kg

Packaging content

AC adapter includedYes
Packaging content1x KE6940T DVI KVM Over IP Extender (Transmitter) 1x KE6940R DVI KVM Over IP Extender (Receiver) 2x 0AD8-8005-40MG Power Adapters 2x LIN2-418K-E12G Power Cord 1x 2L-7D02U USB DVI-D KVM Cable (1.8m) 1x LIN5-26W1-W11G DVI-D Cable (1.8m) 1x Foot Pad Set (4 pcs.) for KE6400T 1x Mounting Kit for KE6940T

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width247 mm
Master (outer) case length556 mm
Master (outer) case height153 mm
Master (outer) case gross weight4.78 kg
Master (outer) case net weight3.96 kg
Products per master (outer) case1 pc(s)
