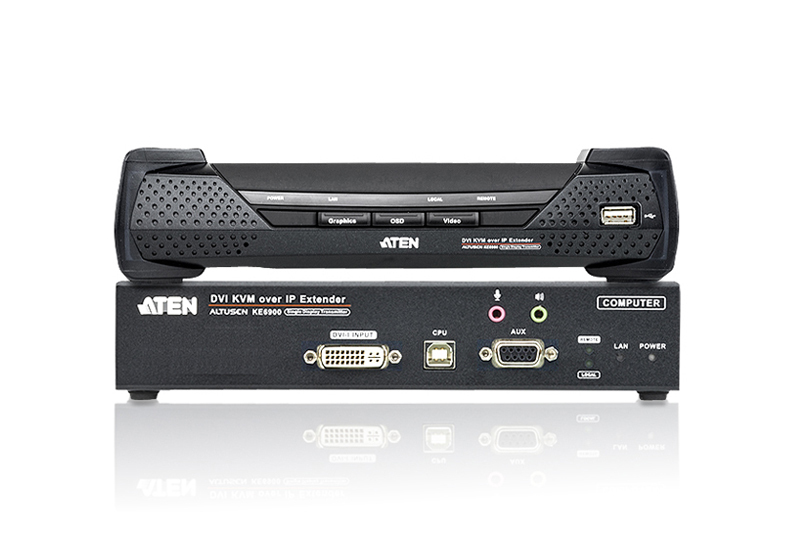

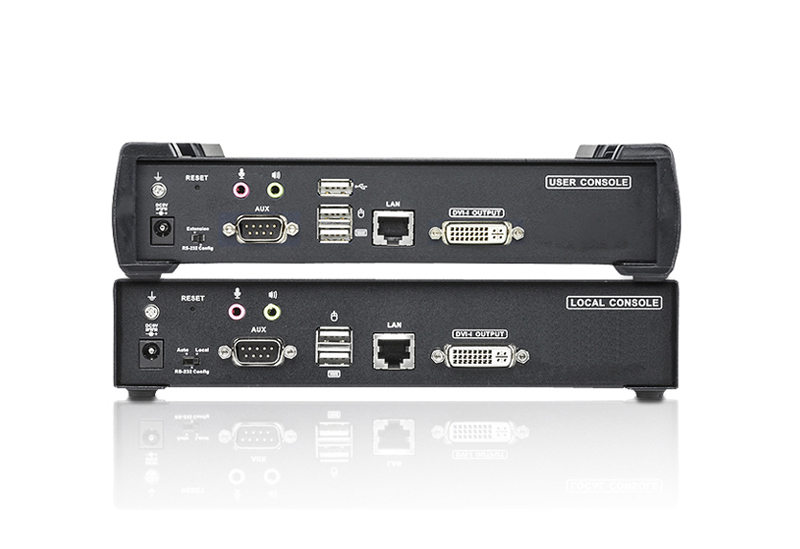

ATEN KE6900 AV transmitter & receiver Black
ATEN

KE6900 AV transmitter & receiver Black

Model KE6900Part no. KE6900-AX-GEAN 3578222669000

45 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • Operating voltage (transmitter)5 V
  • Operating relative humidity (H-H)0 - 95%
  • Receiver dimensions (WxDxH)227.5 x 171.6 x 54.8 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
Operating voltage (transmitter)
5 V
Operating relative humidity (H-H)
0 - 95%
Receiver dimensions (WxDxH)
227.5 x 171.6 x 54.8 mm
Brand
ATEN
Category
AV Extender
Model
KE6900
Part number
KE6900-AX-G
EAN / UPC
3578222669000, 672792402616, 881317512796, 4719264641657 +1 more
Also known as
ATEN KE6900 AV transmitter & receiver Black

Specifications

45 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
LED indicatorsYes
MaterialMetal
Product colourBlack
Compatible productsCS72D,CS1642A,CS1184,CS1782A,CS1784A,CM0264,CS1762A,CS1764A,CS1732B,CS1734B,KL1516Ai,CL6700,CM1164,CS1308,CS1732A,CE604,CS1734A,CS1708A,CS22D,CL5716,CS682,KN4140v,KL3116,2L-7D02UI,CE750,2L-7D03UI,2L-7D02U,CCKM,2L-7D03U,CS62U,2L-7D05U,UC10KM,CL5716M,CL5716N,2X-021G,2X-031G,2L-7DX2U,2L-7DX3U,ES0152,ES

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports2
DVI input ports1
DVI output ports2
USB ports quantity6
USB version2.0
USB connector typeUSB Type-A, USB Type-B
RS-232 input ports2
Audio input2
Audio output2
Serial interface typeRS-232
Serial ports quantity3
DC-in jackYes

Power

Operating voltage (transmitter)5 V
Operating voltage (receiver)5 V
Power consumption (transmitter) (max)7.34 W
Power consumption (receiver) (max)6.9 W

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)227.5 x 171.6 x 54.8 mm
Receiver weight1.25 kg
Transmitter dimensions (WxDxH)215 x 162.9 x 45.6 mm
Transmitter weight1.14 kg

Packaging data

Package width247 mm
Package depth556 mm
Package height153 mm
Package weight4.61 kg

Packaging content

AC adapter includedYes
Packaging content1x KE6900T DVI KVM Over IP Extender (Transmitter) 1x KE6900R DVI KVM Over IP Extender (Receiver) 2x 0AD8-8005-40MG Power Adapters 2x LIN2-418K-E12G Power Cord 1x 2L-7D02U USB DVI-D KVM Cable (1.8m) 1x Mounting Kit for KE6900T 1x Mounting Kit for KE6900T 1x User Instructions

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width247 mm
Master (outer) case length556 mm
Master (outer) case height153 mm
Master (outer) case gross weight4.61 kg
Master (outer) case net weight3.76 kg
Products per master (outer) case1 pc(s)
