ATEN Extender AV transmitter & receiver Black
Model ExtenderPart no. VE814-AT-EEAN 4710423778832
26 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight460 g
- ColourBlack
- Operating voltage5.3 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 460 g
- Colour
- Black
- Operating voltage
- 5.3 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- ATEN
- Category
- AV Extender
- Model
- Extender
- Part number
- VE814-AT-E
- EAN / UPC
- 4710423778832
- Also known as
- ATEN Extender AV transmitter & receiver Black
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| Impedance | 100 Ω |
| LED indicators | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 2 |
| RS-232 input ports | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5.3 V |
| Power consumption (typical) | 13.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 141.7 mm |
| Depth | 103 mm |
| Height | 30 mm |
| Weight | 460 g |
Reviews
No reviews of ATEN Extender AV transmitter & receiver Black yet. Have you used it? Tell others what you think.
Write a reviewCompare ATEN Extender AV transmitter & receiver Black
All av extender comparisons- ATEN Extender AV transmitter & receiver Black vsATEN VB802-AT-E AV extender AV repeater BlackCompare specs
- ATEN Extender AV transmitter & receiver Black vsATEN VB552-AT-E AV extender AV receiver BlackCompare specs
- ATEN Extender AV transmitter & receiver Black vsATEN VE500RQ-AT-E AV extender AV receiver BlackCompare specs

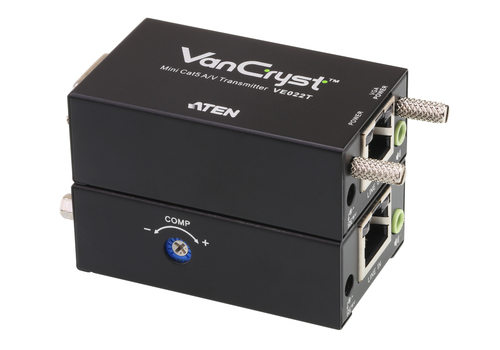

- ATEN Extender AV transmitter & receiver Black vsATEN AT-VE022Compare specs

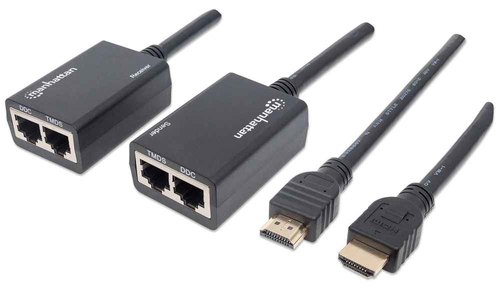

- ATEN Extender AV transmitter & receiver Black vsManhattan 1080p HDMI over Ethernet Extender with Integrated Cables, Distances up to 30m with 2x Cat5e or Cat6 Ethernet Cables (not included), Black, Three YearCompare specs
