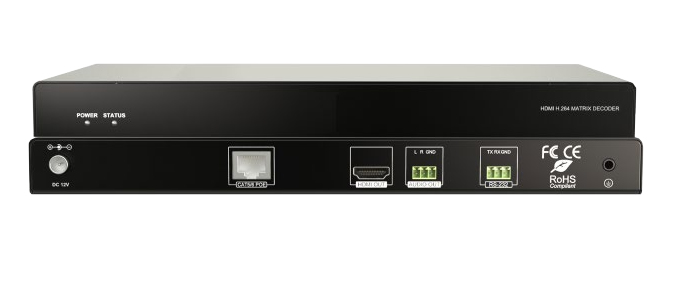

AG Neovo HVWCIP-R AV extender AV receiver Black

AG Neovo HVWCIP-R AV extender AV receiver Black

Model HVWCIP-REAN 4710739593587

32 specifications
  • ConnectivityWired
  • TypeAV receiver
  • ColourBlack
  • Operating voltage (receiver)12 V
  • Operating relative humidity (H-H)20 - 90%
  • Receiver dimensions (WxDxH)267 x 112 x 25 mm
See all specifications

Overview

Connectivity
Wired
Type
AV receiver
Colour
Black
Operating voltage (receiver)
12 V
Operating relative humidity (H-H)
20 - 90%
Receiver dimensions (WxDxH)
267 x 112 x 25 mm
Brand
AG Neovo
Category
AV Extender
Model
HVWCIP-R
Part number
HVWCIP-R
EAN / UPC
4710739593587
Also known as
AG Neovo HVWCIP-R AV extender AV receiver Black

Specifications

32 specifications in 8 groups

Features

TypeAV receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Electrostatic Discharge (ESD) protection8 kV
HDCPYes
LED indicatorsYes
Supported graphics resolutions800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480p, 576p, 720p, 1080p
Video compression formatsAVC, H.264, MPEG4
Product colourBlack
CertificationFC, CE

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
HDMI version1.3
Number of HDMI outputs1
RS-232 output ports1
3.5 mm (1/8-inch) inYes
DC-in jackYes

Power

Operating voltage (receiver)12 V
Output current1 A
Power consumption (max)6 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)267 x 112 x 25 mm
Receiver weight600 g

Packaging data

Package dimensions (WxDxH)310 x 76 x 180 mm

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176200
