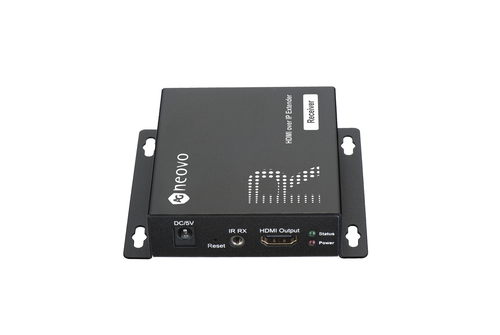

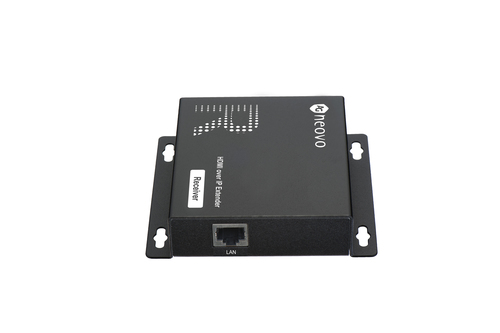

HIP-RA AV extender AV receiver Black
Model HIP-RAEAN 4710739595673
33 specifications
- ConnectivityWired
- TypeAV receiver
- Weight220 g
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)5 - 90%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 220 g
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- AG Neovo
- Category
- AV Extender
- Model
- HIP-RA
- Part number
- HIP-RA
- EAN / UPC
- 4710739595673
- Also known as
- AG Neovo HIP-RA AV extender AV receiver Black
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Infrared (IR) frequency range | 38 - 56 kHz |
| Bandwidth | 0.09 Gbit/s |
| HDCP | Yes |
| LED indicators | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 720 x 480, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080i, 480i, 1080p, 480p, 720p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI version | 1.2 |
| Number of HDMI outputs | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93.5 mm |
| Depth | 103.5 mm |
| Height | 24.6 mm |
| Weight | 220 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
