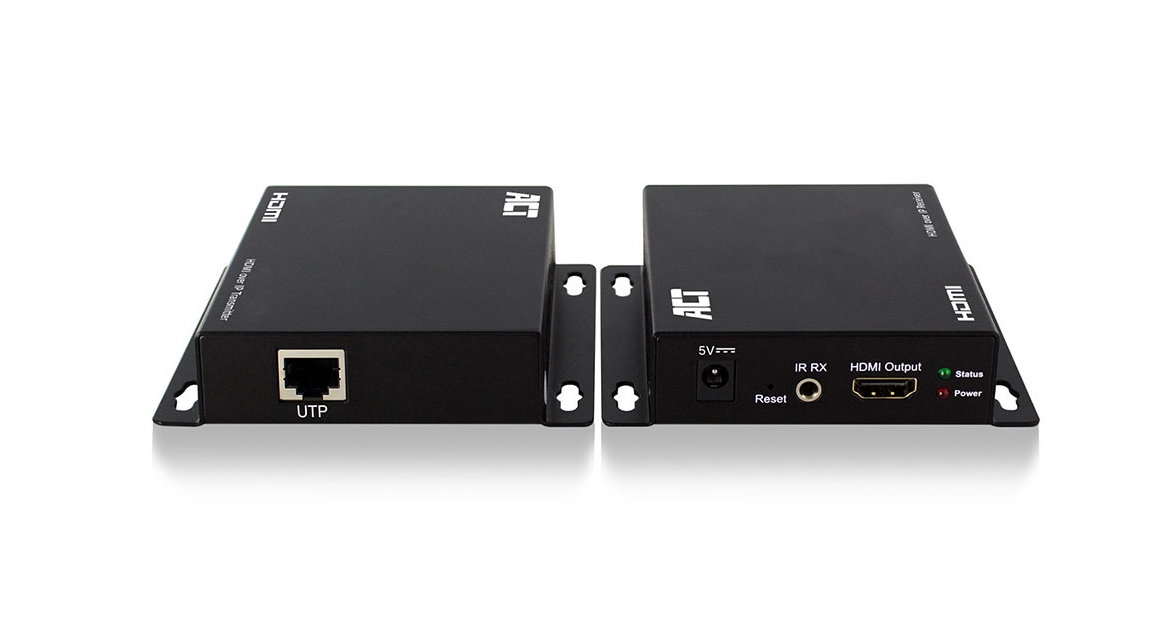

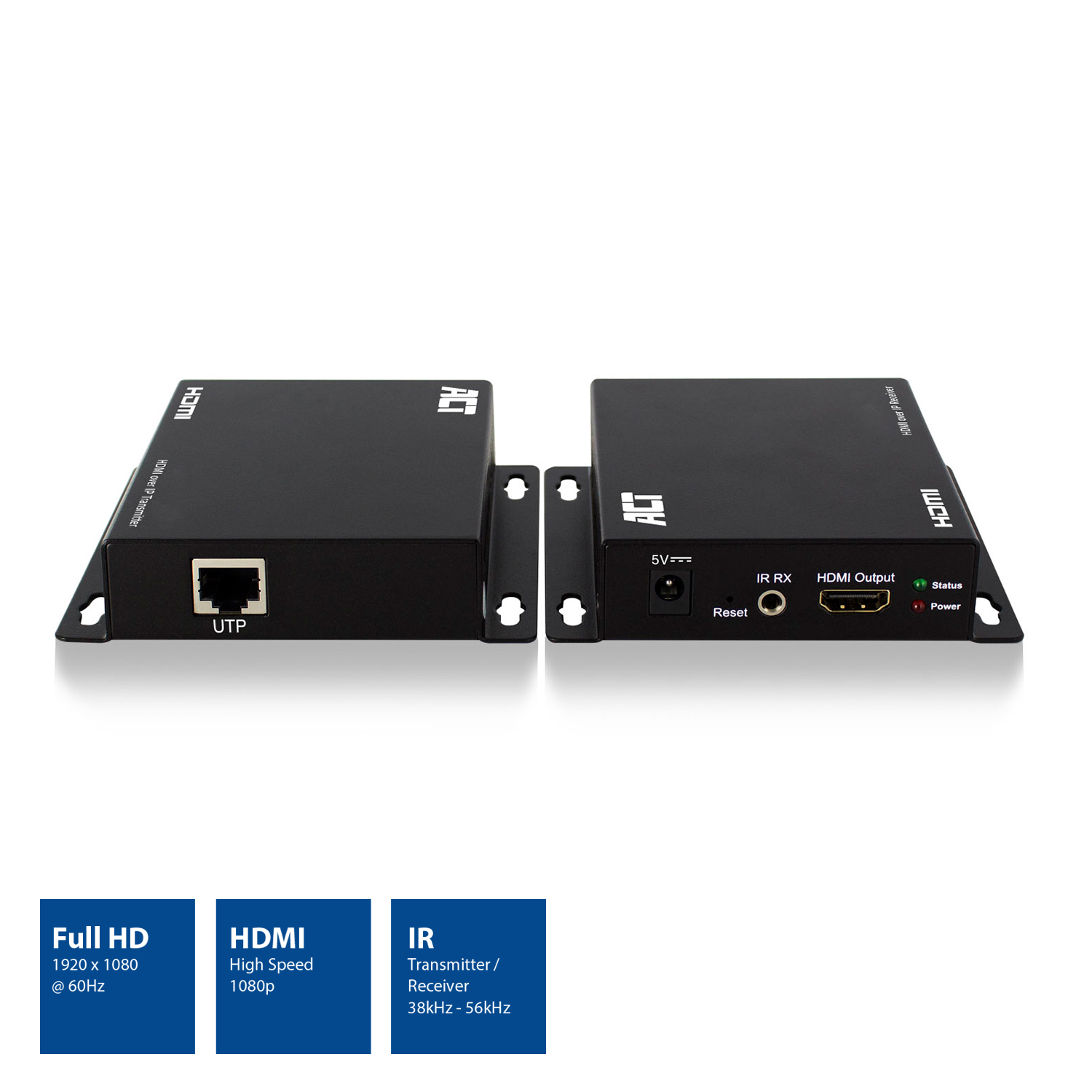

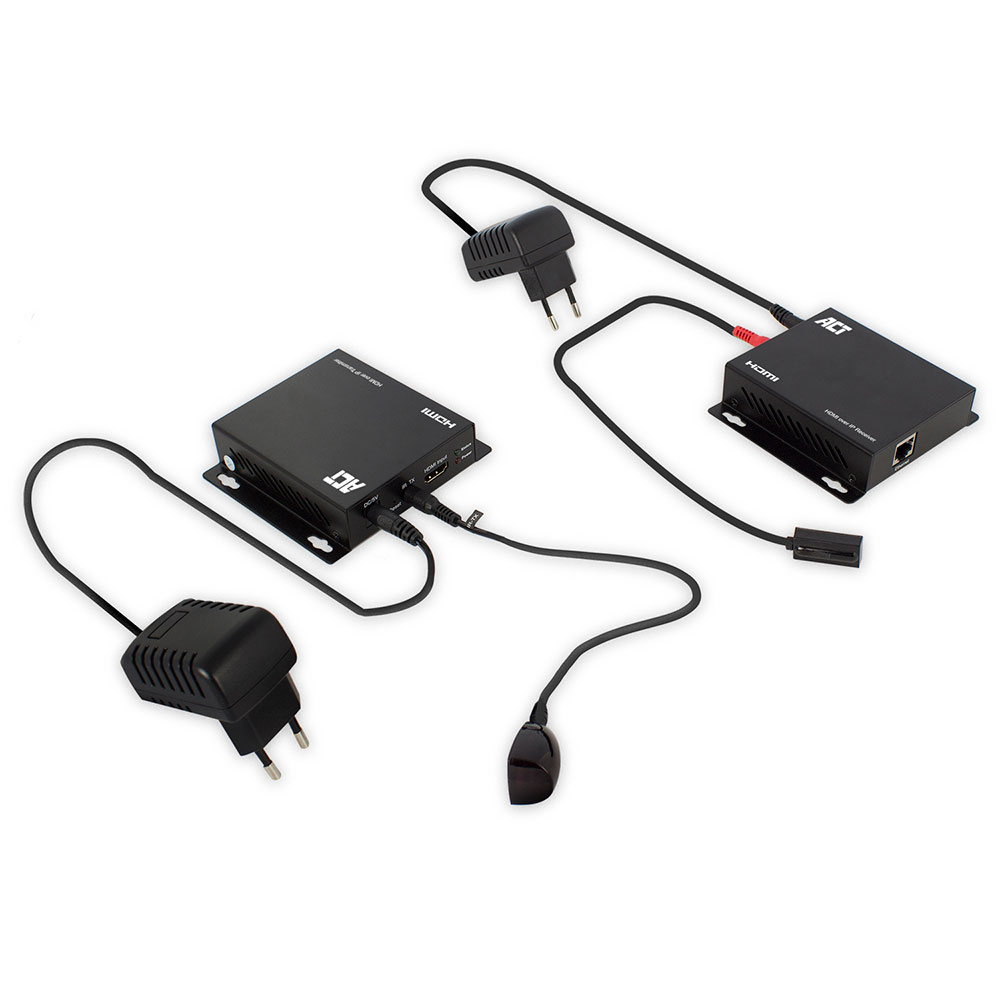

HDMI over IP extender set CATx up to 100 meter
Model AC7850EAN 8716065403541
31 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight800 g
- ColourBlack
- Operating voltage (receiver)5 V
- Width210 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 800 g
- Colour
- Black
- Operating voltage (receiver)
- 5 V
- Width
- 210 mm
- Brand
- ACT
- Category
- AV Extender
- Model
- AC7850
- Part number
- AC7850
- EAN / UPC
- 8716065403541
- Also known as
- ACT HDMI over IP extender set CATx up to 100 meter
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| LED indicators | Power, Status |
| Supported video modes | 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4a |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (receiver) | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 153 mm |
| Height | 100 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210 mm |
| Package depth | 100 mm |
| Package height | 153 mm |
| Package weight | 850 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, IR |
| Mounting brackets included | Yes |
