AC7810 HDMI extender set, single Cat6, 60 meter, 3D and IR support
Model AC7810EAN 8716065403503
23 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight630 g
- ColourBlack
- Operating voltage5 V
- Width212 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 630 g
- Colour
- Black
- Operating voltage
- 5 V
- Width
- 212 mm
- Brand
- ACT
- Category
- AV Extender
- Model
- AC7810
- Part number
- AC7810
- EAN / UPC
- 8716065403503
- Also known as
- ACT AC7810 HDMI extender set, single Cat6, 60 meter, 3D and IR support
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 60 m |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| HDCP | Yes |
| LED indicators | Power, Status |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |

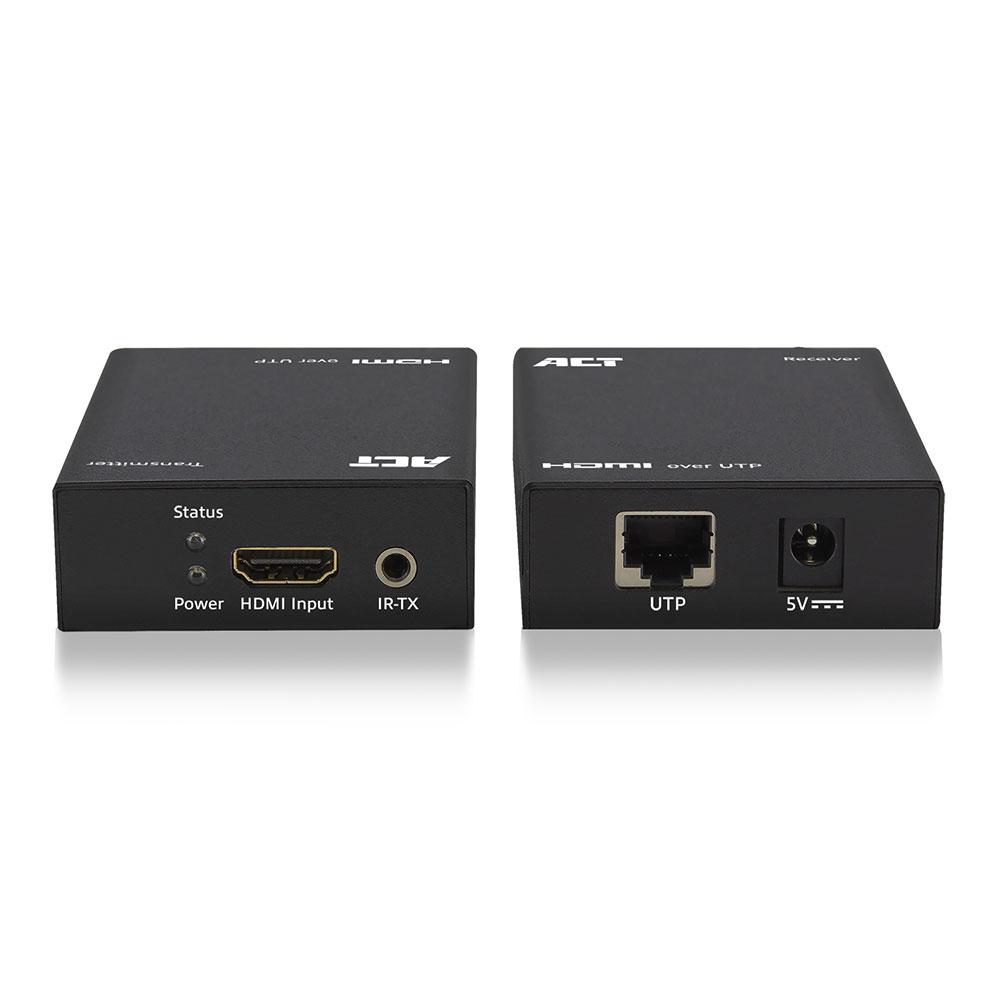

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4a |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 1 A |
| Power consumption (typical) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 181 mm |
| Height | 60 mm |
| Weight | 630 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
