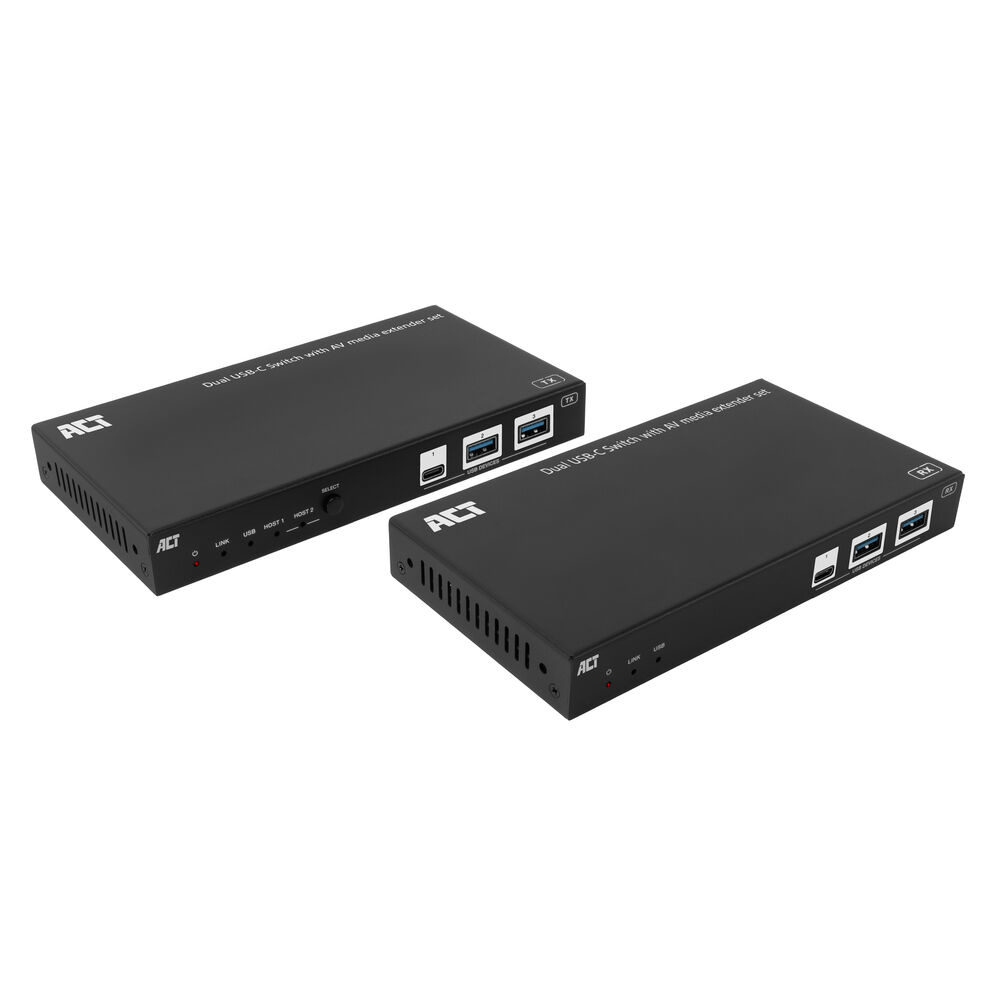

AV media extender set with dual USB-C switch, CAT6A, 100 meters
Model AC7110EAN 8716065598636
34 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeDC
- Receiver dimensions (WxDxH)180 x 95 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- DC
- Receiver dimensions (WxDxH)
- 180 x 95 x 23 mm
- Brand
- ACT
- Category
- AV Extender
- Model
- AC7110
- Part number
- AC7110
- EAN / UPC
- 8716065598636
- Also known as
- ACT AV media extender set with dual USB-C switch, CAT6A, 100 meters
Specifications
34 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6a |

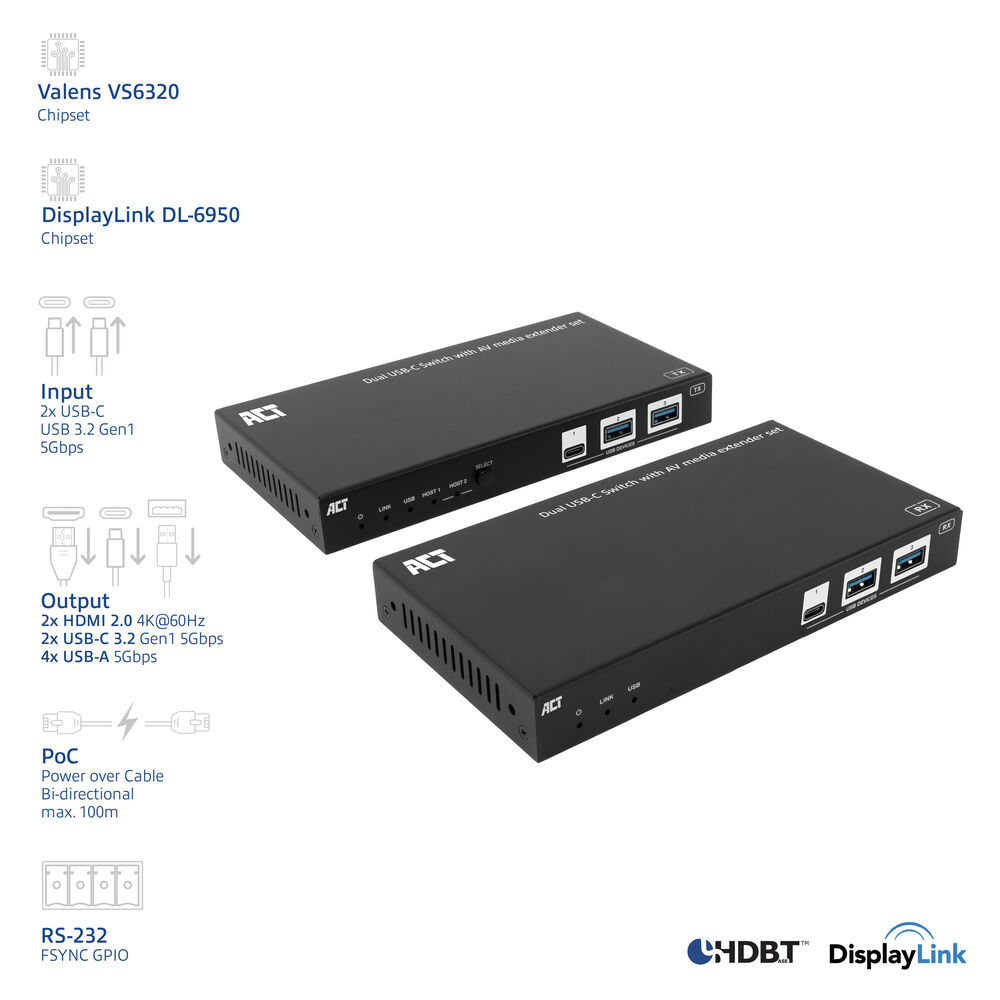

| Chipset | Valens VS6320, DisplayLink DL-6950 |
| Maximum transfer distance | 100 m |
| Extended display identification data (EDID) | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |

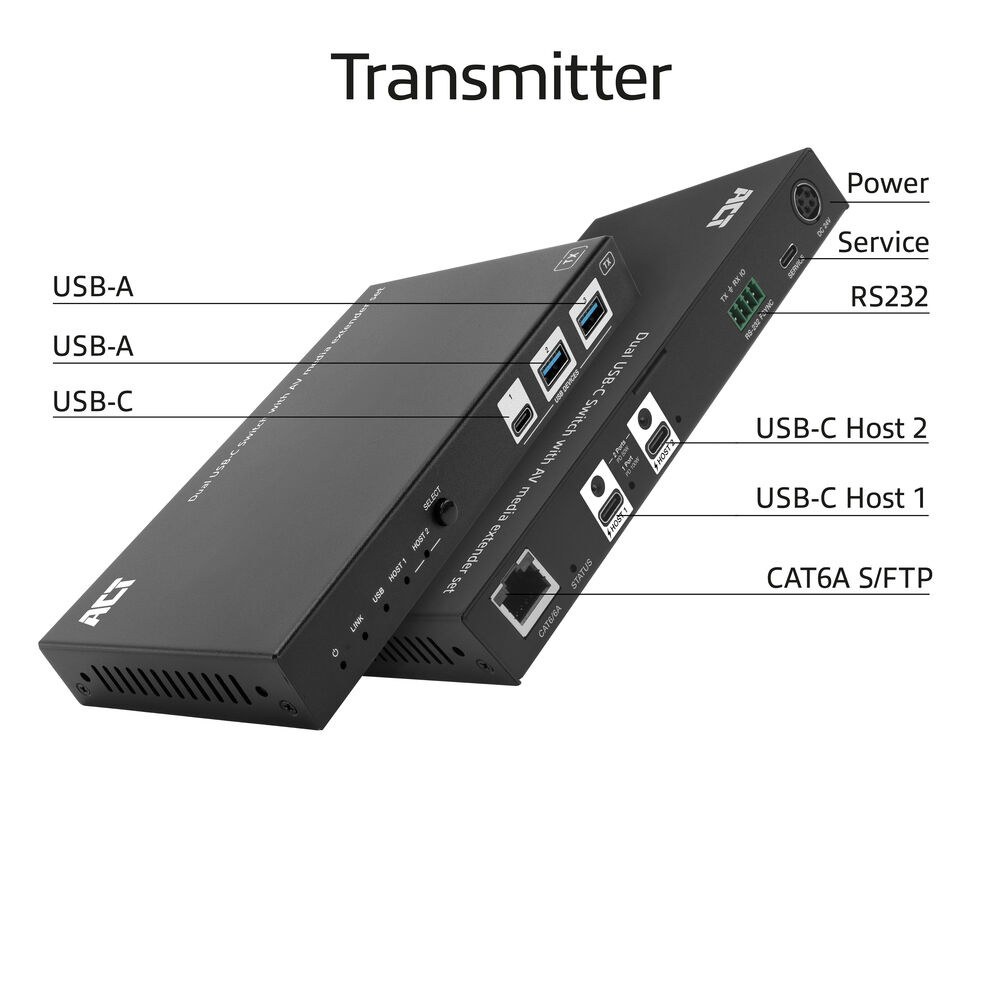

| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| Number of HDMI outputs | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| DC-in jack | Yes |

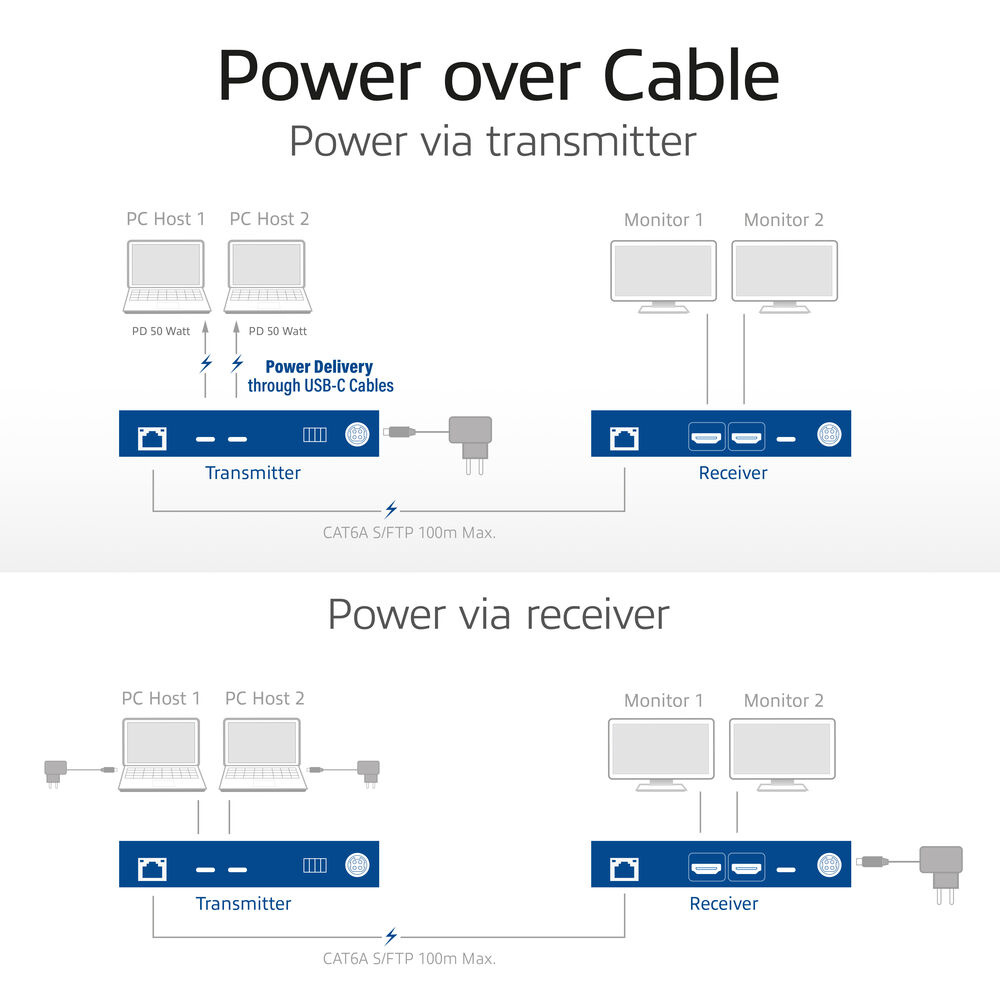

Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 24 V |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |

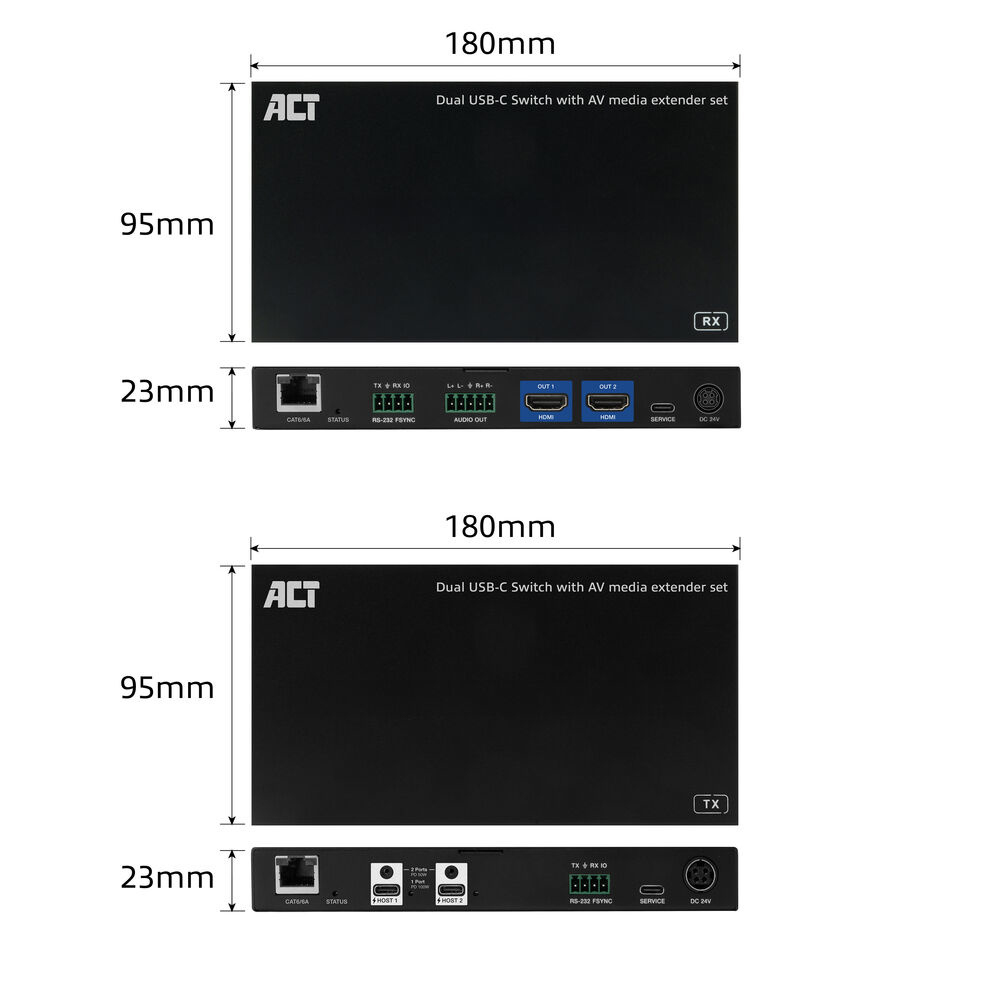

Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 180 x 95 x 23 mm |
| Transmitter dimensions (WxDxH) | 180 x 95 x 23 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |

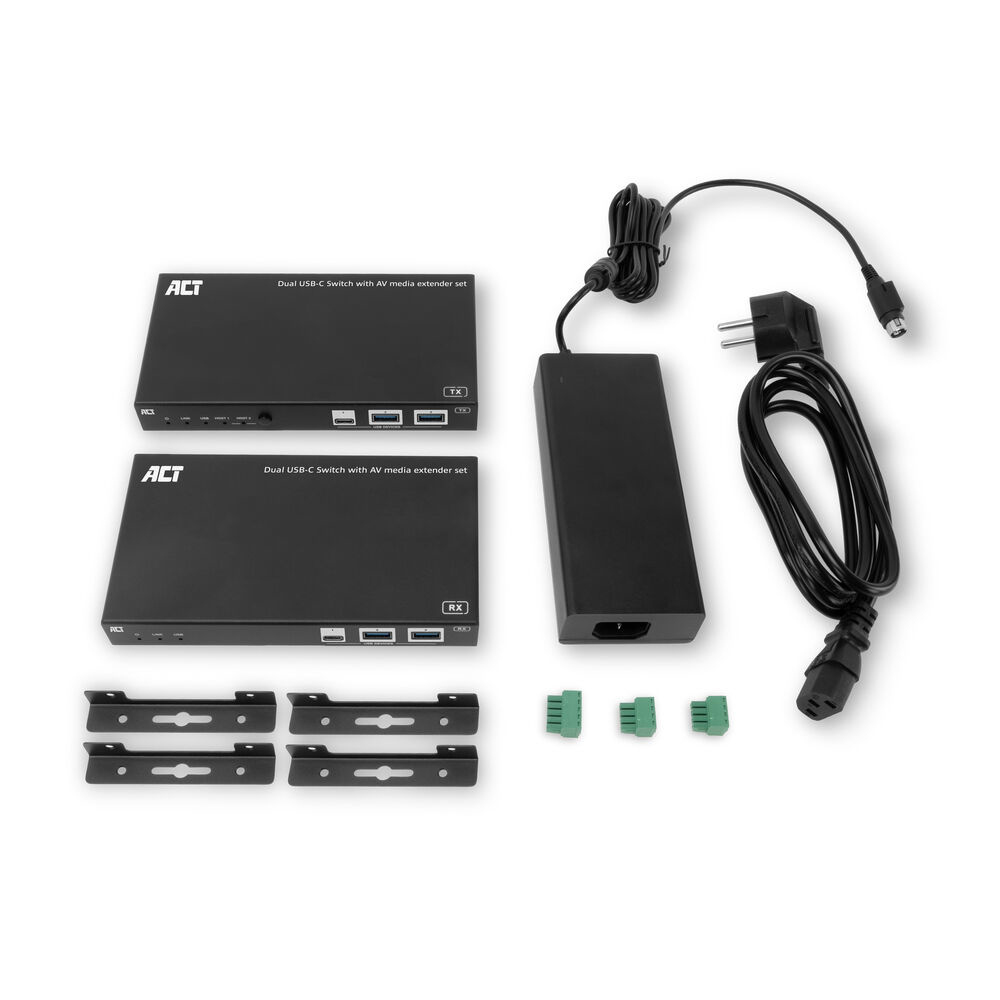

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
