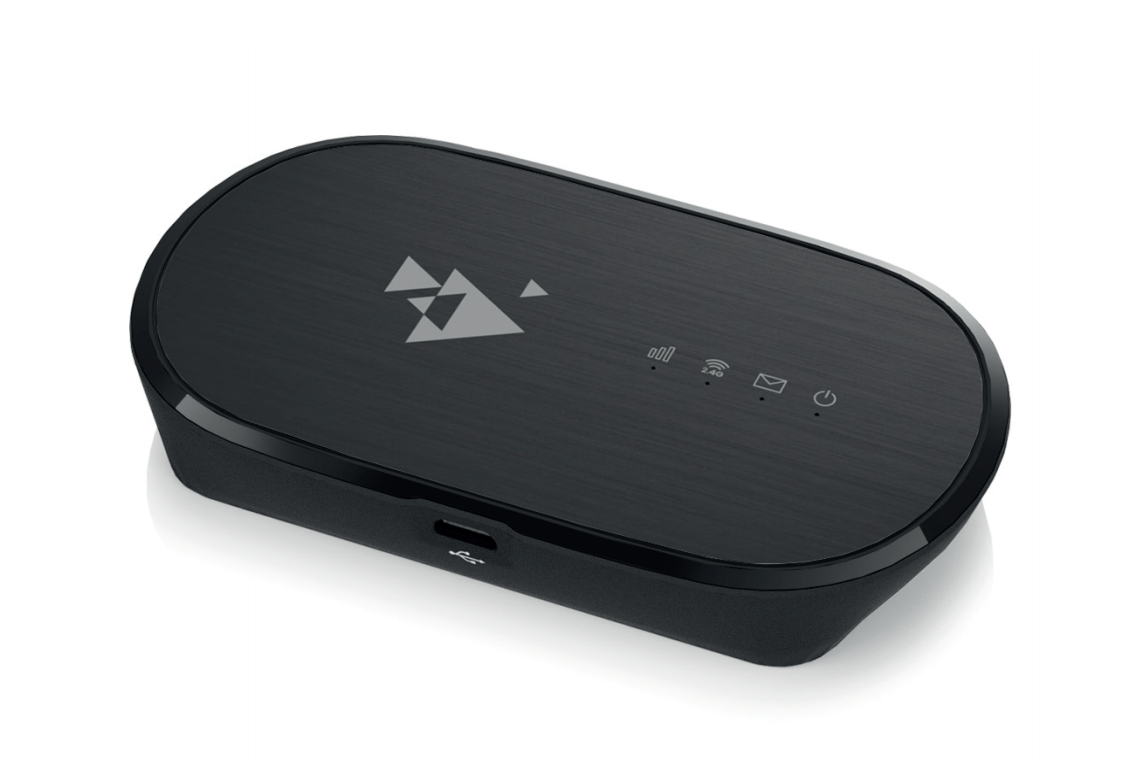

WAH7601 wireless router Single-band (2.4 GHz)
4G Black
Model WAH7601Part no. WAH7601-TR01V1F
45 specifications
- Battery2000 mAh
- SpeedWi-Fi 4 (802.11n)
- TypePortable router
- Weight130 g
- ColourBlack
- Ethernet WANNo
Overview
- Battery
- 2000 mAh
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Portable router
- Weight
- 130 g
- Colour
- Black
- Ethernet WAN
- No
- Brand
- Zyxel
- Category
- Wireless Router
- Model
- WAH7601
- Part number
- WAH7601-TR01V1F
- Also known as
- Zyxel WAH7601 wireless router Single-band (2.4 GHz) 4G Black
Specifications
45 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | No |
| DSL WAN | No |
| SIM card slot | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| VPN Passthrough | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 2G standards | Edge, GPRS, GSM |
| 3G standards | DC-HSDPA, HSPA+, UMTS |
| 4G standard | LTE |
| Short Message Service (SMS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 0 |
| USB port | Yes |
| USB charging port | Yes |
| Memory card slot(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Firewall | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Portable router |
| Product colour | Black |
| LED indicators | LTE, WLAN |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 2000 mAh |
Certificates
| Specification | Value |
|---|---|
| Certification | Rohs, CE, WEEE |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | Battery, DC |
| Battery voltage | 3.7 V |
| Battery life (max) | 8 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 66.5 mm |
| Height | 17.5 mm |
| Weight | 130 g |
| Width | 120 mm |
