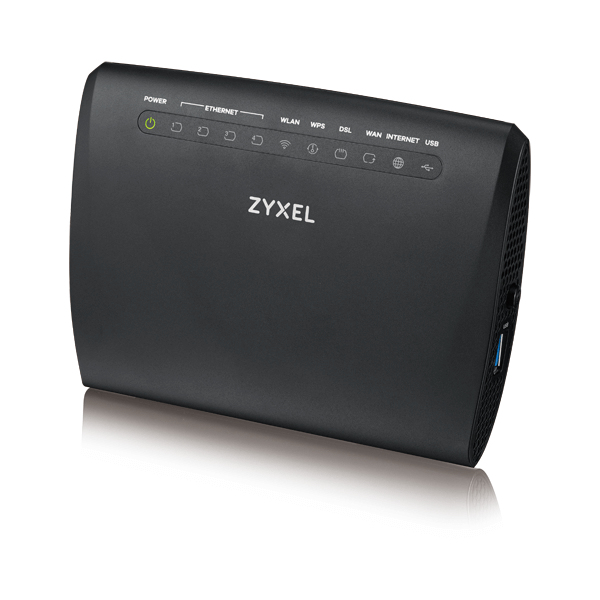

Zyxel VMG3312-T20A wireless router Fast Ethernet Single-band (2.4 GHz) Black

Model VMG3312-T20APart no. VMG3312-T20A-CZ01V1FEAN 4718937594481

79 specifications

SpeedWi-Fi 4 (802.11n)
TypePortable router
Weight220 g
ColourBlack
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Portable router
Weight: 220 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)

Brand: Zyxel
Category: Wireless Router
Model: VMG3312-T20A
Part numbers: VMG3312-T20A-CZ01V1F, VMG3312-T20A-EU01V1F
EAN / UPC: 4718937594481
Also known as: Zyxel VMG3312-T20A wireless router Fast Ethernet Single-band (2.4 GHz) Black

Specifications

79 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Flow control support	Yes
Port forwarding	Yes
Supports ISDN connection	Yes
USB sharing	Yes
Wireless Distribution System (WDS) bridge	Yes

Mobile network

Specification	Value
3G	Yes
4G	No
5G	No

DSL features

Specification	Value
ADSL	Yes
VDSL	Yes
DSL specification	TR-069, TR-098, TR-181 issue-2, TR-064, TR-111

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
RJ-11 ports quantity	1

Management features

Specification	Value
Web-based management	Yes
Bandwidth control	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, AES, SNMP, SNMPv2, SNMPv3, SSH, SSID, TKIP, WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPS
Firewall	Yes
Access Control List (ACL)	Yes
Firewall security	IPv4/IPv6
Schedule access	Yes
DoS attack prevention	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Routing protocols	IP
Management protocols	Web/HTTP, CLI, SSH, Web/TFTP/FTP/TR069 RPC, XML ,
VoIP protocols	TCP/UDP/ICMP/IGMP/User defined

Design

Specification	Value
Product type	Portable router
Product colour	Black
Housing material	Plastic
Wall mountable	Yes
Indication light	Yes
LED indicators	ADSL, Activity, DSL, Link, Power, Status, System, USB
On/off switch	Yes

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE

Antenna

Specification	Value
Antenna design	Internal
Antennas quantity	2

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	AC
Power consumption (typical)	10.96 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-30 - 70 °C

Weight & dimensions

Specification	Value
Depth	118 mm
Height	26 mm
Weight	220 g
Width	158 mm

Packaging data

Specification	Value
Package width	260 mm
Package depth	145 mm
Package height	37 mm
Package weight	440 g
