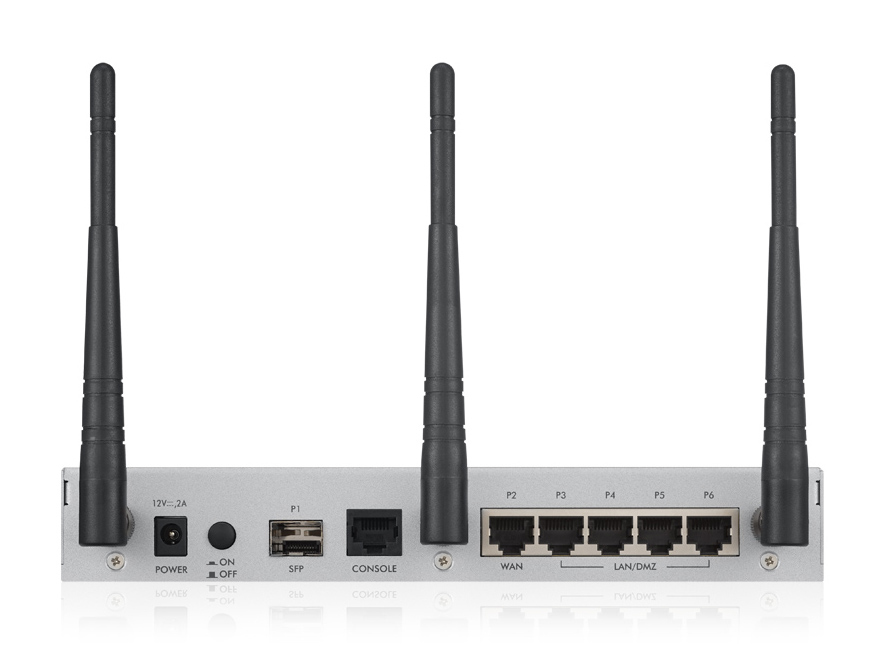

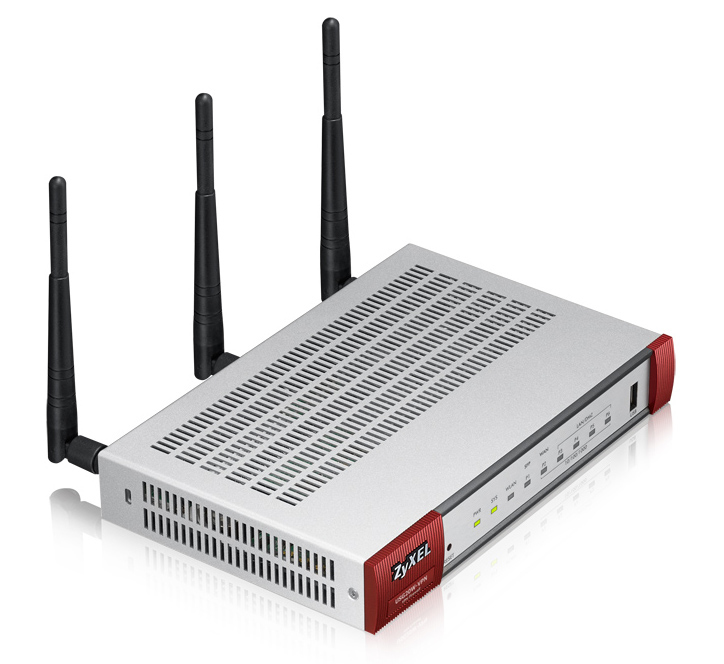

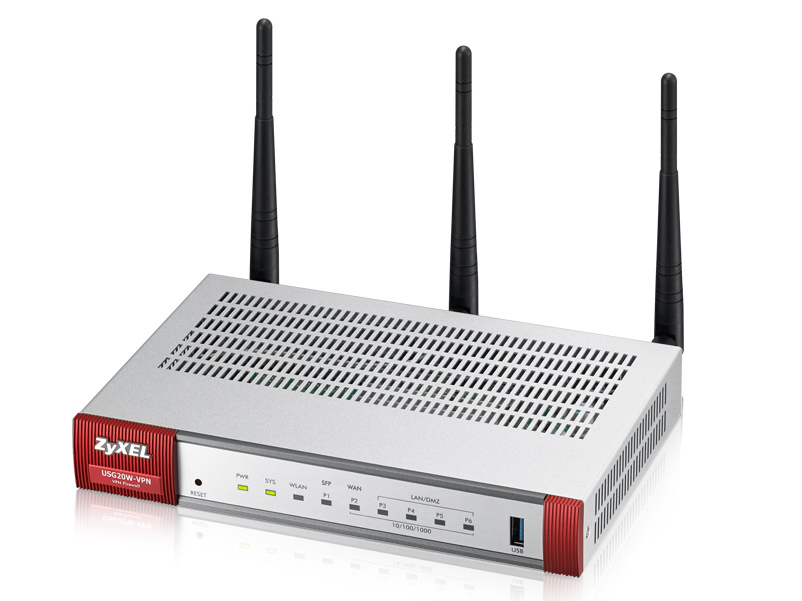

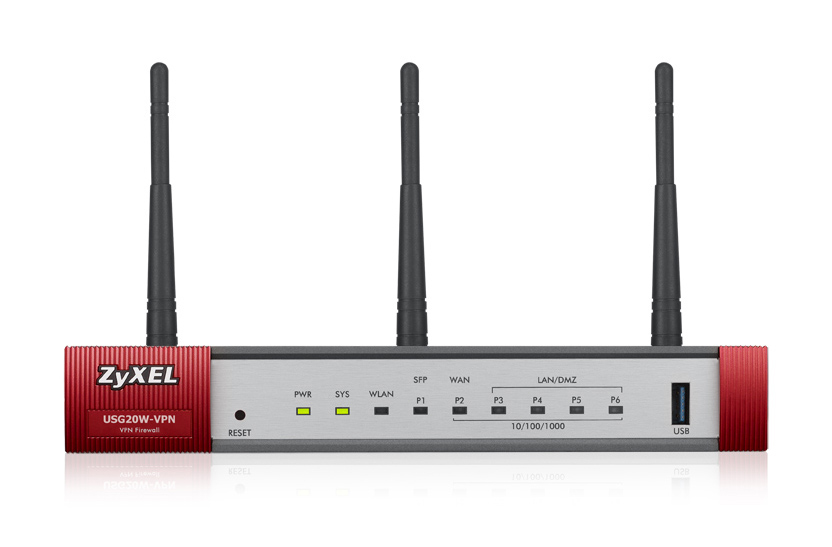

Zyxel USG20W-VPN-EU0101F wireless router Gigabit Ethernet Dual-band (2.4 GHz

Zyxel USG20W-VPN-EU0101F wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Grey, Red

Model USG20W-VPN-EU0101FEAN 4718937590896

67 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • TypePortable router
  • Weight1.14 kg
  • ColourGrey, Red
  • Ethernet WANYes
  • Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Type
Portable router
Weight
1.14 kg
Colour
Grey, Red
Ethernet WAN
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Brand
Zyxel
Model
USG20W-VPN-EU0101F
Part number
USG20W-VPN-EU0101F
EAN / UPC
4718937590896
Also known as
Zyxel USG20W-VPN-EU0101F wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Grey, Red

Specifications

67 specifications in 18 groups

WAN connection

Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityNo

Wireless LAN features

Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
VPN tunnels quantity10

Mobile network

3GNo
4GNo

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portNo
DC-in jackYes

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes

Security

Security algorithmsSSID, SSL/TLS
FirewallYes
FilteringYes
MAC address filteringYes
System event logYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes

Design

Product typePortable router
Product colourGrey, Red
Indication lightYes
LED indicatorsActivity, LAN, Power, WAN, WLAN, WPS
On/off switchYes

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes

Antenna

Antenna designExternal
Antenna connector typeN-type
Antenna gain level (max)3 dBi
Antennas quantity3
Detachable antenna(s)Yes

Features

Heat dissipation61.38 BTU/h
Mean time between failures (MTBF)44000 h
Electromagnetic compatibilityFCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI
SafetyBSMI, UL

Power

Power source typeDC
Power consumption (typical)18 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 90%
Storage temperature (T-T)-30 - 70 °C

Weight & dimensions

Depth143 mm
Height33 mm
Weight1.14 kg
Width216 mm

Packaging data

Package width276 mm
Package depth185 mm
Package height98 mm
Package weight1.5 kg

Logistics data

Harmonized System (HS) code85176990

Other features

Frequency band2.4 & 5
USB ports quantity1
