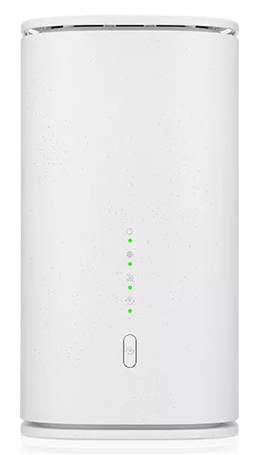

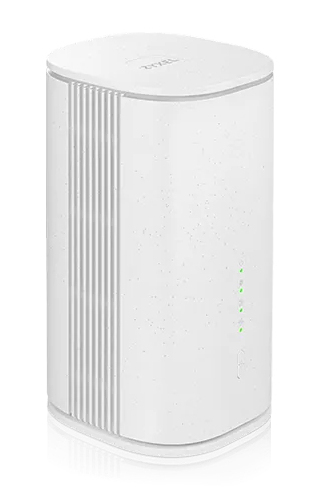

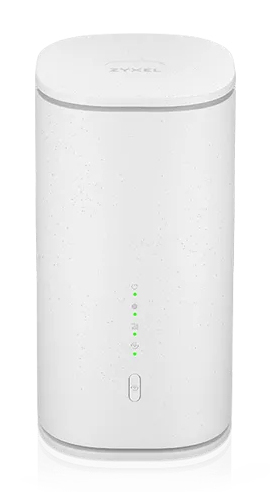

Zyxel NR5307 wireless router Gigabit Ethernet Dual-band (2.4 GHz

NR5307 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) 5G White

Model NR5307Part no. NR5307-EU01V1FEAN 4718937635498

77 specifications

SpeedWi-Fi 7 (802.11be)
TypeTabletop router
Weight1.08 kg
ColourWhite
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 7 (802.11be)
Type: Tabletop router
Weight: 1.08 kg
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Zyxel
Category: Wireless Router
Model: NR5307
Part number: NR5307-EU01V1F
EAN / UPC: 4718937635498
Also known as: Zyxel NR5307 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G White

Specifications

77 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	7200 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Modulation	16-QAM, 64-QAM, 256-QAM, 4096-QAM, QPSK

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	100,1000,2500 Mbit/s
Port forwarding	Yes
Automatic channel selection	Yes
SSID-based VLAN assignment	Yes
Static route	Yes
USB sharing	Yes
VPN Passthrough	Yes

Mobile network

Specification	Value
Mobile network generation	5G
4G standard	LTE-TDD & LTE-FDD
5G standard	NR, Sub6 NSA, Sub6 SA
SIM card type	NanoSIM

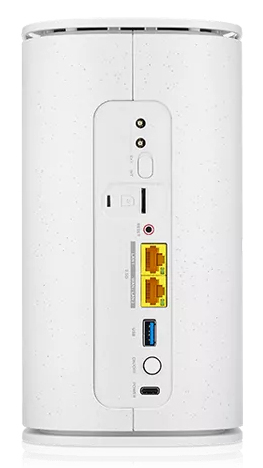

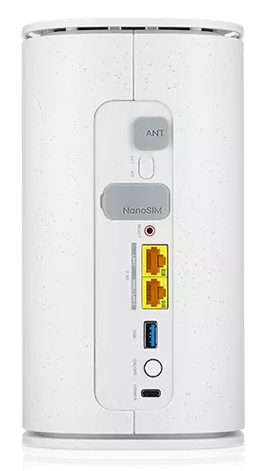

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	1
USB charging port	Yes
TS9 RF ports	2

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes

Security

Specification	Value
Security algorithms	WPA2-PSK, WPA3-SAE
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
Housing material	Plastic
LED indicators	Power, Status, WPS
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), USB Type-C
AC adapter included	Yes
Warranty card	Yes

Certificates

Specification	Value
Compliance certificates	CE, UKCA

Antenna

Specification	Value
Antenna design	Internal & external
Antenna type	4x4
Antenna connector type	TS9
Antenna gain level (max)	7 dBi
Antennas quantity	4
Antenna direction type	Omni-directional
Detachable antenna(s)	Yes

Features

Specification	Value
Number of simultaneously connected devices (max)	64
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	USB
Power consumption (typical)	48 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 40 °C
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-30 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Depth	130 mm
Height	217 mm
Weight	1.08 kg
Width	117 mm

Packaging data

Specification	Value
Package width	126 mm
Package depth	154 mm
Package height	287 mm
Package weight	1.65 kg
