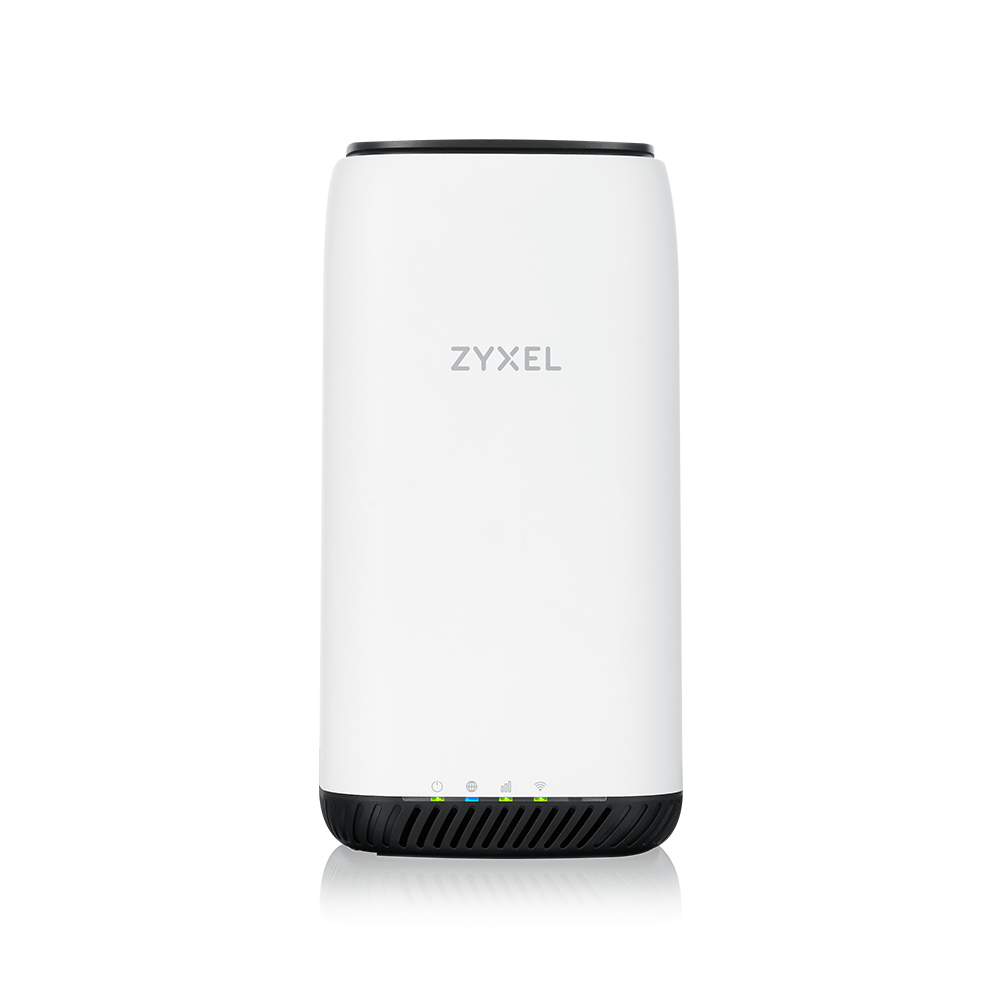

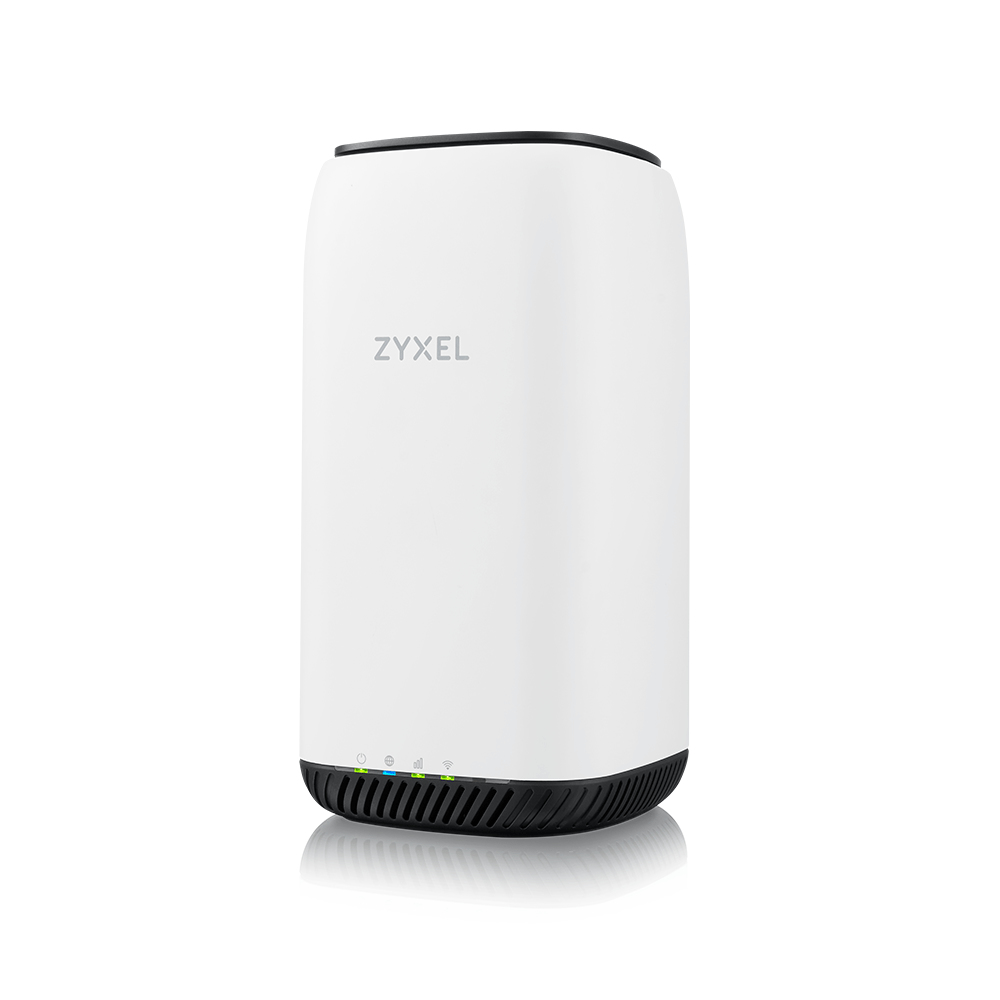

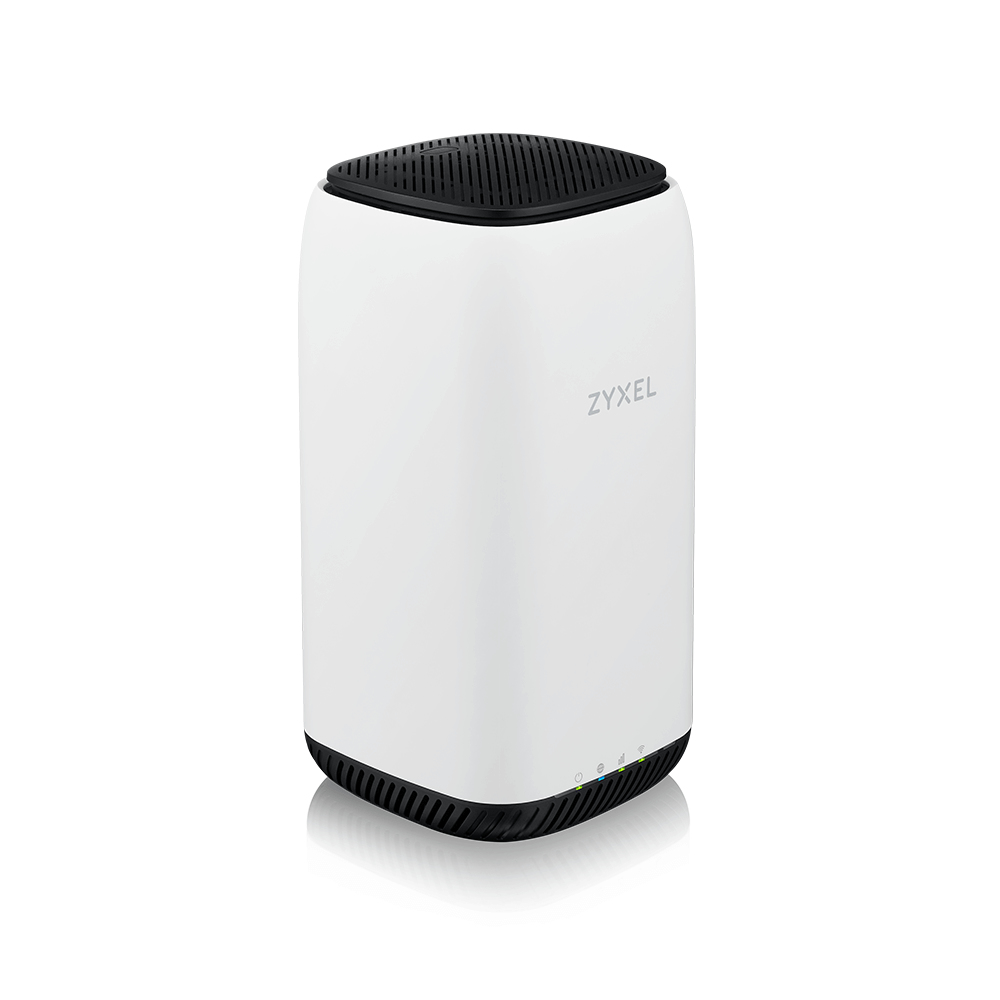

Zyxel NR5101 wireless router Gigabit Ethernet Dual-band (2.4 GHz

NR5101 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) 5G White

Model NR5101Part no. NR5101-EUZNV2FEAN 4718937613083

76 specifications

SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight600 g
ColourWhite
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 600 g
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Zyxel
Category: Wireless Router
Model: NR5101
Part numbers: NR5101-EUZNV2F, 210020, NR5101-EU01V1F, NR5101-EUZNN1F
EAN / UPC: 4718937613083, 4718937624911, 4718937626953
Also known as: Zyxel NR5101 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G White

Specifications

76 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1773 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	573 Mbit/s
WLAN data transfer rate (second band)	1200 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, QPSK

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
SSID-based VLAN assignment	Yes
USB sharing	Yes

Mobile network

Specification	Value
Mobile network generation	5G
3G	Yes
4G	Yes
5G	Yes
2G standards	Edge, GPRS, GSM
3G standards	DC-HSDPA, DC-HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
SIM card type	MicroSIM

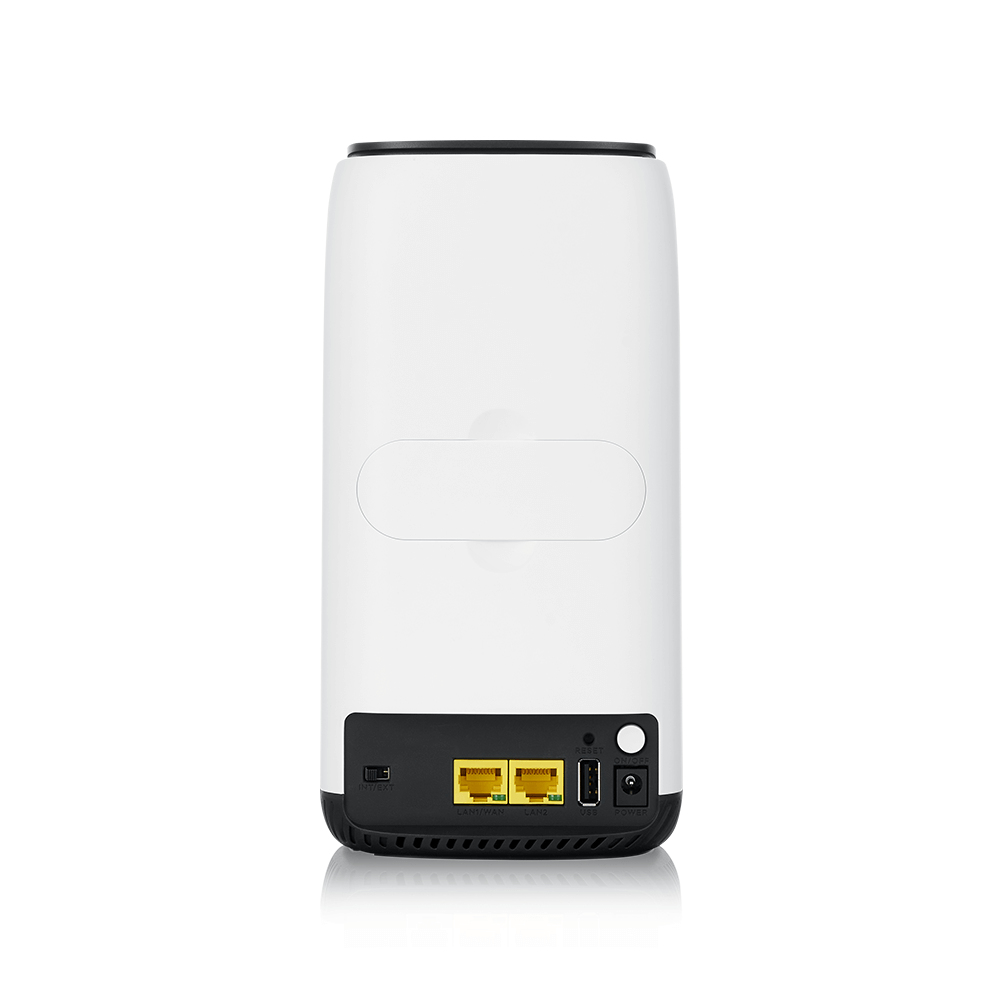

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes
WPS push button	Yes
MIMO	Yes

Security

Specification	Value
Security algorithms	WPA2, WPA3
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
Network address translation (NAT)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
Wall mountable	No
Indication light	Yes
LED indicators	LAN, LTE, Power, USB, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes
Bundled software	DoC, Safety warranty

Certificates

Specification	Value
Certification	CE, WEEE (Waste Electrical and Electronic Equipment) Directive certification, RoHS (Restriction of Hazardous Substances) Directive certification, HSF (Hazardous Substance Free), European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste

Antenna

Specification	Value
Antenna design	Internal & external

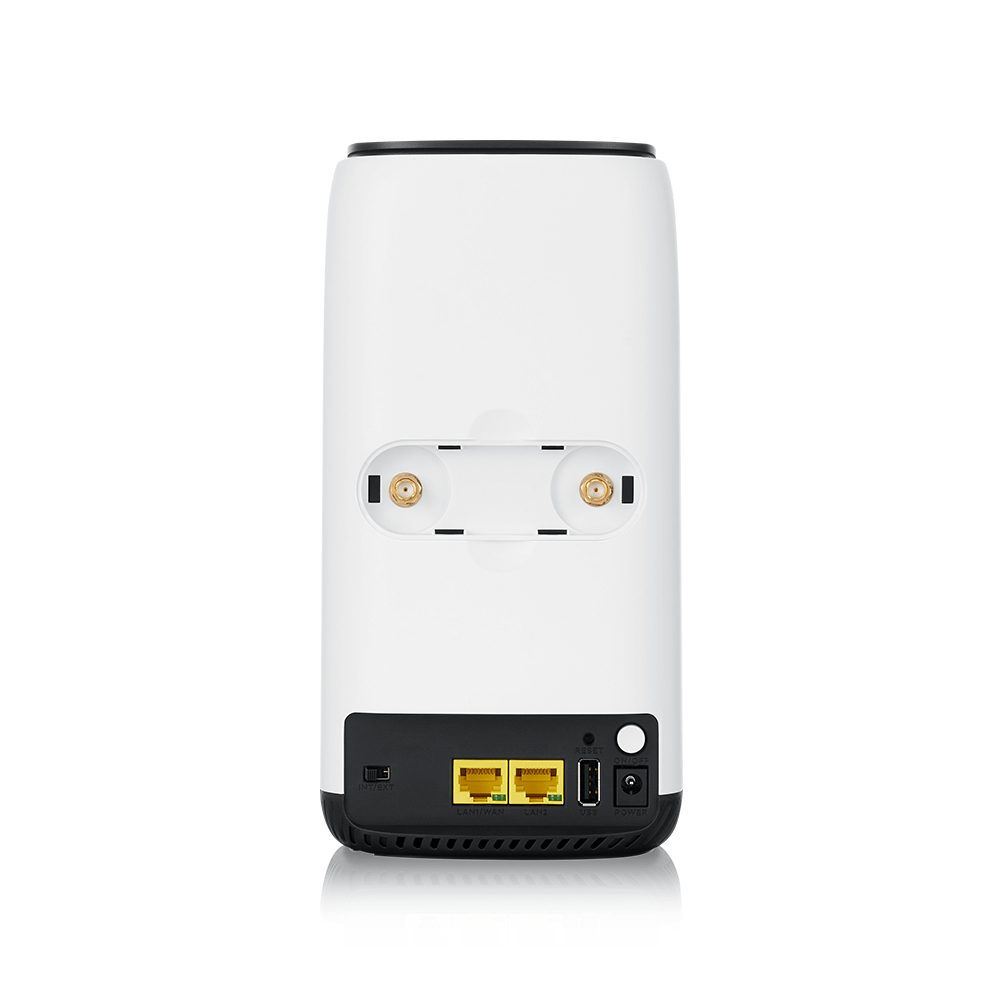

Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Antennas quantity	6
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC
Power supply	24 W
External power adapter	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-30 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	100 mm
Height	205 mm
Weight	600 g
Width	100 mm

Packaging data

Specification	Value
Package width	247 mm
Package depth	170 mm
Package height	120 mm
Package weight	1.6 kg

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
