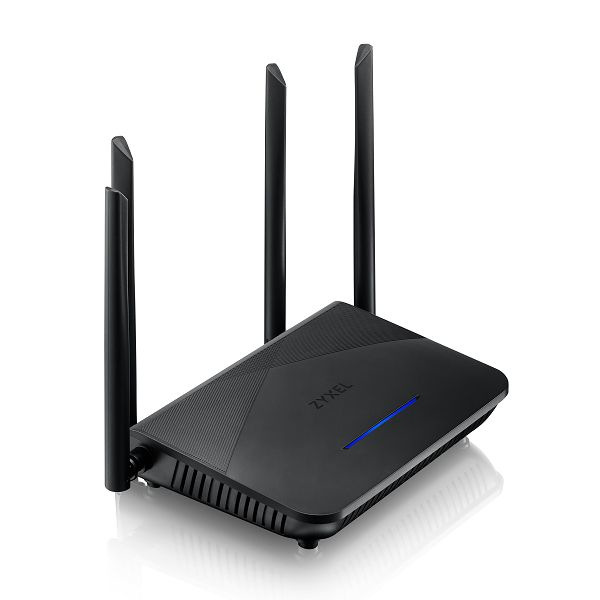

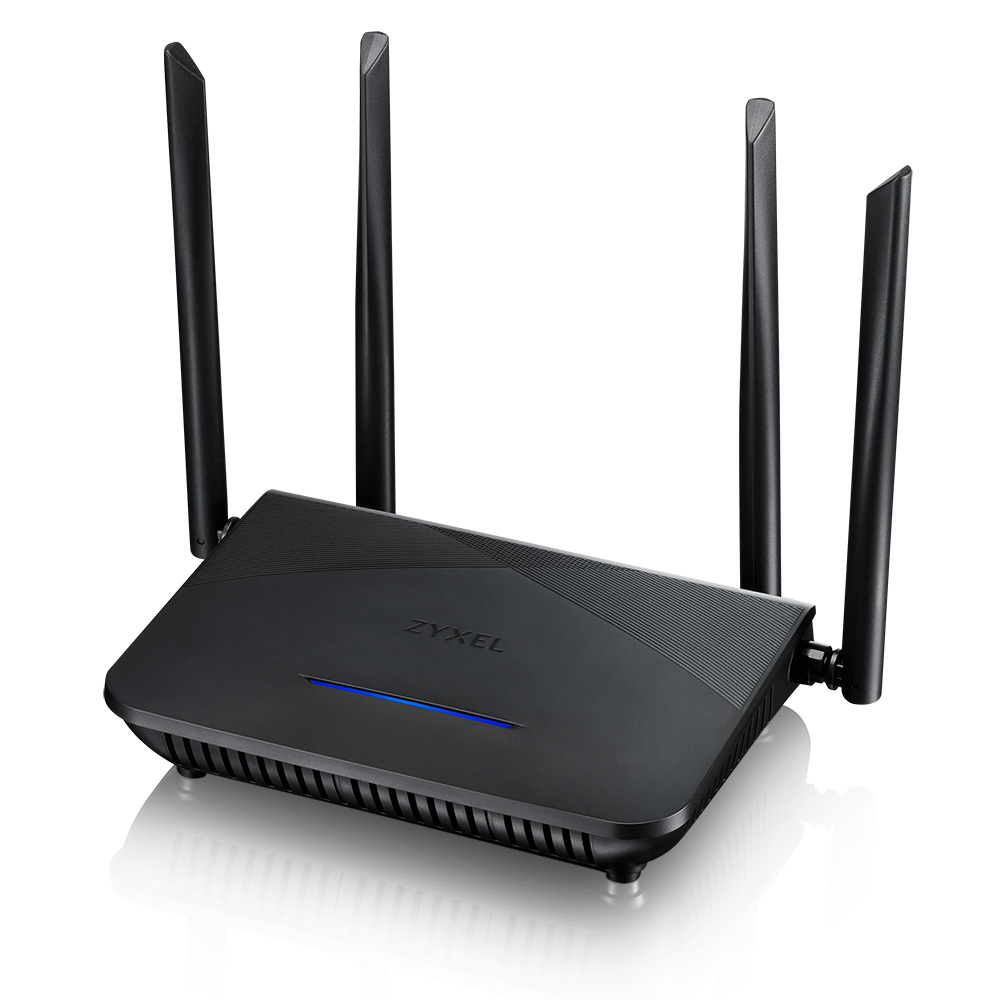

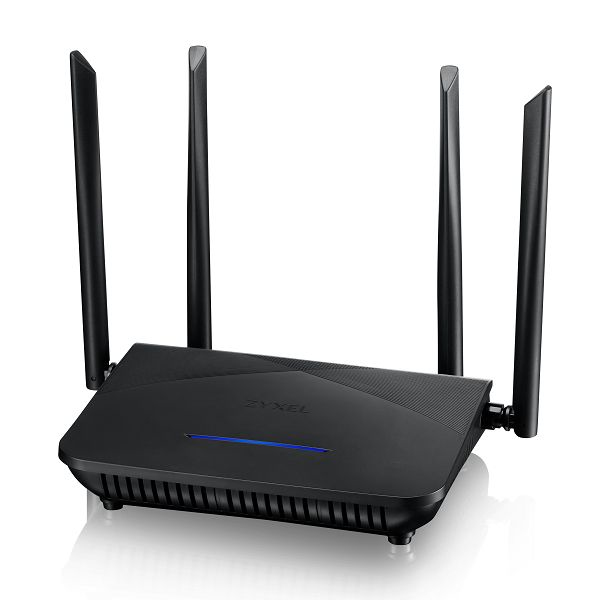

Zyxel NBG7510 wireless router Gigabit Ethernet Dual-band (2.4 GHz

NBG7510 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model NBG7510Part no. NBG7510-EU0101FEAN 4718937621330

57 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight331 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 331 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: Zyxel
Category: Wireless Router
Model: NBG7510
Part numbers: NBG7510-EU0101F, NBG7510
EAN / UPC: 4718937621330, 760559129859
Also known as: Zyxel NBG7510 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

57 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1800 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1200 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
VPN support	IPSec/PPTP/L2TP

Mobile network

Specification	Value
5G	Yes

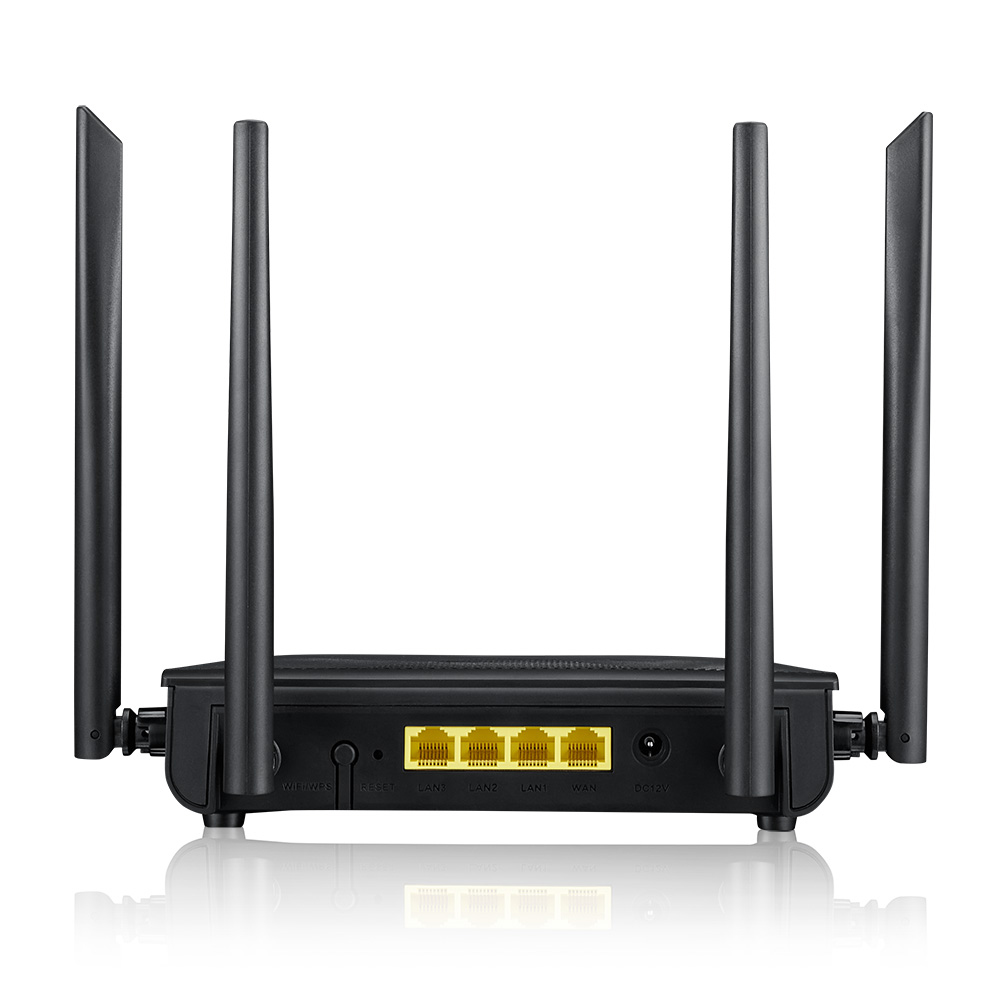

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	1

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Filtering	Yes
MAC address filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black

Packaging content

Specification	Value
Cables included	DC, LAN (RJ-45)
Manual	Yes
Quick installation guide	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, BSMI, NCC

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2
Detachable antenna(s)	No

Features

Specification	Value
Firmware upgradeable	Yes
Safety	CE-LVD, BSMI

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-30 - 70 °C

Weight & dimensions

Specification	Value
Depth	157 mm
Height	196 mm
Weight	331 g
Width	225 mm

Packaging data

Specification	Value
Number of products included	1 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
