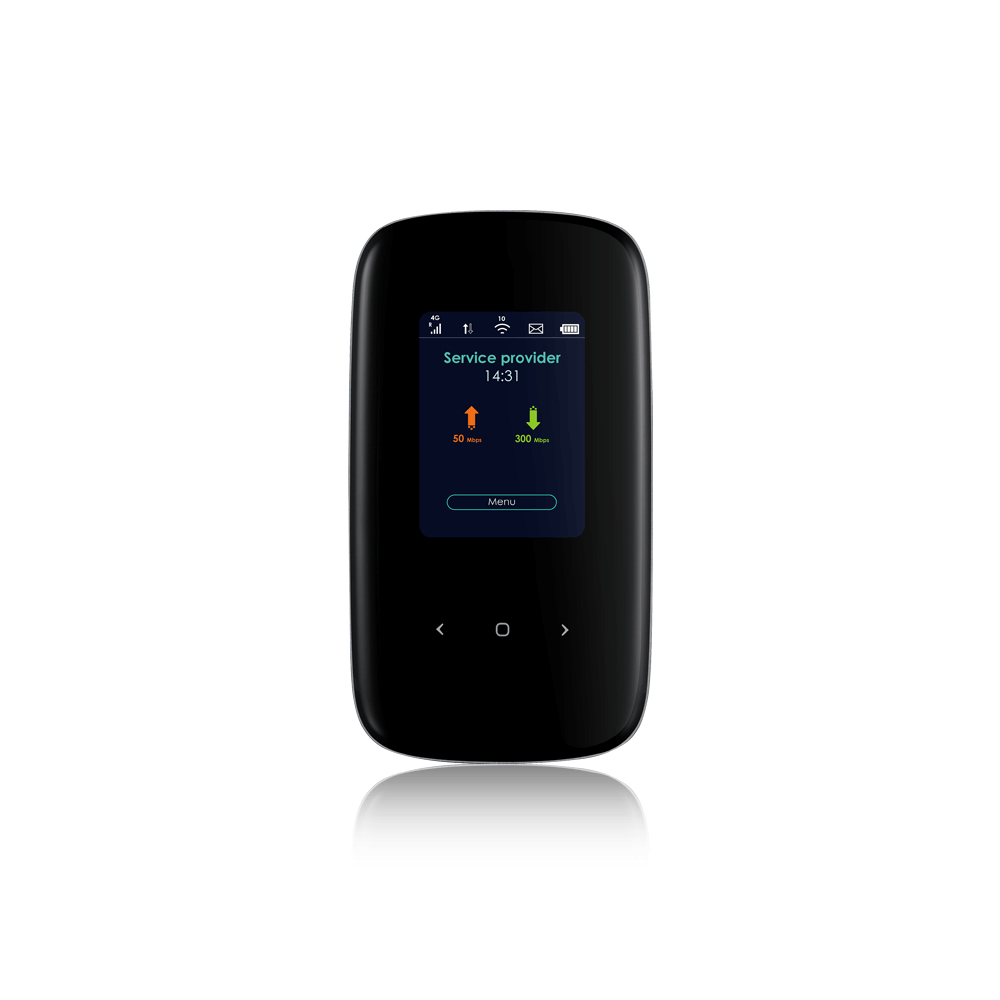

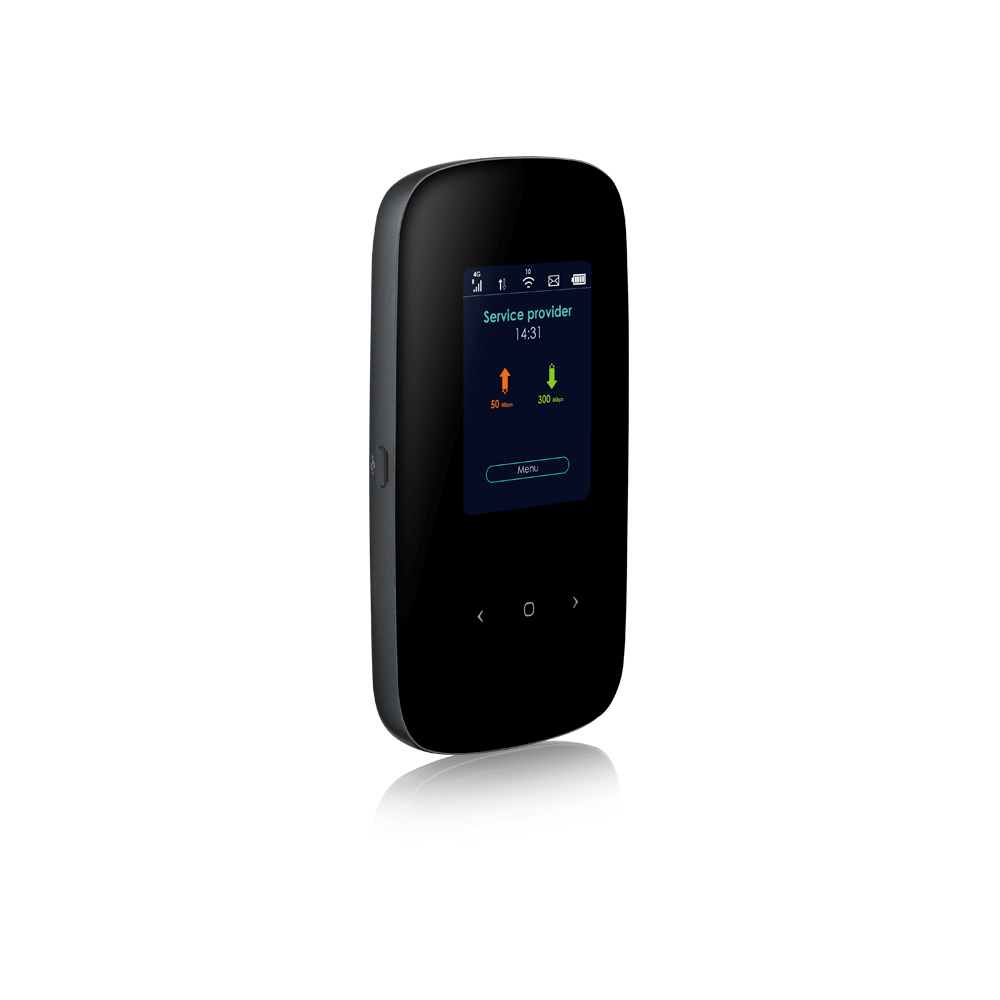

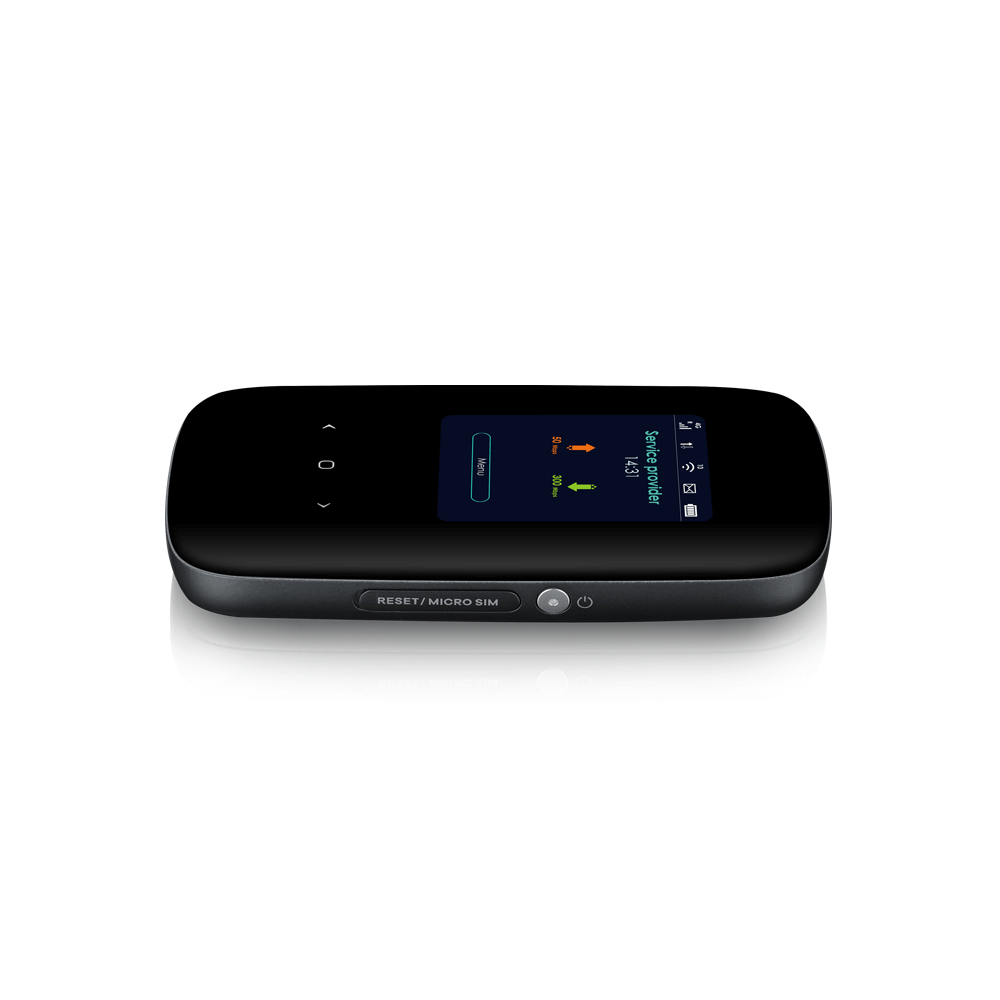

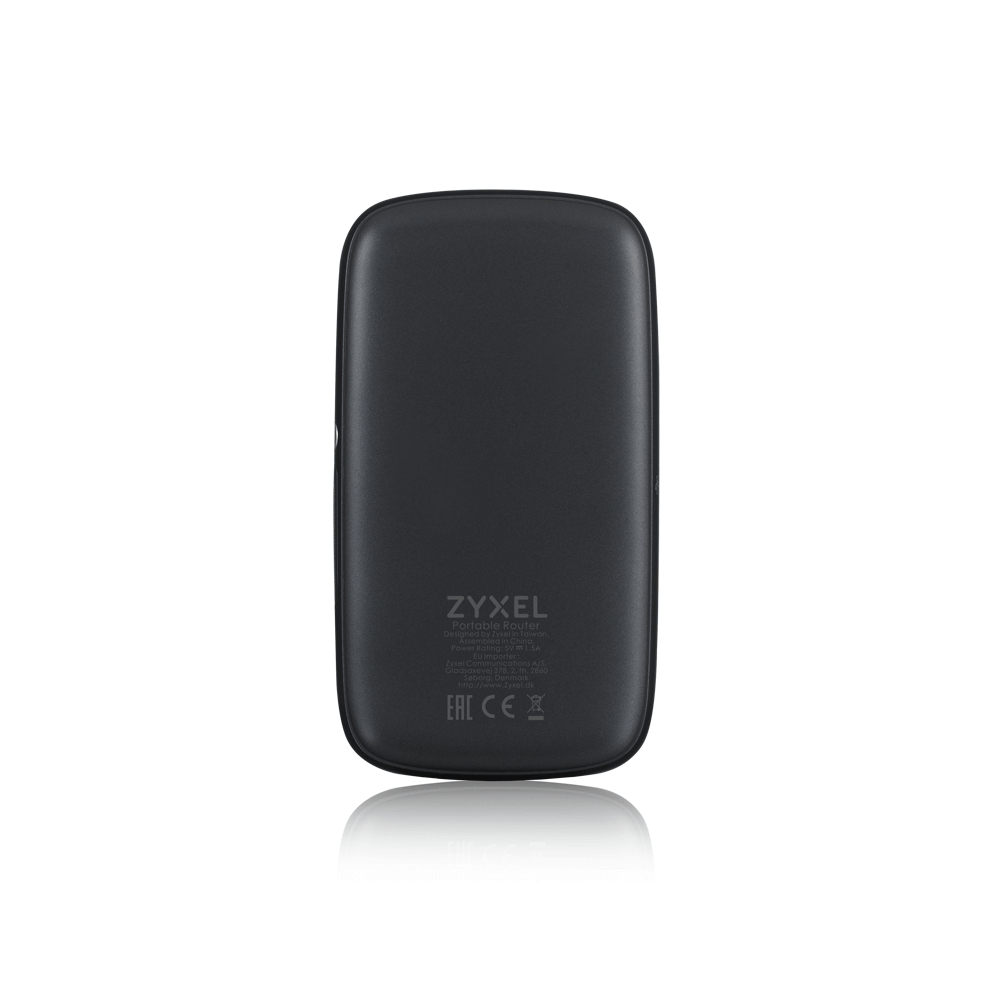

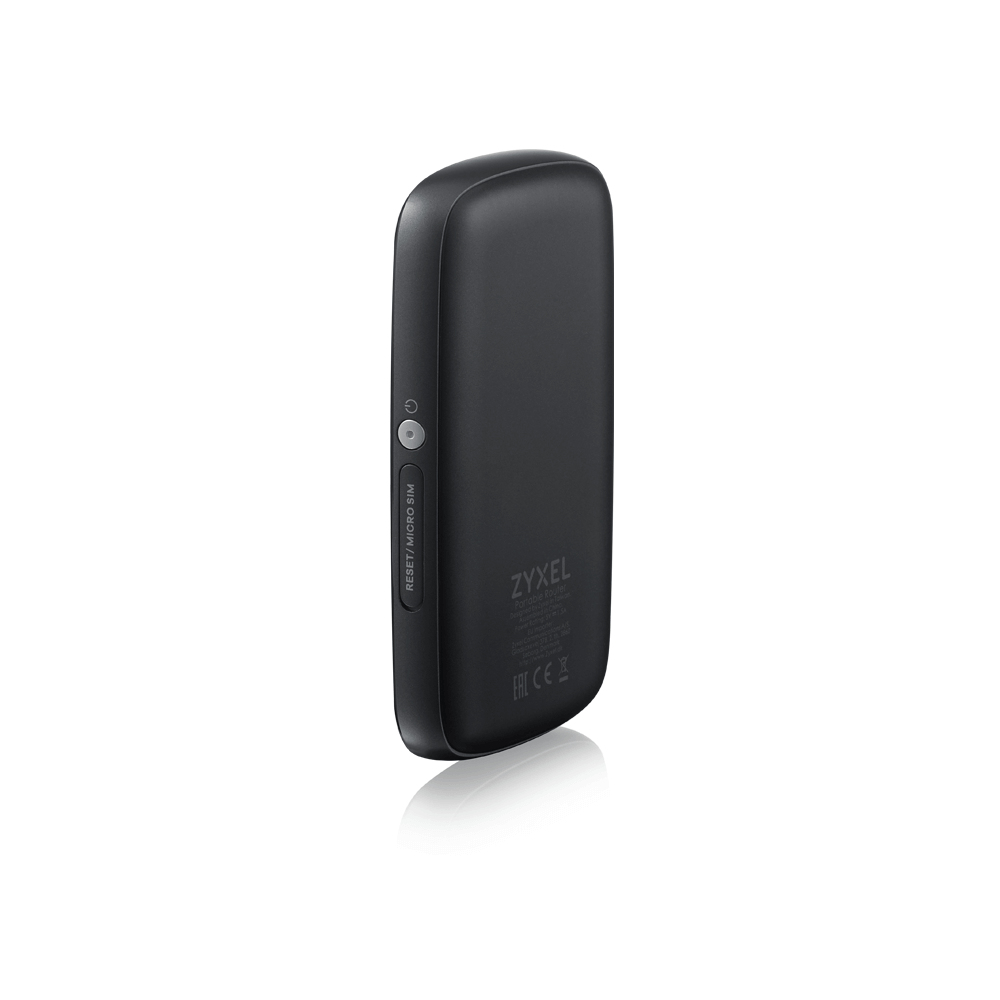

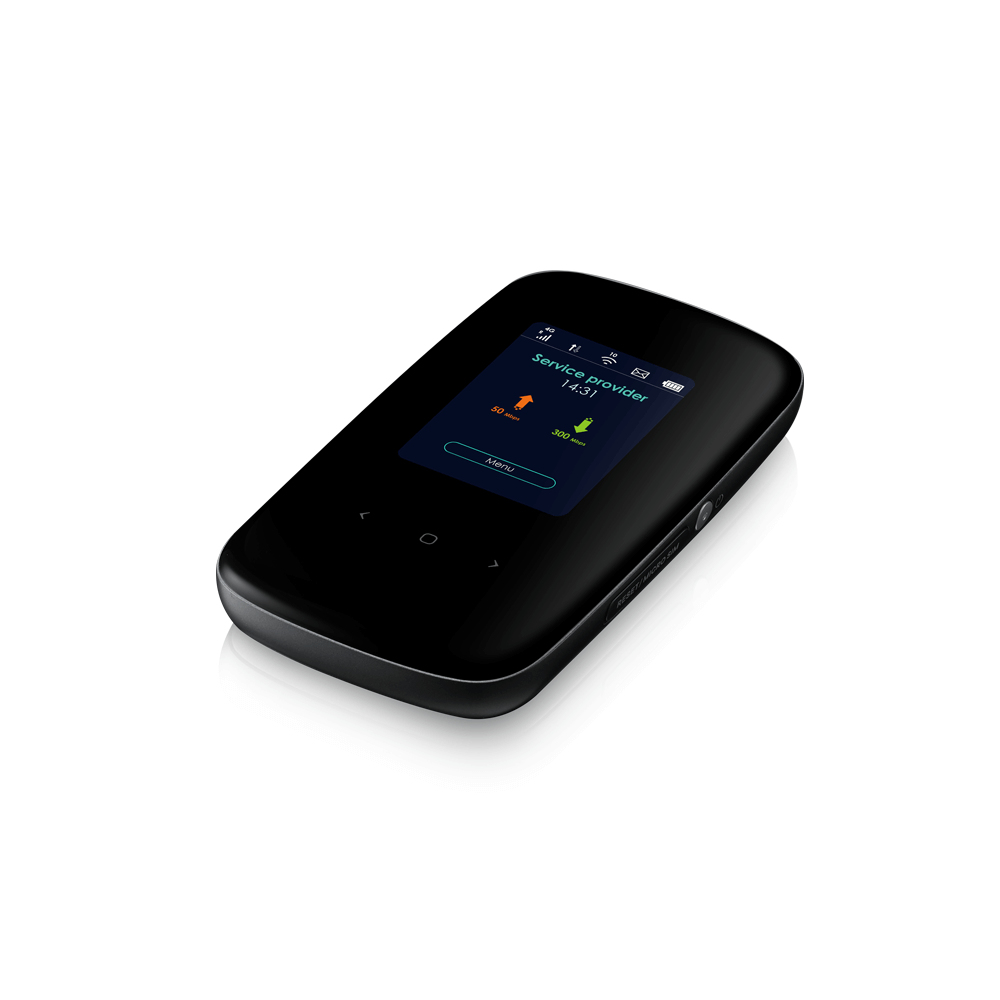

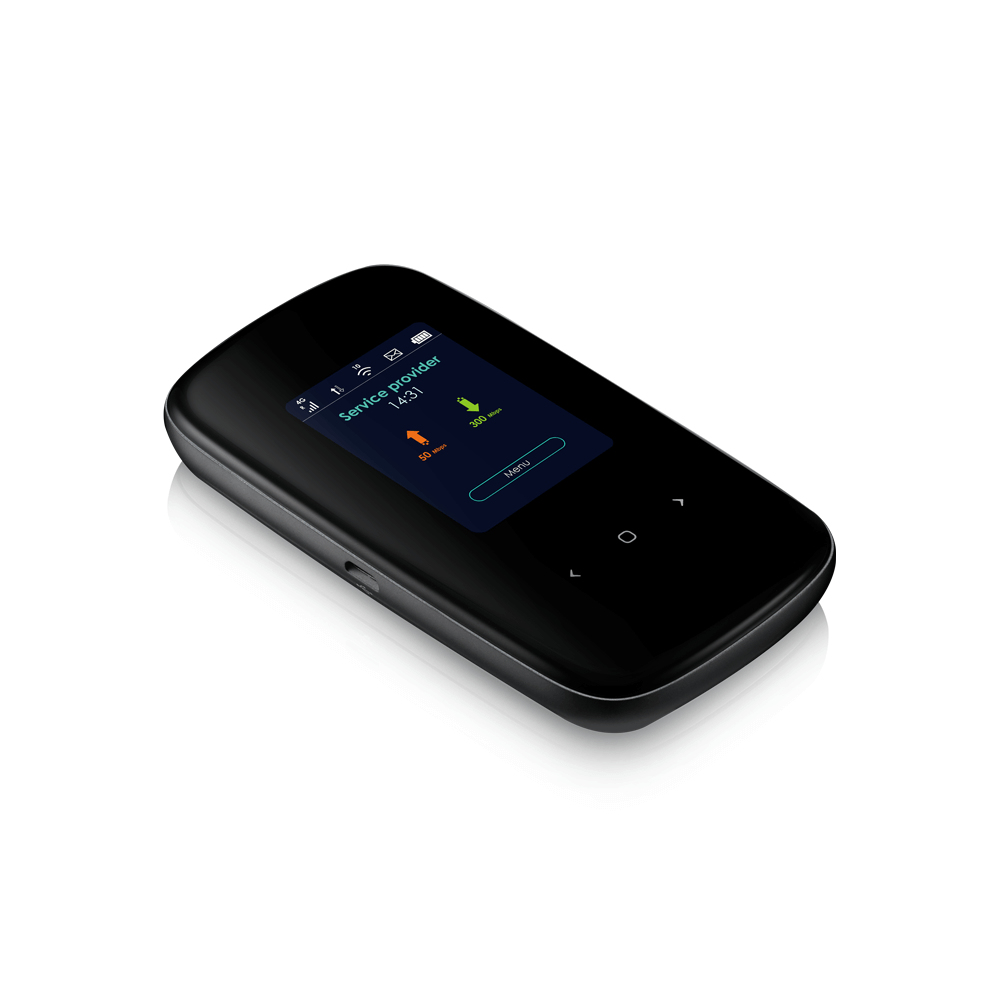

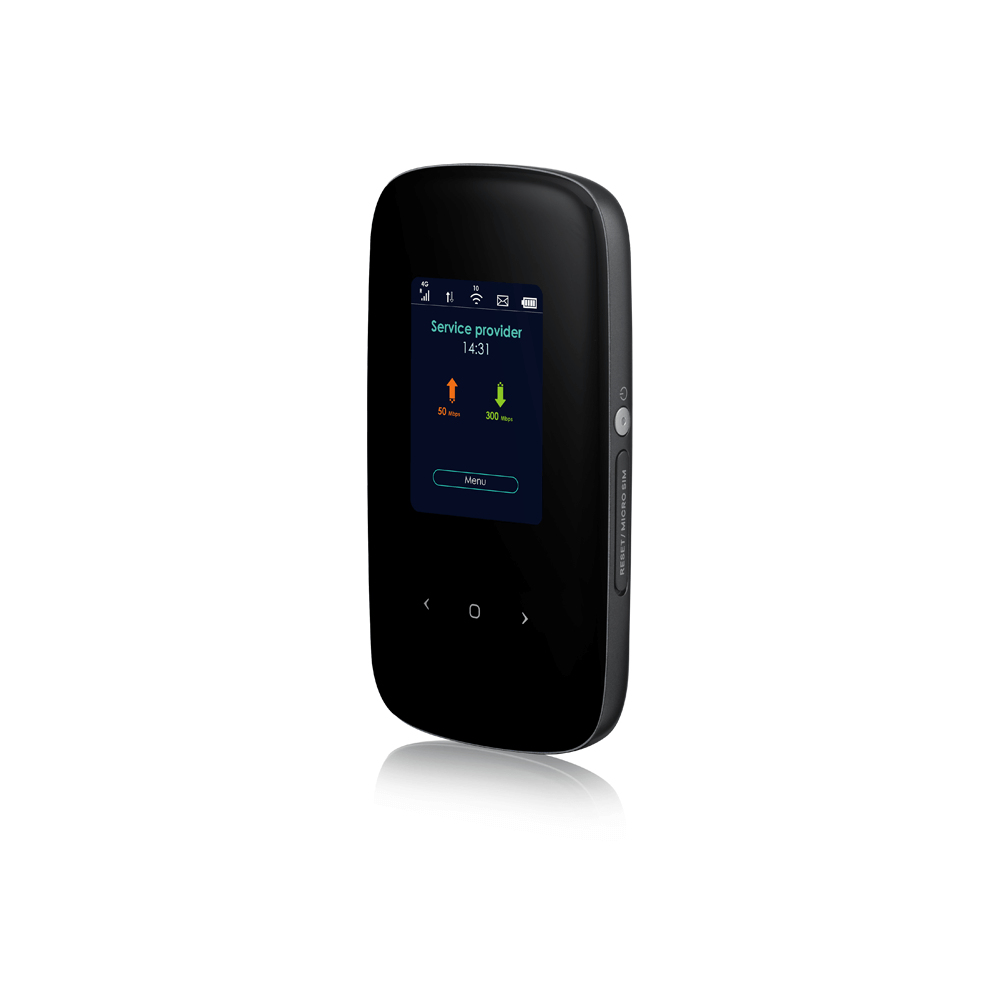

Zyxel LTE2566-M634 wireless router Dual-band (2.4 GHz

LTE2566-M634 wireless router Dual-band (2.4 GHz

5 GHz) 4G Black

Model LTE2566-M634Part no. LTE2566-M634-EUZNV1FEAN 4718937610945

60 specifications

Battery3000 mAh
SpeedWi-Fi 5 (802.11ac)
TypePortable router
Weight130 g
ColourBlack
Ethernet WANNo

See all specifications

Overview

Battery: 3000 mAh
Speed: Wi-Fi 5 (802.11ac)
Type: Portable router
Weight: 130 g
Colour: Black
Ethernet WAN: No

Brand: Zyxel
Category: Wireless Router
Model: LTE2566-M634
Part number: LTE2566-M634-EUZNV1F
EAN / UPC: 4718937610945
Also known as: Zyxel LTE2566-M634 wireless router Dual-band (2.4 GHz / 5 GHz) 4G Black

Specifications

60 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	No
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	300 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	224 Mbit/s

Network

Specification	Value
Ethernet LAN	No
Ethernet LAN interface type	Not available
Dynamic DNS (DDNS)	Yes
SSID-based VLAN assignment	Yes
VPN Passthrough	Yes

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
4G standard	LTE-TDD & LTE-FDD
3G bands supported	900,2100 MHz

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0
USB port	Yes
USB 2.0 ports quantity	1
Memory card slot(s)	No

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WPA-PSK, WPA2-PSK
Firewall	Yes
Access Control List (ACL)	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP server	Yes

Design

Specification	Value
Product type	Portable router
Product colour	Black
Indication light	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3000 mAh

Certificates

Specification	Value
Certification	UN38.3, CE, WEEE, RoHS, HSF,

Power

Specification	Value
Power source type	Battery, DC
Output voltage	5 V
Output current	1.5 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C

System requirements

Specification	Value
Browser supported	Internet Explorer, Edge, Firefox, Chrome, Safari
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Ubuntu 12.04, Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Depth	65 mm
Height	15.7 mm
Weight	130 g
Width	118.2 mm

Packaging data

Specification	Value
Package width	150 mm
Package depth	80 mm
Package height	50 mm
Package weight	270 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
