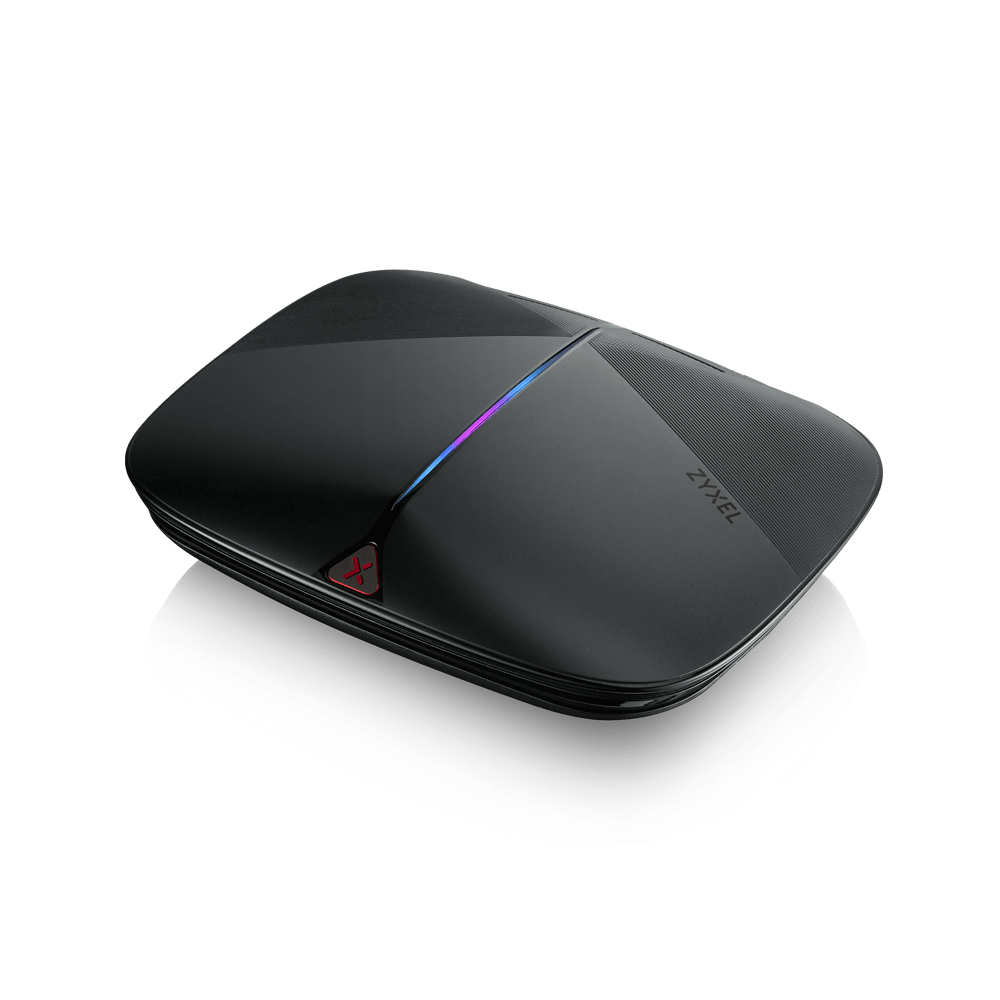

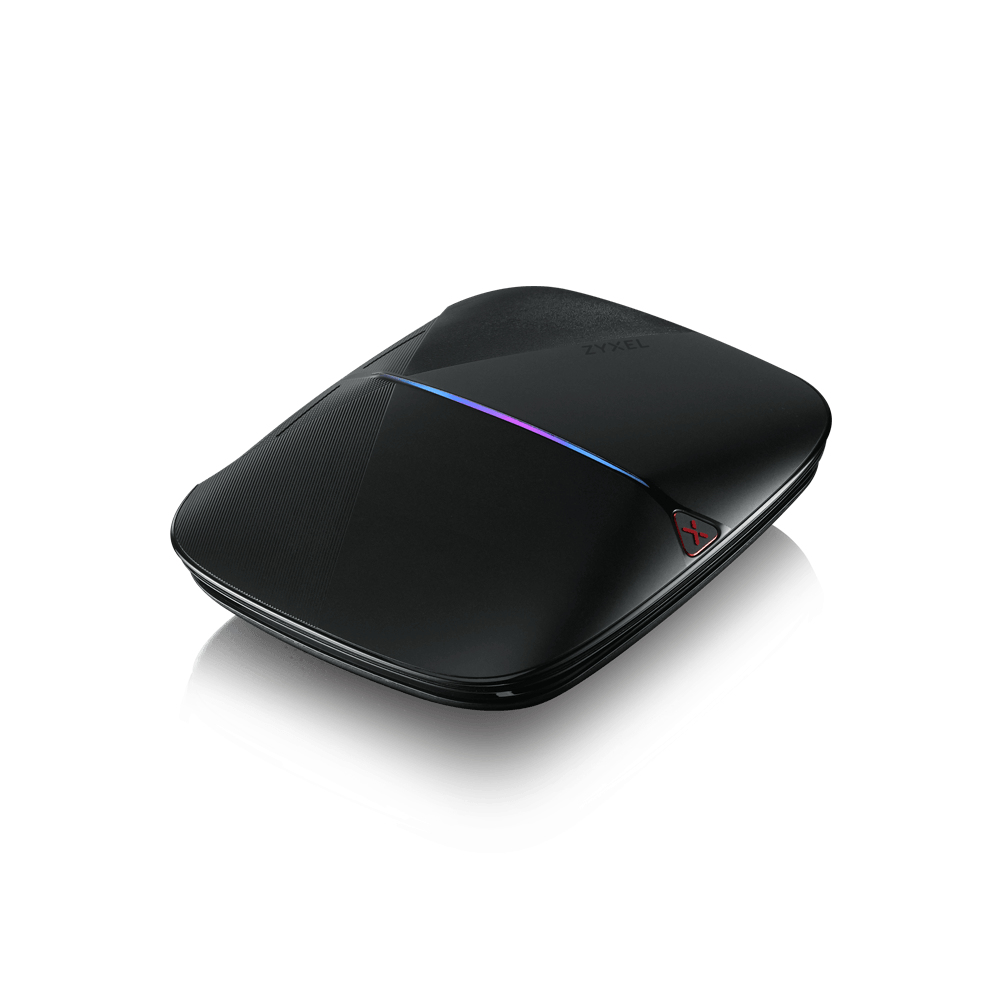

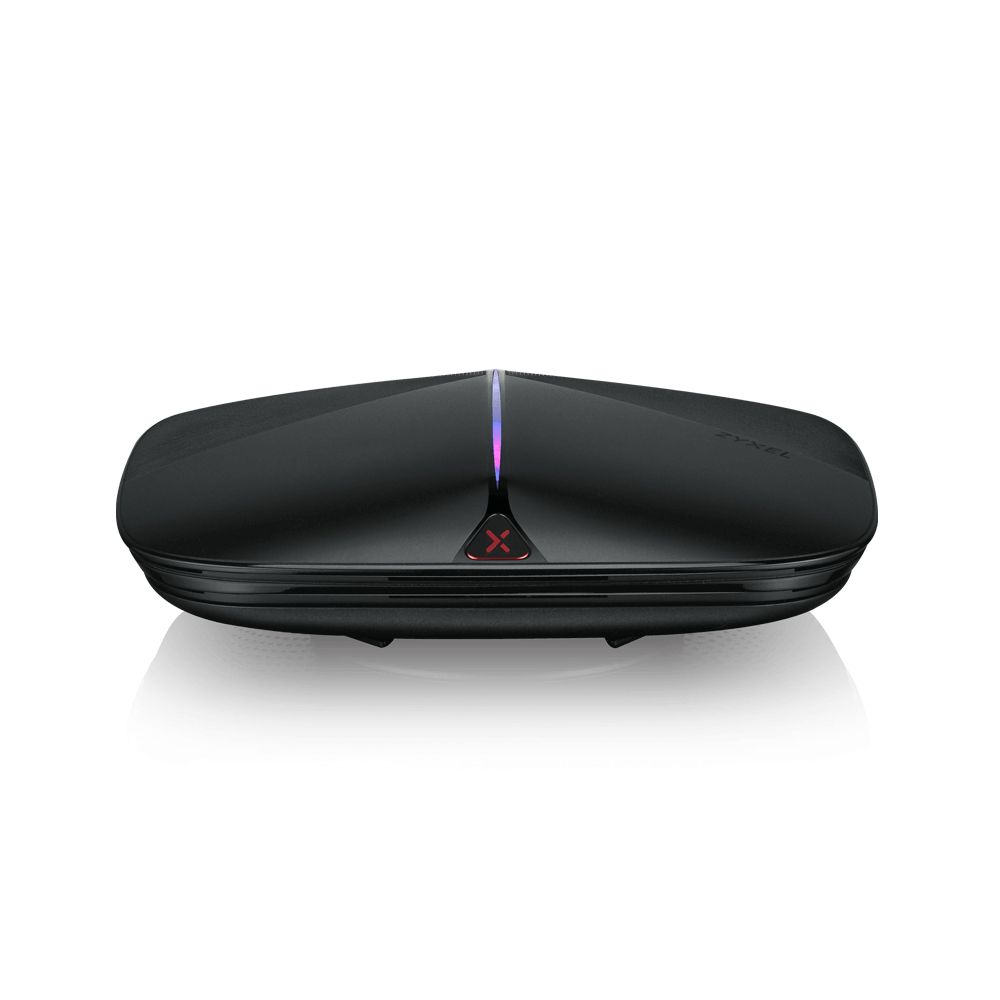

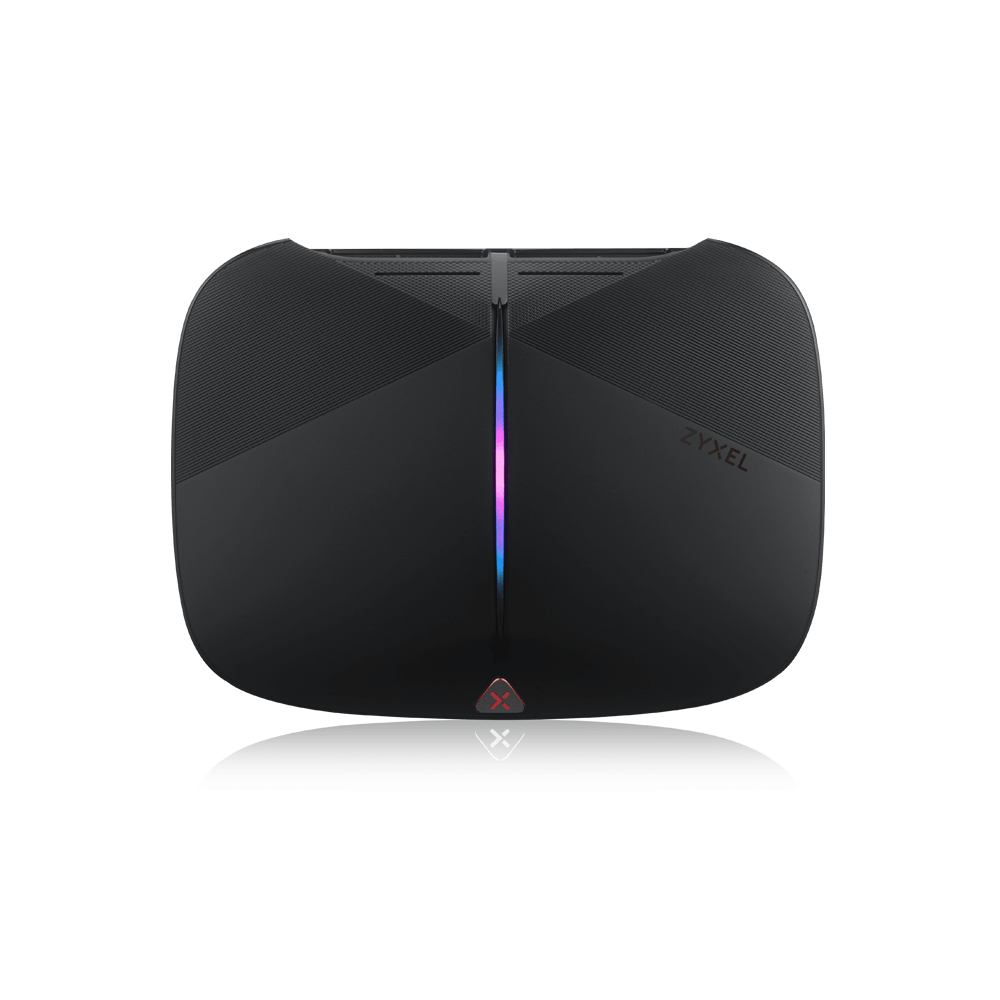

Zyxel Armor G5

Armor G5

Model Armor G5Part no. NBG7815-EU0102FEAN 4718937611539

73 specifications

Memory1000 MB
SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight1 kg
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 1000 MB
Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 1 kg
Colour: Black
Ethernet WAN: Yes

Brand: Zyxel
Category: Wireless Router
Model: Armor G5
Part number: NBG7815-EU0102F
EAN / UPC: 4718937611539
Also known as: Zyxel Armor G5 wireless router 10 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

73 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	1200 Mbit/s
WLAN data transfer rate (second band)	4800 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port triggering	Yes
Automatic channel selection	Yes
Dynamic DNS (DDNS)	Yes
Wireless Distribution System (WDS) bridge	Yes
VPN Passthrough	Yes

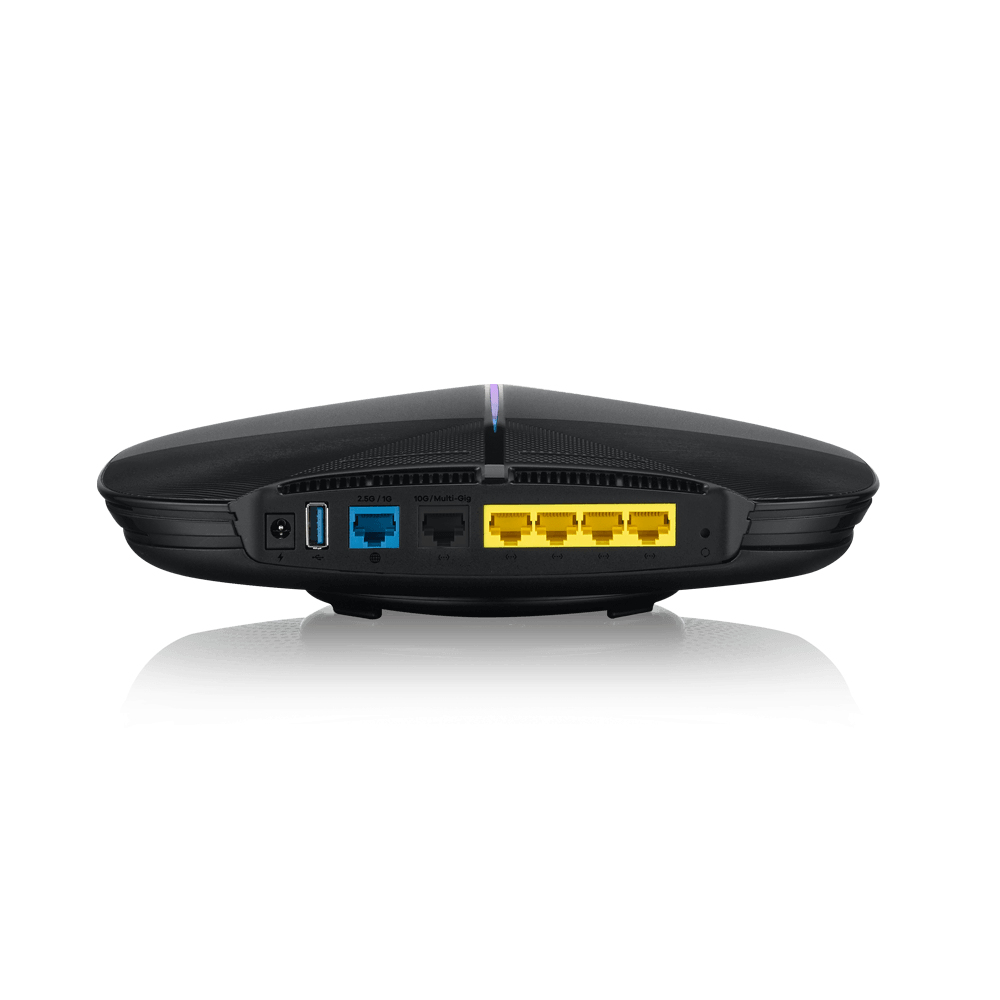

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB charging port	Yes
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	IPSec, WPA3-PSK, WPS
Firewall	Yes
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
Schedule access	Yes
DoS attack prevention	Yes
Parental control	Yes
MAC address filtering	Yes
IP address filtering	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	Safety: CE-LVD, BSMI EMC: CE, FCC, BSMI, EAC

Antenna

Specification	Value
Antenna design	Internal
Antennas quantity	13

Features

Specification	Value
Built-in processor	Yes
Processor frequency	2.2 MHz
Processor cores	4
Internal memory	1000 MB
Flash memory	4000 MB
Works with Amazon Alexa	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	AC
Output voltage	19 V
Output current	2.1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-30 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Android 10, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3

Weight & dimensions

Specification	Value
Depth	182 mm
Height	66 mm
Weight	1 kg
Width	248 mm

Packaging data

Specification	Value
Package width	375 mm
Package depth	235 mm
Package height	75 mm
Package weight	1.8 kg
Number of products included	1 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Maximum data transfer rate	6000 Mbit/s
