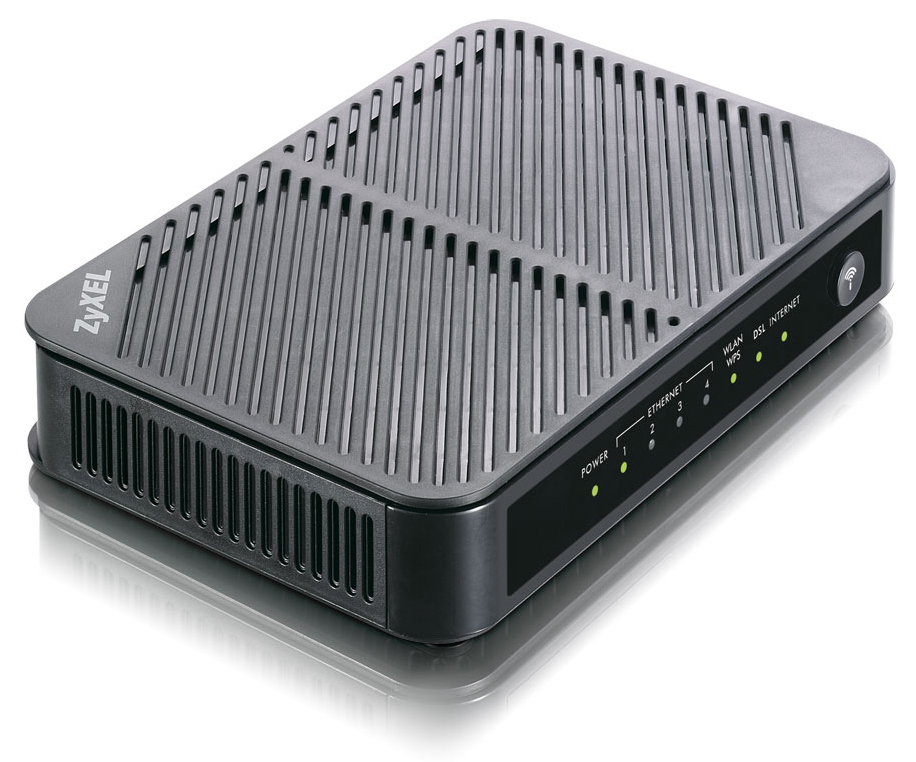

Zyxel AMG1202-T10A wireless router Fast Ethernet

Zyxel AMG1202-T10A wireless router Fast Ethernet

Model AMG1202-T10APart no. AMG1202-T10A-GB01V1F

54 specifications

SpeedWi-Fi 4 (802.11n)
Weight200 g
Ethernet WANYes
3GNo
Ethernet LAN (RJ-45) ports4
Antenna designInternal

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Weight: 200 g
Ethernet WAN: Yes
3G: No
Ethernet LAN (RJ-45) ports: 4
Antenna design: Internal

Brand: Zyxel
Category: Wireless Router
Model: AMG1202-T10A
Part number: AMG1202-T10A-GB01V1F
Also known as: Zyxel AMG1202-T10A wireless router Fast Ethernet

Specifications

54 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL2+	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	No
URL filtering	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	IP, RIP-1, RIP-2

Design

Specification	Value
LED indicators	Yes
On/off switch	Yes

Certificates

Specification	Value
Certification	CE, FCC

Antenna

Specification	Value
Antenna design	Internal
Antenna gain level (max)	3.5 dBi
Antennas quantity	1

Power

Specification	Value
Power consumption (typical)	5.6 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Depth	117 mm
Height	31 mm
Weight	200 g
Width	175 mm

Packaging data

Specification	Value
Package width	295 mm
Package depth	145 mm
Package height	37 mm
Package weight	250 g

Other features

Specification	Value
Mobile network connection	No
Bandwidth (first)	2.4 GHz
Filtering description	Packet
Rack mounting	No
WLAN data transfer rates supported	150 Mbit/s
xDSL connection	Yes
