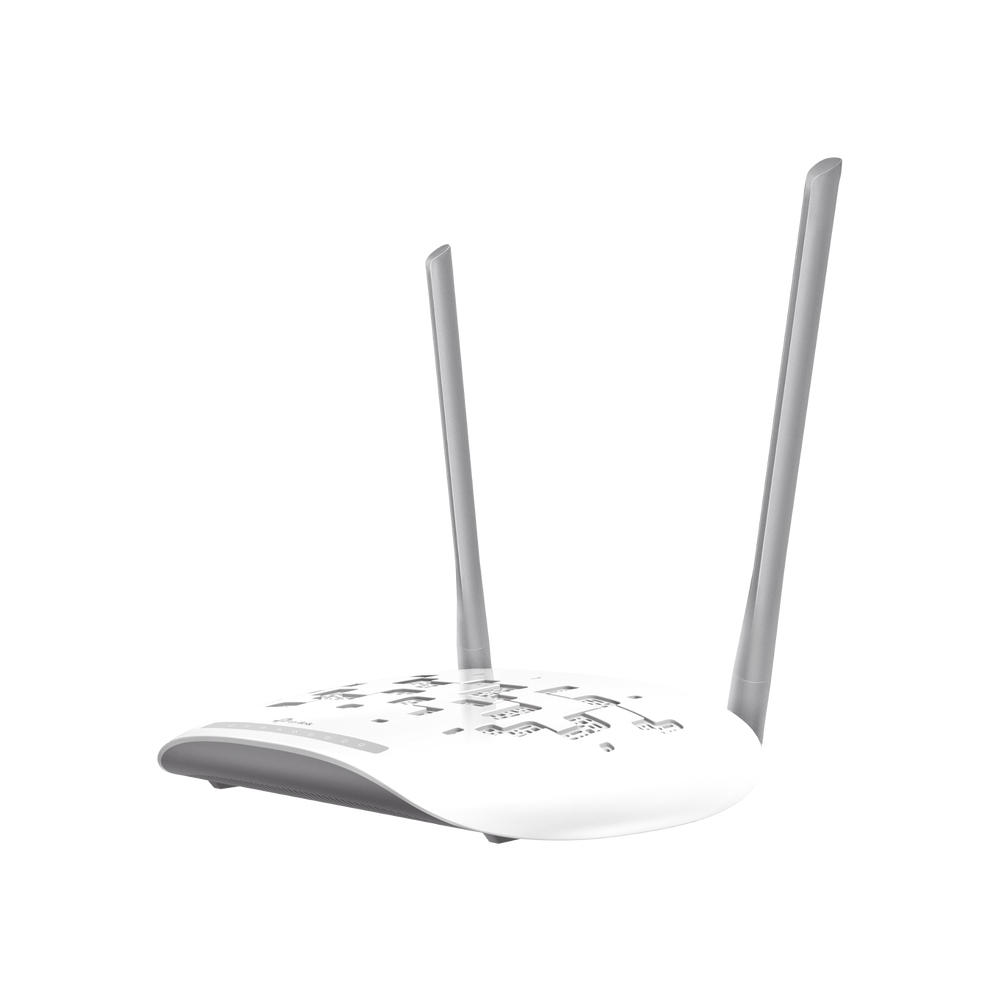

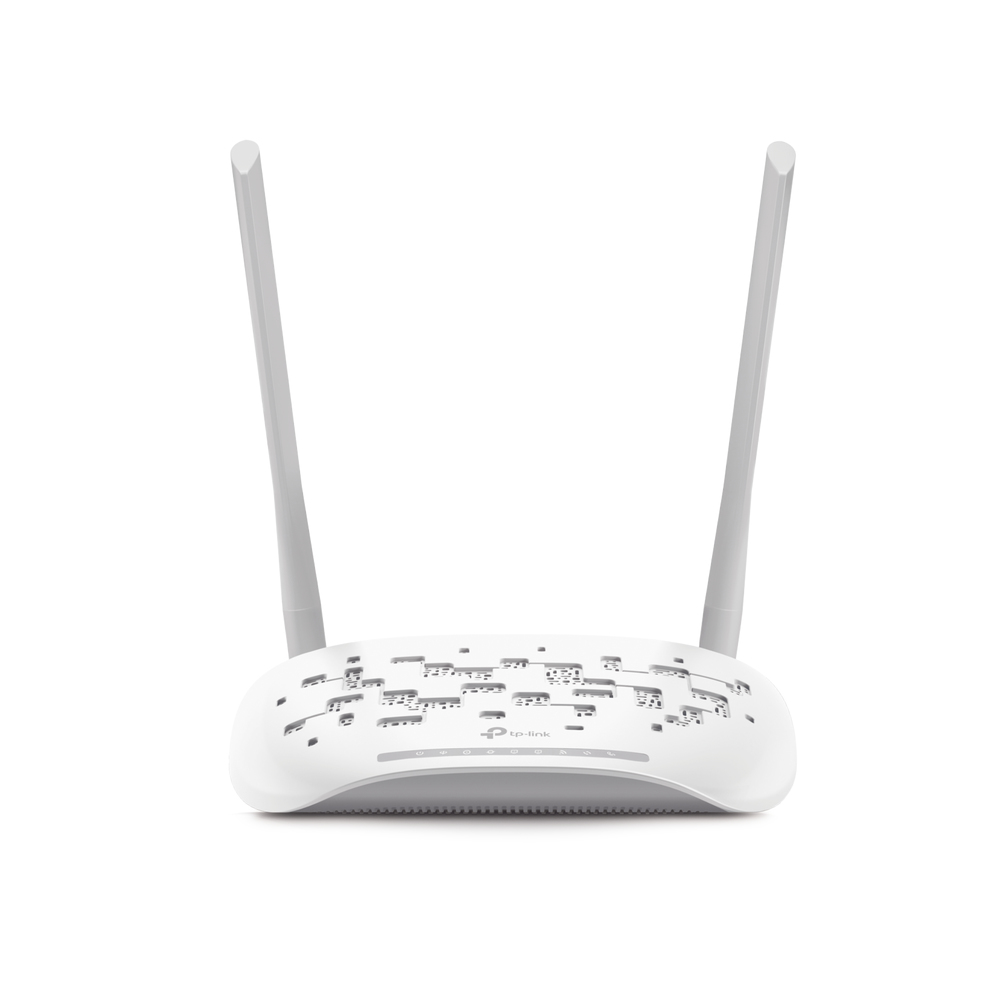

XN020-G3V wireless router Gigabit Ethernet Single-band (2.4 GHz) White
Model XN020-G3VEAN 845973086282
50 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- XN020-G3V
- Part number
- XN020-G3V
- EAN / UPC
- 845973086282
- Also known as
- TP-Link XN020-G3V wireless router Gigabit Ethernet Single-band (2.4 GHz) White
Specifications
50 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Dynamic DNS (DDNS) | Yes |
| VPN support | OpenVPN, PPTP VPN, IPSec VPN |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

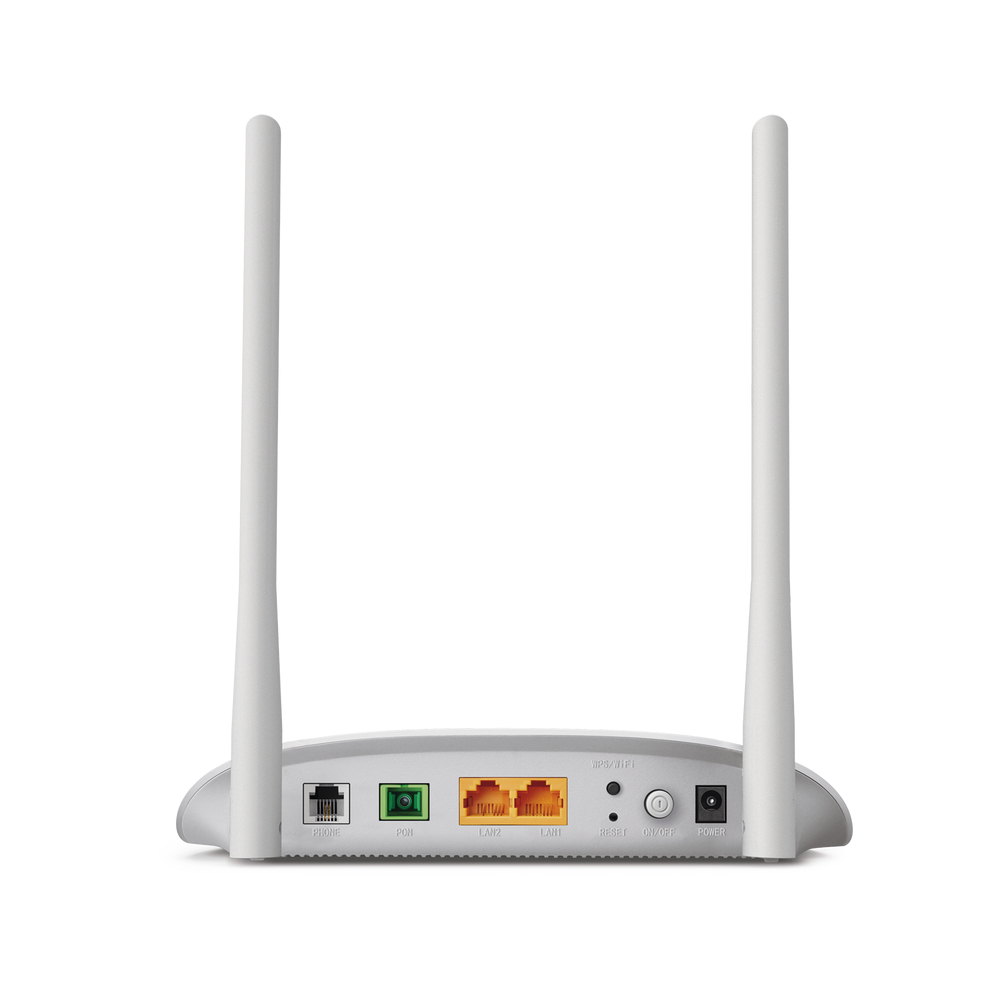

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| RJ-11 ports quantity | 1 |
| Memory card slot(s) | No |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| VoIP protocols | SIP (RFC3261)/RTP(RFC1889/3550), ITU-T G.711A/u, G.722, G.729AB, G.726, T.38 pass-through |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, Anatel |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 2 |
| Transmit power | 20 dBmW |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 0.6 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 125 mm |
| Height | 36 mm |
| Width | 181 mm |
