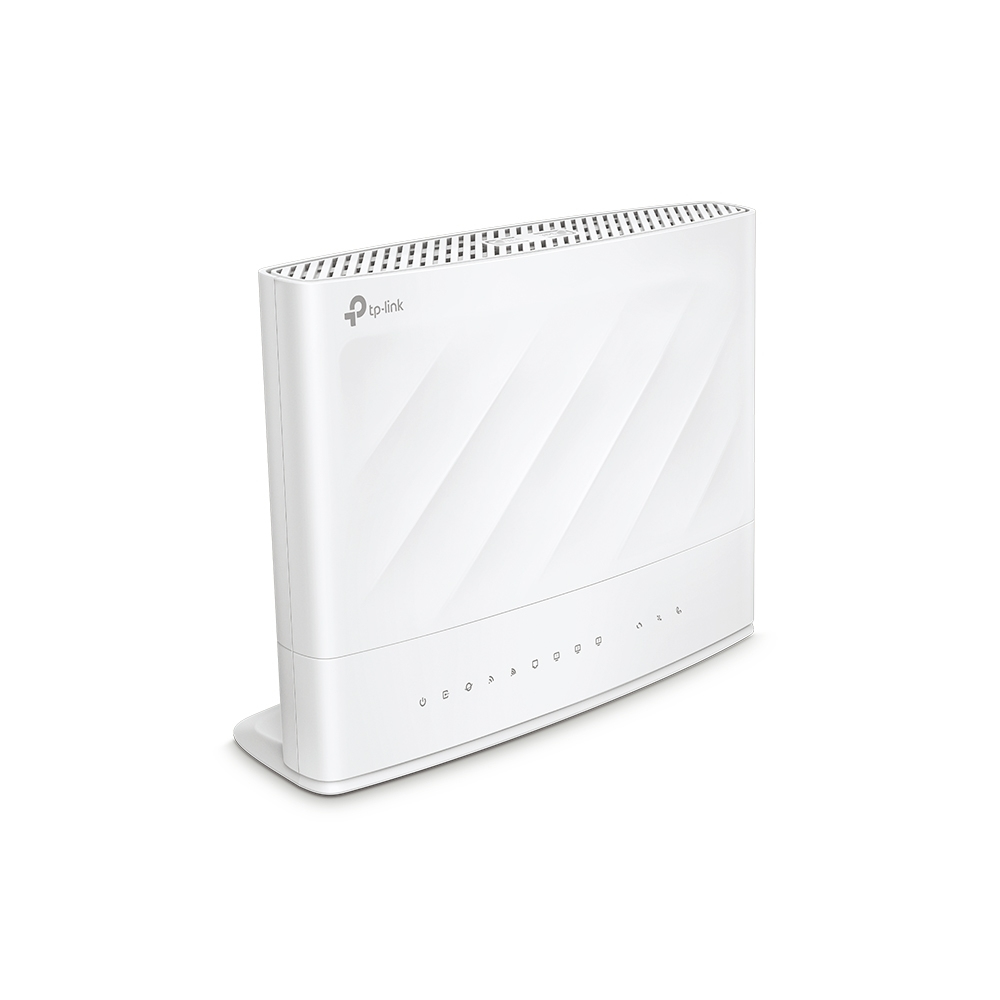

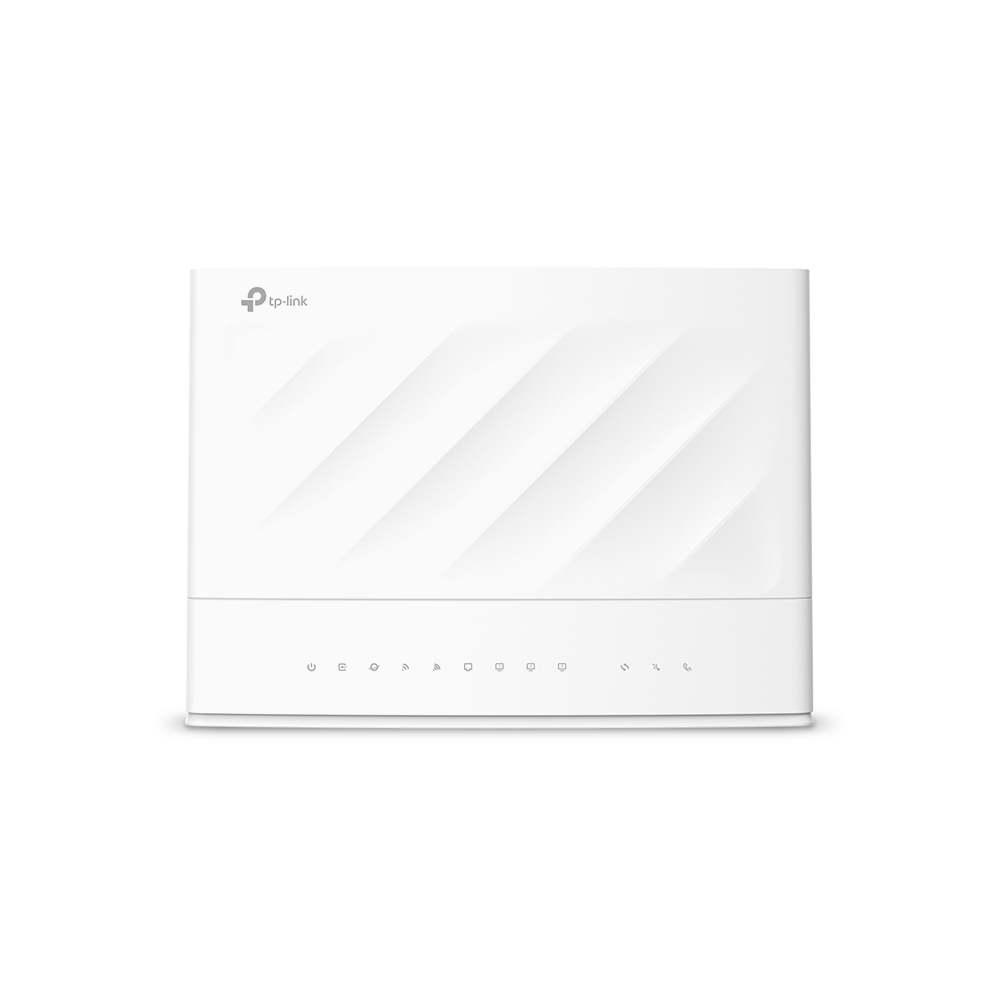

VX230v wireless router Gigabit Ethernet Dual-band (2.4 GHz
5 GHz) White
Model VX230vPart no. VX230VEAN 4897098684672
65 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- ColourWhite
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Colour
- White
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- VX230v
- Part number
- VX230V
- EAN / UPC
- 4897098684672, 4897098685259
- Also known as
- TP-Link VX230v wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Specifications
65 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-11, RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Modulation | 1024-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| VPN tunnels quantity | 16 |
| VPN support | OpenVPN, PPTP VPN, IPSec VPN |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |

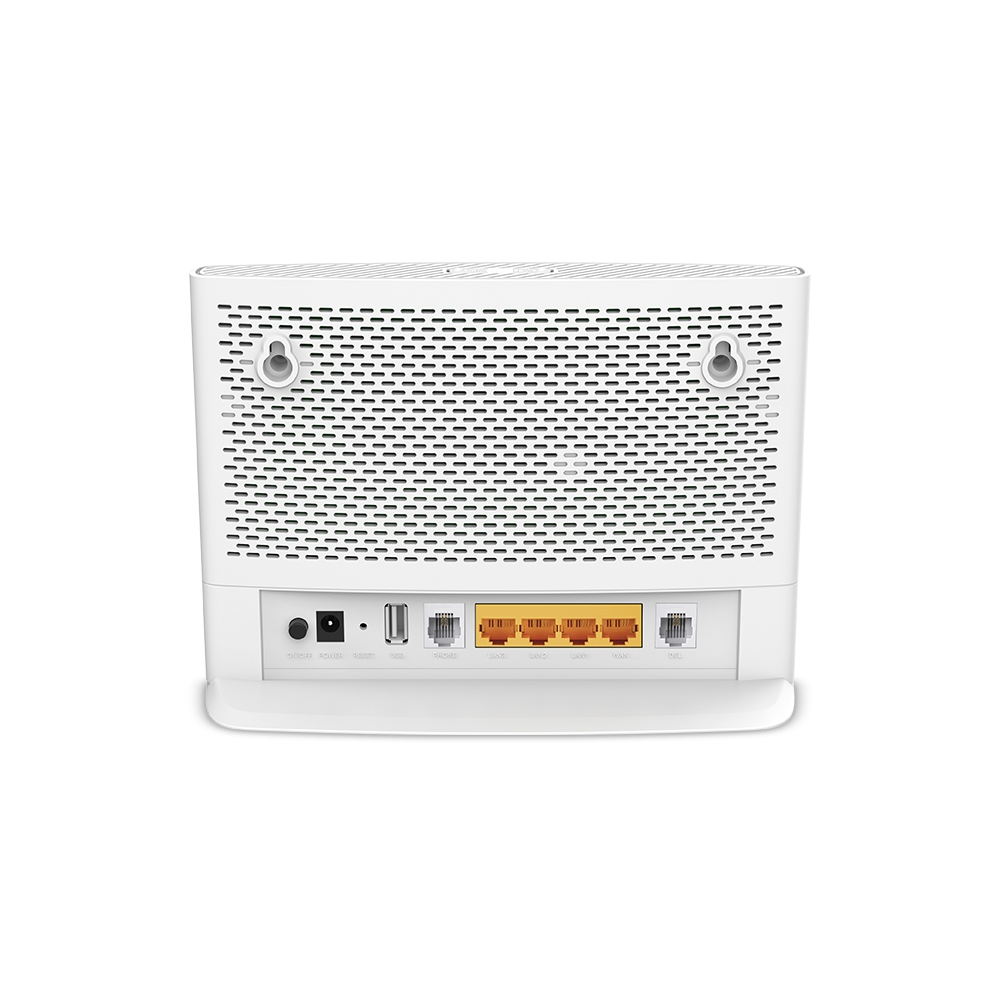

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RJ-11 ports quantity | 2 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| NAT functionality | NAT Forwarding |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | White |
| Wall mountable | Yes |
| Indication light | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 148.6 mm |
| Height | 67.5 mm |
| Width | 199.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
