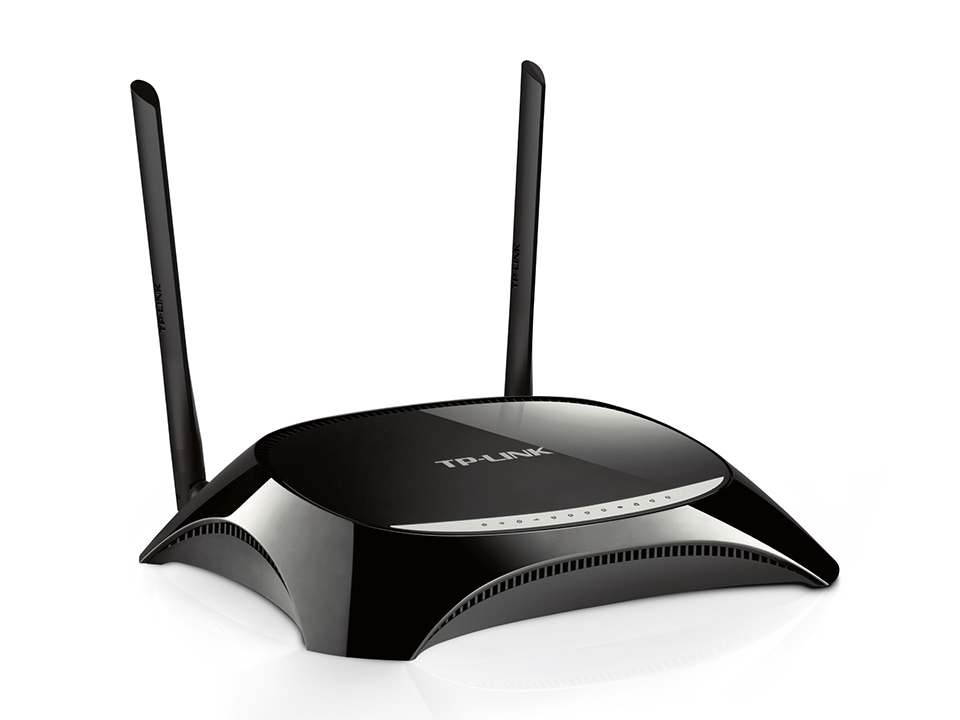

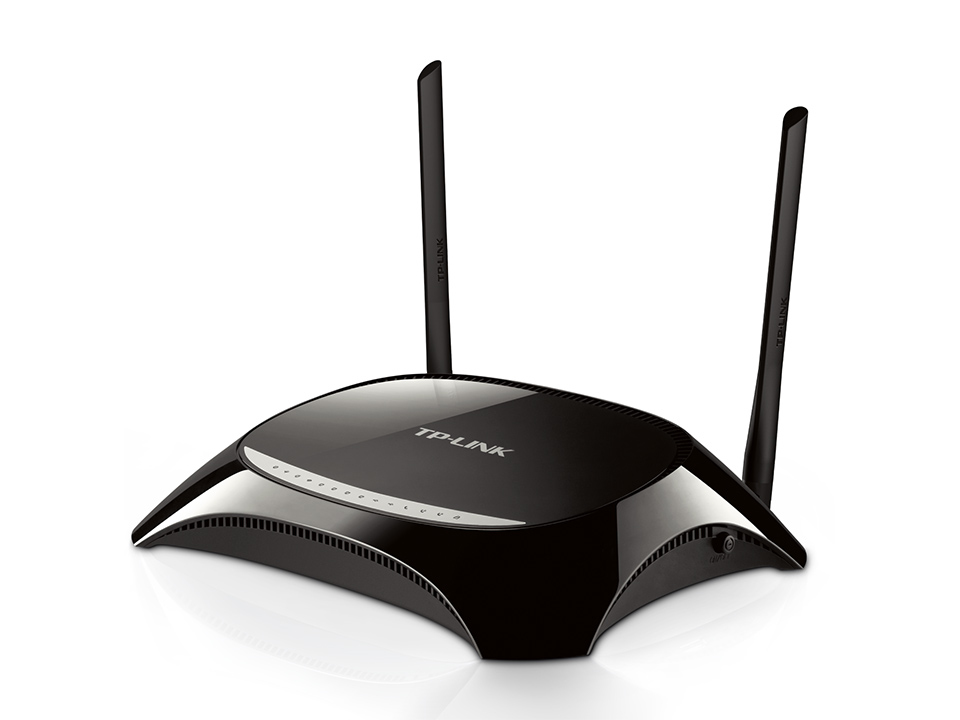

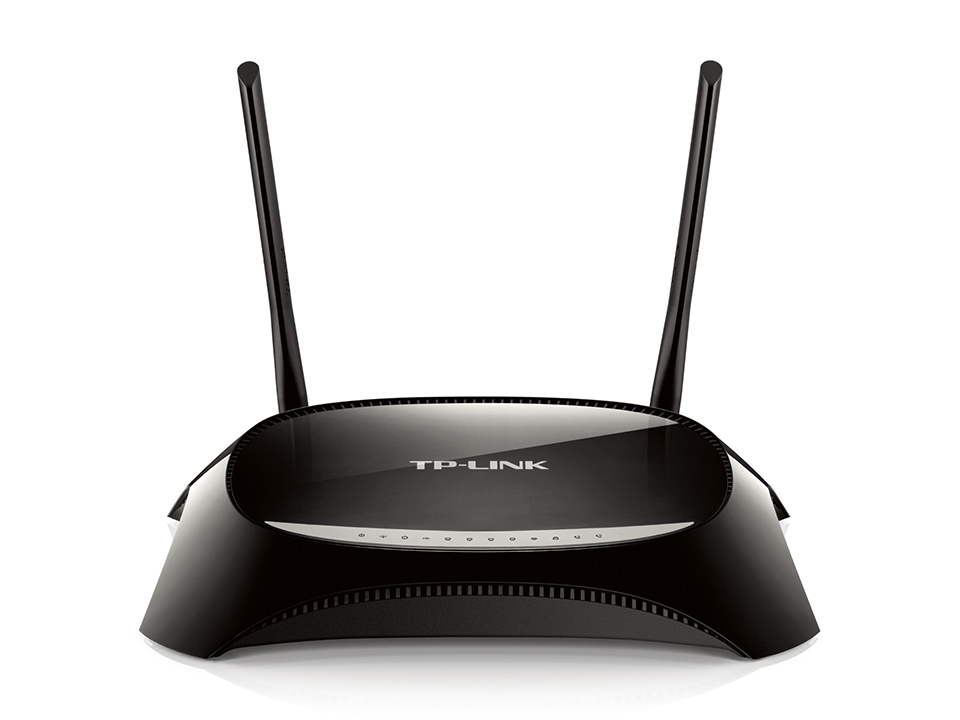

TP-Link TX-VG1530 wireless router Gigabit Ethernet Black

TP-Link TX-VG1530 wireless router Gigabit Ethernet Black

Model TX-VG1530

66 specifications
  • SpeedWi-Fi 4 (802.11n)
  • ColourBlack
  • Ethernet LANYes
  • 3GNo
  • Ethernet LAN (RJ-45) ports4
  • Authentication methodSN, SN+, FEC
See all specifications

Overview

Speed
Wi-Fi 4 (802.11n)
Colour
Black
Ethernet LAN
Yes
3G
No
Ethernet LAN (RJ-45) ports
4
Authentication method
SN, SN+, FEC
Brand
TP-Link
Model
TX-VG1530
Part number
TX-VG1530
Also known as
TP-Link TX-VG1530 wireless router Gigabit Ethernet Black

Specifications

66 specifications in 16 groups

Wireless LAN features

Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
VPN supportPPTP, L2TP, IPSec Pass-through

Mobile network

3GNo
4GNo

Ports & interfaces

Ethernet LAN (RJ-45) ports4
RJ-11 ports quantity2

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication methodSN, SN+, FEC
FirewallYes
Stateful Packet Inspection (SPI)Yes
FilteringYes
MAC address filteringYes
IP address filteringYes
URL filteringYes
Network address translation (NAT)Yes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes
Routing protocolsIGRP, RIP-1, RIP-2
Voice codecsG.711, G.711a, G.722, G.729, VAD
Management protocolsOMCI, SSL, SNMP v1/2c
VoIP protocolsSIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711
Supported network protocolsIPv6, IPv4

Design

Product colourBlack
LED indicatorsYes
On/off switchYes

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS

Antenna

Antenna designExternal
Antenna gain level (max)5 dBi
Antennas quantity2
Detachable antenna(s)Yes

Power

Power source typeDC
Output voltage12 V

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Depth177 mm
Height51 mm
Width256 mm

Other features

Mobile network connectionNo
Frequency band2.4 GHz
Frequency range2.4 - 2.4385 GHz
Input current1.5 A
Rack mountingNo
Supported protocolsITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4,
USB ports quantity1
USB version2.0
WLAN data transfer rates supported300 Mbit/s
xDSL connectionNo
