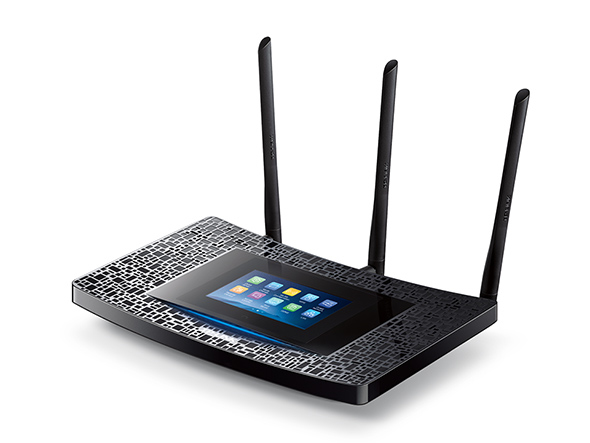

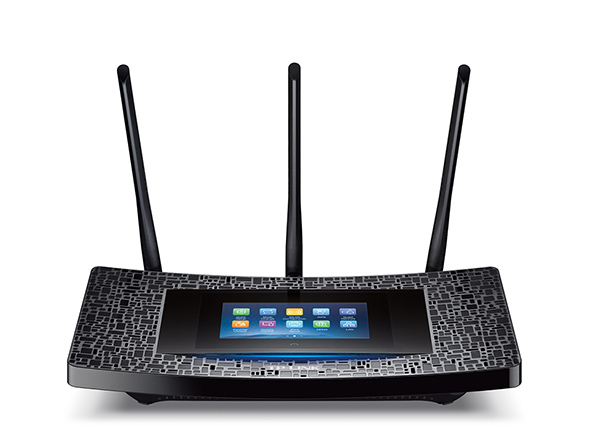

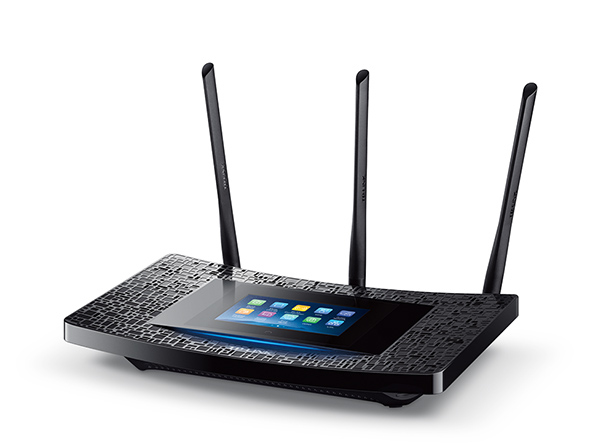

Touch P5
Model Touch P5Part no. TOUCHP5-TLEAN 6935364092306
53 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- Touch P5
- Part numbers
- TOUCHP5-TL, TOUCH P5(UK)
- EAN / UPC
- 6935364092306
- Also known as
- TP-Link Touch P5 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
53 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1300 Mbit/s |
| Modulation | 256-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
| Receiver sensitivity | 5GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -75dBm 11ac HT20: -66dBm 11ac HT40: -62dBm 11ac HT80: -59dBm 2.4G: 11g 54Mbps: -76dBm 11n HT20: -73dBm 11n HT40: -71dBm |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

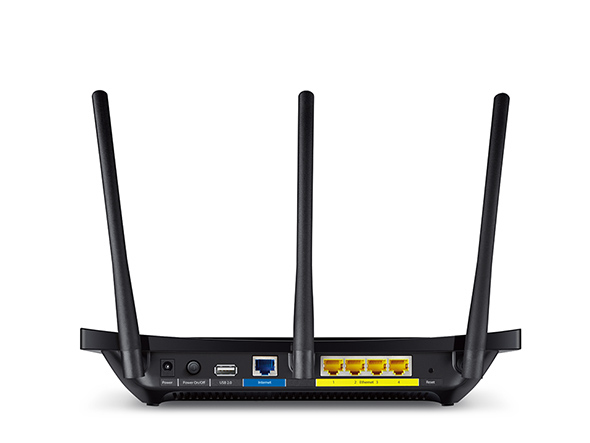

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | No |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 157 mm |
| Height | 52 mm |
| Width | 284 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
