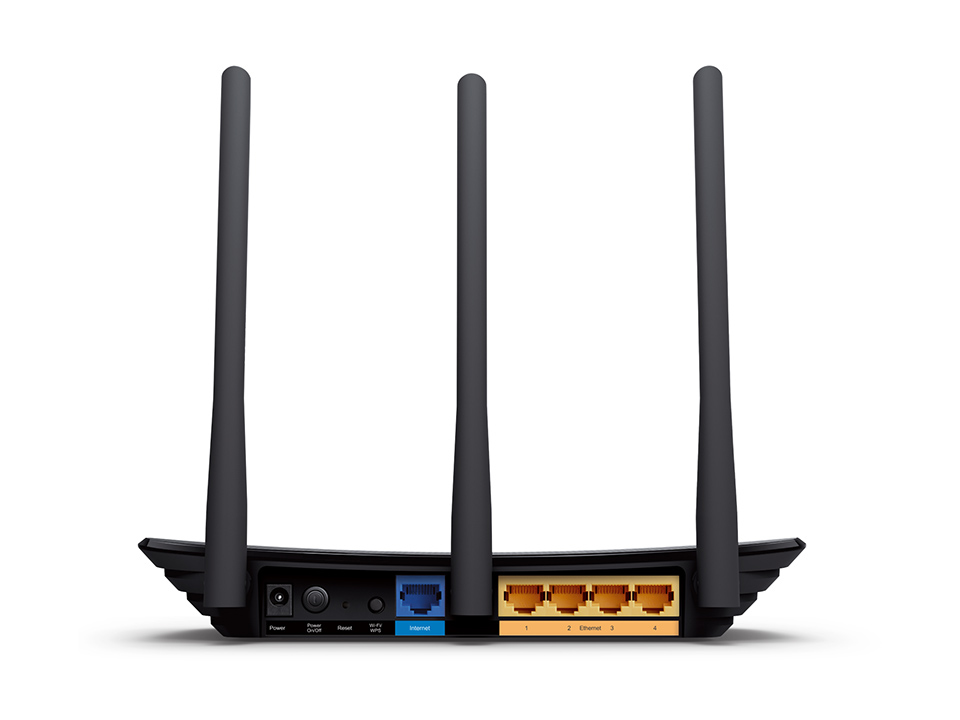

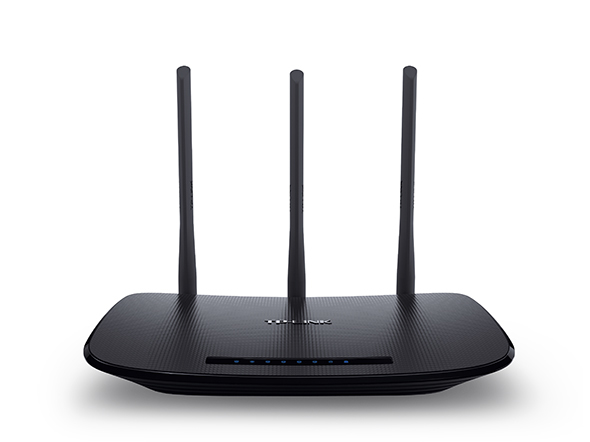

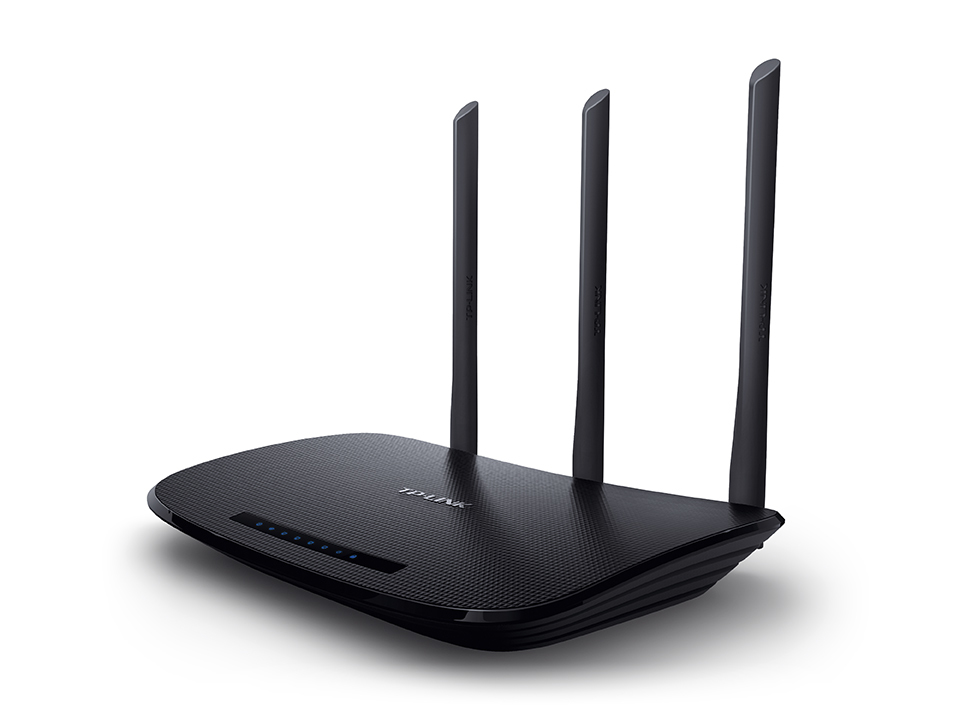

TP-Link TL-WR940N V4.0

TP-Link TL-WR940N V4.0

Model TL-WR940N V4.0Part no. TL-WR940N V4

53 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: TL-WR940N V4.0
Part number: TL-WR940N V4
Also known as: TP-Link TL-WR940N V4.0 wireless router Fast Ethernet Single-band (2.4 GHz) Black

Specifications

53 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS, Wi-Fi

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	3

Power

Specification	Value
Power source type	AC, DC
Output voltage	9 V
Output current	0.6 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	144 mm
Height	35 mm
Width	230 mm
