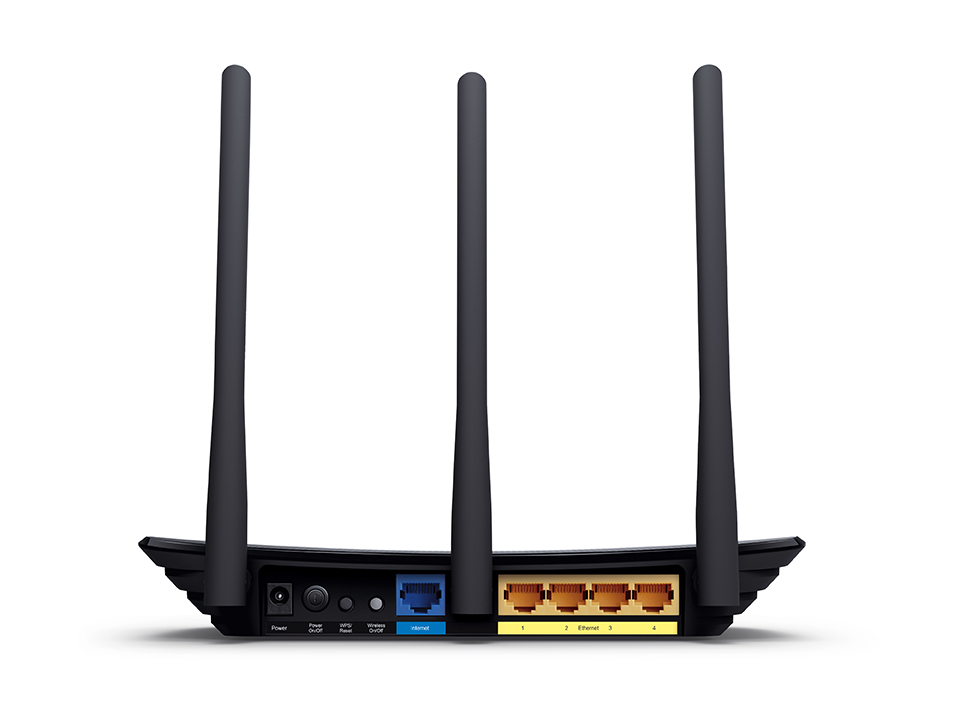

TP-Link TL-WR940N wireless router Fast Ethernet Single-band (2.4 GHz) Black

TP-Link TL-WR940N wireless router Fast Ethernet Single-band (2.4 GHz) Black

Model TL-WR940NEAN 999996594429

54 specifications

SpeedWi-Fi 4 (802.11n)
ColourBlack
Wi-Fi bandSingle-band (2.4 GHz)
Ethernet LANYes
Ethernet LAN (RJ-45) ports4
Antenna gain level (max)5 dBi

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Colour: Black
Wi-Fi band: Single-band (2.4 GHz)
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 4
Antenna gain level (max): 5 dBi

Brand: TP-Link
Category: Wireless Router
Model: TL-WR940N
Part numbers: TL-WR940N, TL-WR940N V3, TL-WR940N(EU), TL-WR940N V6
EAN / UPC: 999996594429, 132018352359, 163120466993, 191120091259 +13 more
Also known as: TP-Link TL-WR940N wireless router Fast Ethernet Single-band (2.4 GHz) Black

Specifications

54 specifications in 15 groups

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product colour	Black
Wall mountable	Yes
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna gain level (max)	5 dBi
Antennas quantity	3
Detachable antenna(s)	No

Power

Specification	Value
Power source type	AC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	144 mm
Height	35 mm
Width	230 mm

Other features

Specification	Value
WLAN data transfer rates supported	11,54,450 Mbit/s
