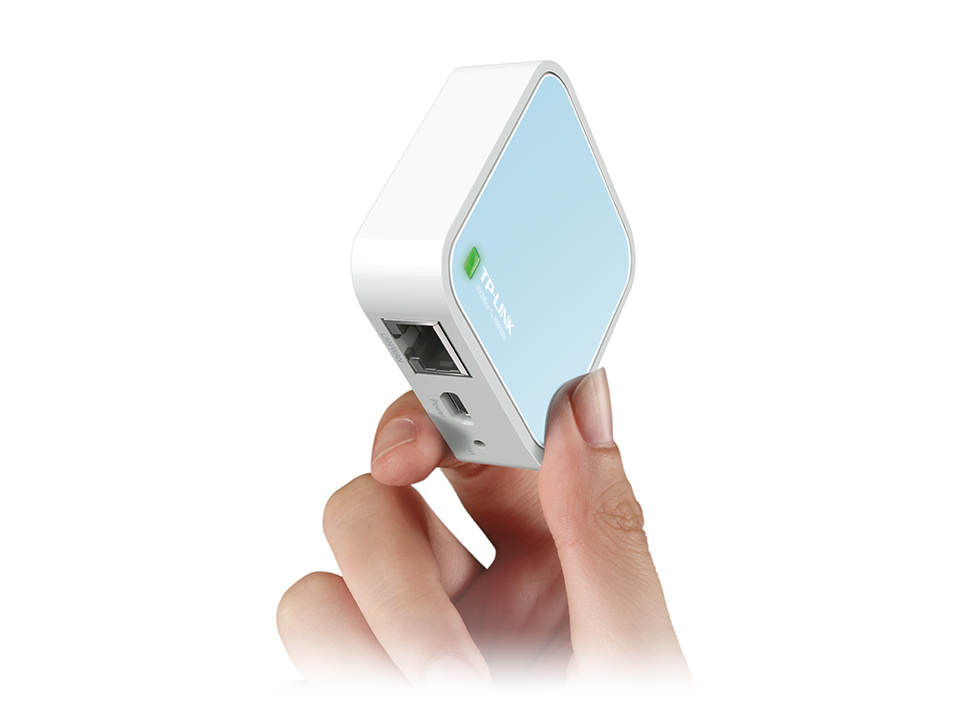

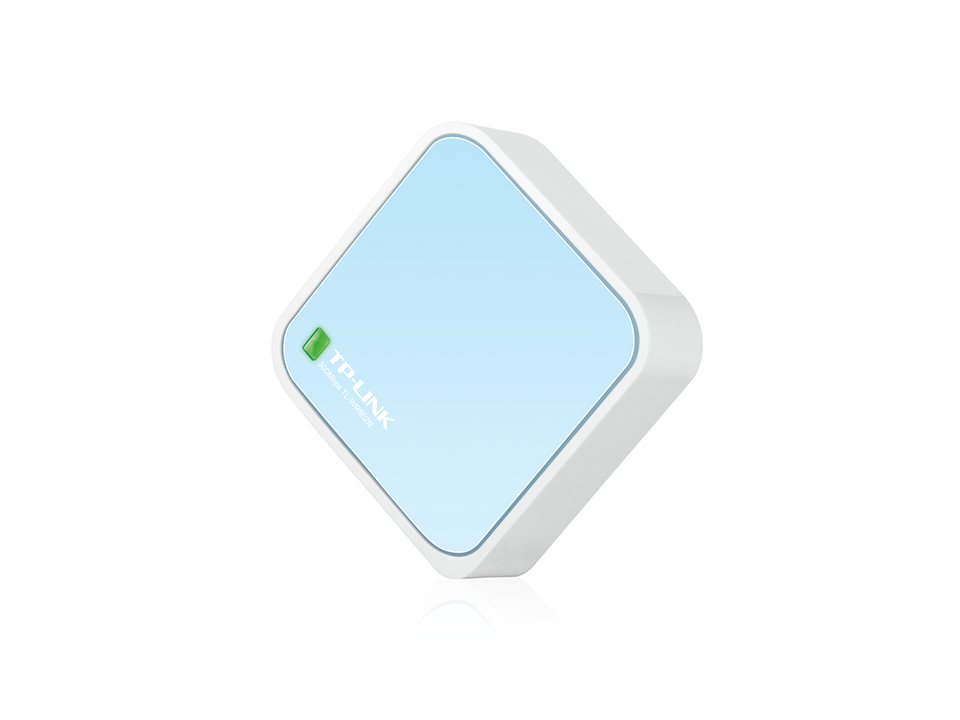

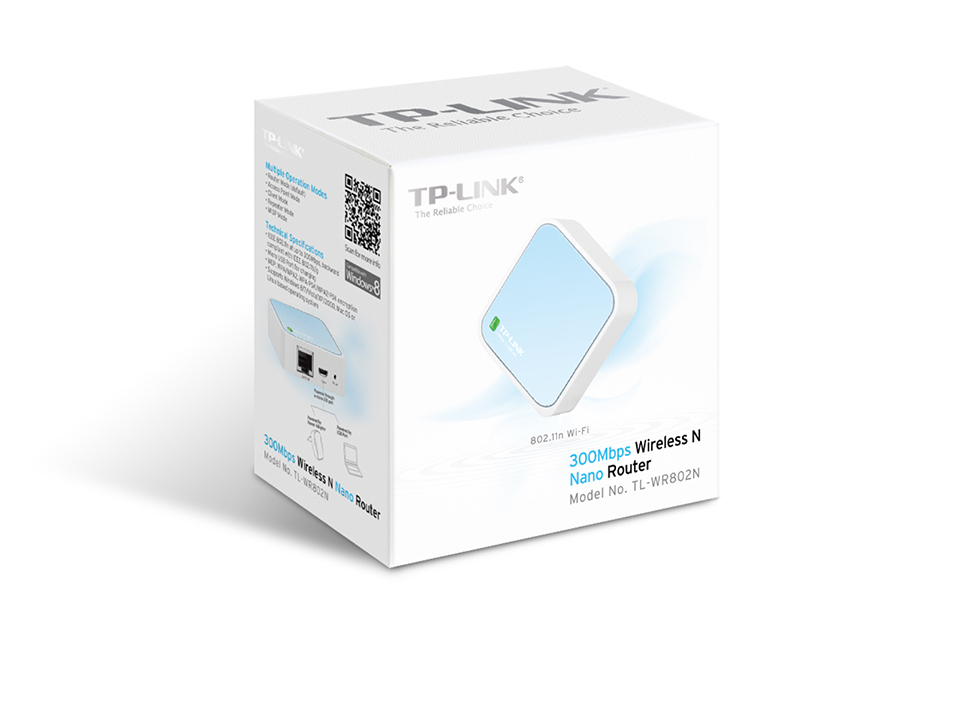

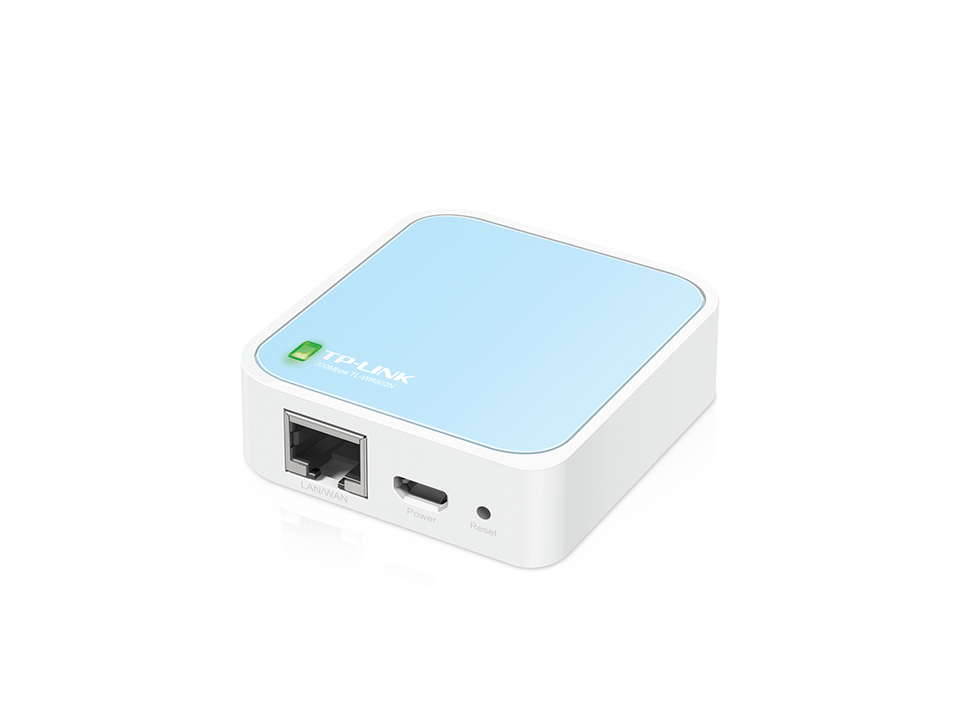

TP-Link 300Mbps Wireless N Travel WiFi Router

300Mbps Wireless N Travel WiFi Router

Model TL-WR802NEAN 6935364071714

72 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourBlue, White
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: Blue, White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: TL-WR802N
Part numbers: TL-WR802N, TL-WR802N V4
EAN / UPC: 6935364071714, 792137037829, 845973071714, 6935364071721 +16 more
Also known as: TP-Link 300Mbps Wireless N Travel WiFi Router

Specifications

72 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	Yes
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Blue, White
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Manual	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal
Receive power	270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER
Transmit power	CE: , <20dBm(2.4GHz) , FCC: , <30dBm

Power

Specification	Value
Power source type	DC
Output voltage	5 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64,
Linux operating systems supported	Yes
Mac operating systems supported	macOS

Weight & dimensions

Specification	Value
Depth	57 mm
Height	18 mm
Width	57 mm

Packaging data

Specification	Value
Package width	110 mm
Package depth	109 mm
Package height	73.5 mm
Package weight	240 g

Other features

Specification	Value
Mobile network connection	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Rack mounting	No
Supported WAN type	IP, Static IP, PPPoE, PPTP, L2TP
USB ports quantity	1
WLAN data transfer rates supported	11,54,300 Mbit/s
xDSL connection	No
