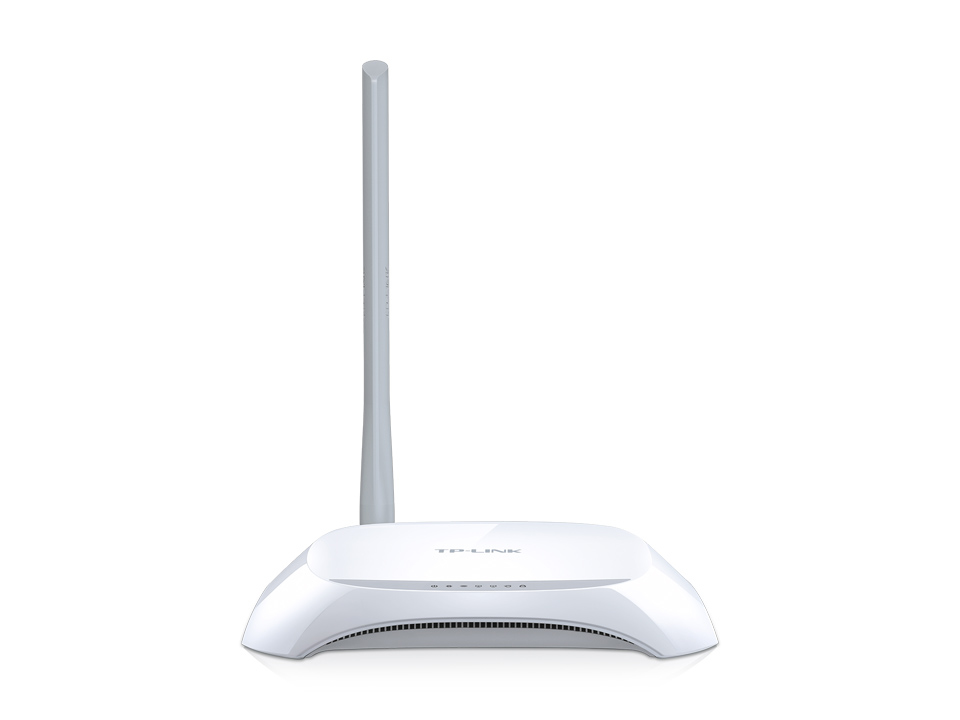

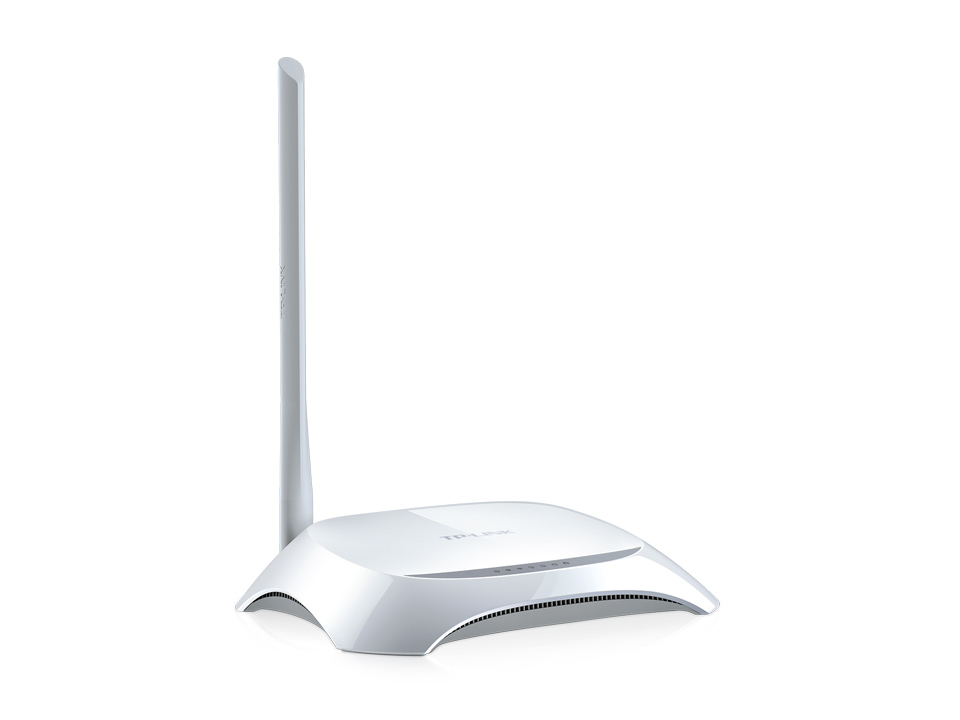

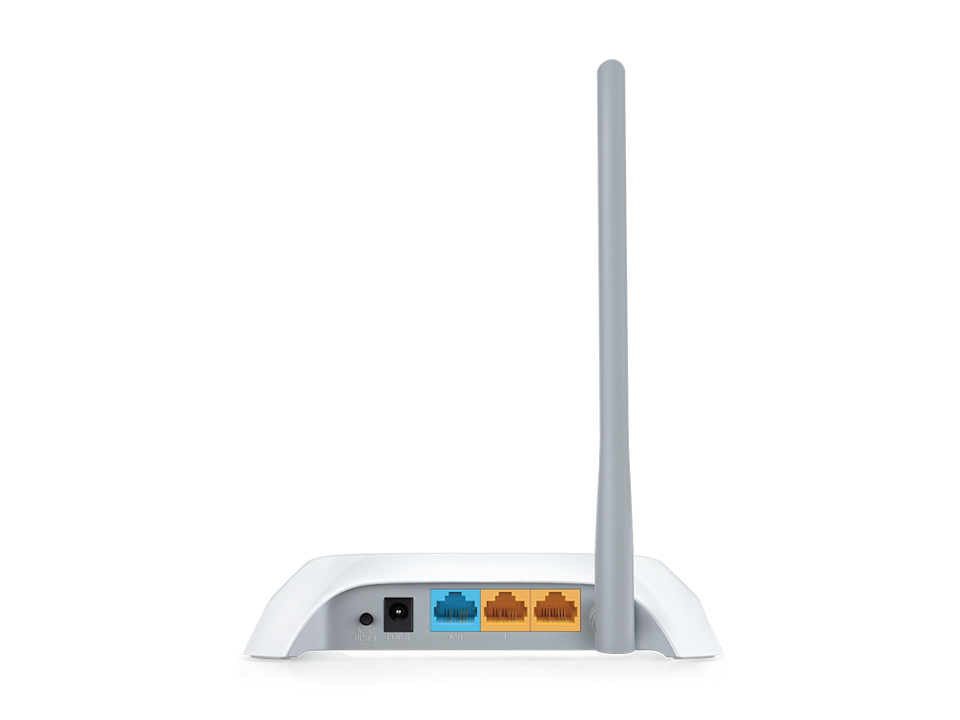

TP-Link TL-WR720N wireless router Fast Ethernet Single-band (2.4 GHz) White

Model TL-WR720NEAN 7755774212311

58 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourWhite
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: TL-WR720N
Part number: TL-WR720N
EAN / UPC: 7755774212311, 021112579314, 031113205068, 080050242568 +10 more
Also known as: TP-Link TL-WR720N wireless router Fast Ethernet Single-band (2.4 GHz) White

Specifications

58 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	No
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WDS, WEP, WPA-PSK, WPA2, WPA2-PSK
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	PPTP, L2TP, IPSec, TCP/IP, DHCP, PPPoE

Design

Specification	Value
Product type	Tabletop router
Product colour	White

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi

Power

Specification	Value
Power source type	AC
Output voltage	5 V
Output current	0.6 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	122 mm
Height	32 mm
Width	158 mm

Other features

Specification	Value
Frequency range	2.4 - 2.4835 GHz
Networking features	Fast Ethernet
WLAN data transfer rates supported	11,54,150 Mbit/s
