TP-Link TL-WR543G wireless router Fast Ethernet Black, White

TP-Link TL-WR543G wireless router Fast Ethernet Black, White

Model TL-WR543GEAN 845973051204

50 specifications
  • Speed802.11g
  • ColourBlack, White
  • Ethernet WANYes
  • 3GNo
  • Ethernet LAN (RJ-45) ports4
  • Antenna designExternal
See all specifications

Overview

Speed
802.11g
Colour
Black, White
Ethernet WAN
Yes
3G
No
Ethernet LAN (RJ-45) ports
4
Antenna design
External
Brand
TP-Link
Model
TL-WR543G
Part number
TL-WR543G
EAN / UPC
845973051204, 6935364051204, 8459730512048
Also known as
TP-Link TL-WR543G wireless router Fast Ethernet Black, White

Specifications

50 specifications in 17 groups

WAN connection

Ethernet WANYes

Wireless LAN features

Top Wi-Fi standard802.11g
Wi-Fi standards802.11b, 802.11g

Network

Ethernet LANYes
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.3
VPN supportPPTP, L2TP, IPSec

Mobile network

3GNo
4GNo

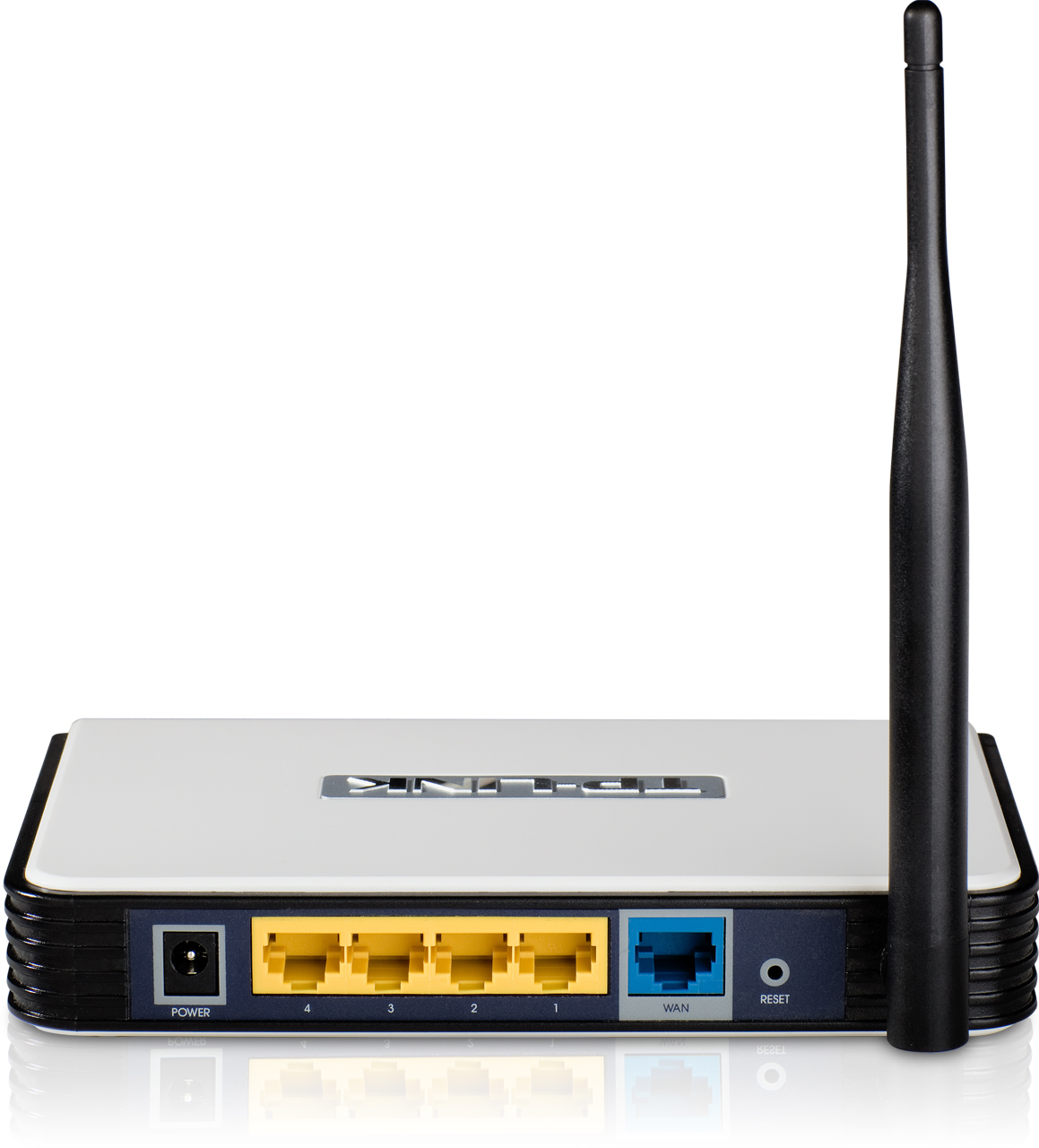

Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes

Security

Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, WDS, WPA, WPA-PSK, WPA2, WPA2-PSK
FilteringYes
MAC address filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes

Design

Product colourBlack, White
LED indicatorsYes

Packaging content

AC adapter includedYes
Quick start guideYes

Certificates

CertificationCE, FCC, RoHS

Antenna

Antenna designExternal
Antenna gain level (max)5 dBi
Antennas quantity1
Detachable antenna(s)Yes
Transmit power0 dBmW

Power

Power source typeAC

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C

System requirements

Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimat
Linux operating systems supportedYes

Weight & dimensions

Depth111 mm
Height30 mm
Width174 mm

Other features

Mobile network connectionNo
Filtering descriptionIP, Domain
Frequency band2.4 GHz
Input current0.6 A
Rack mountingNo
WLAN data transfer rates supported11,54 Mbit/s
xDSL connectionNo
