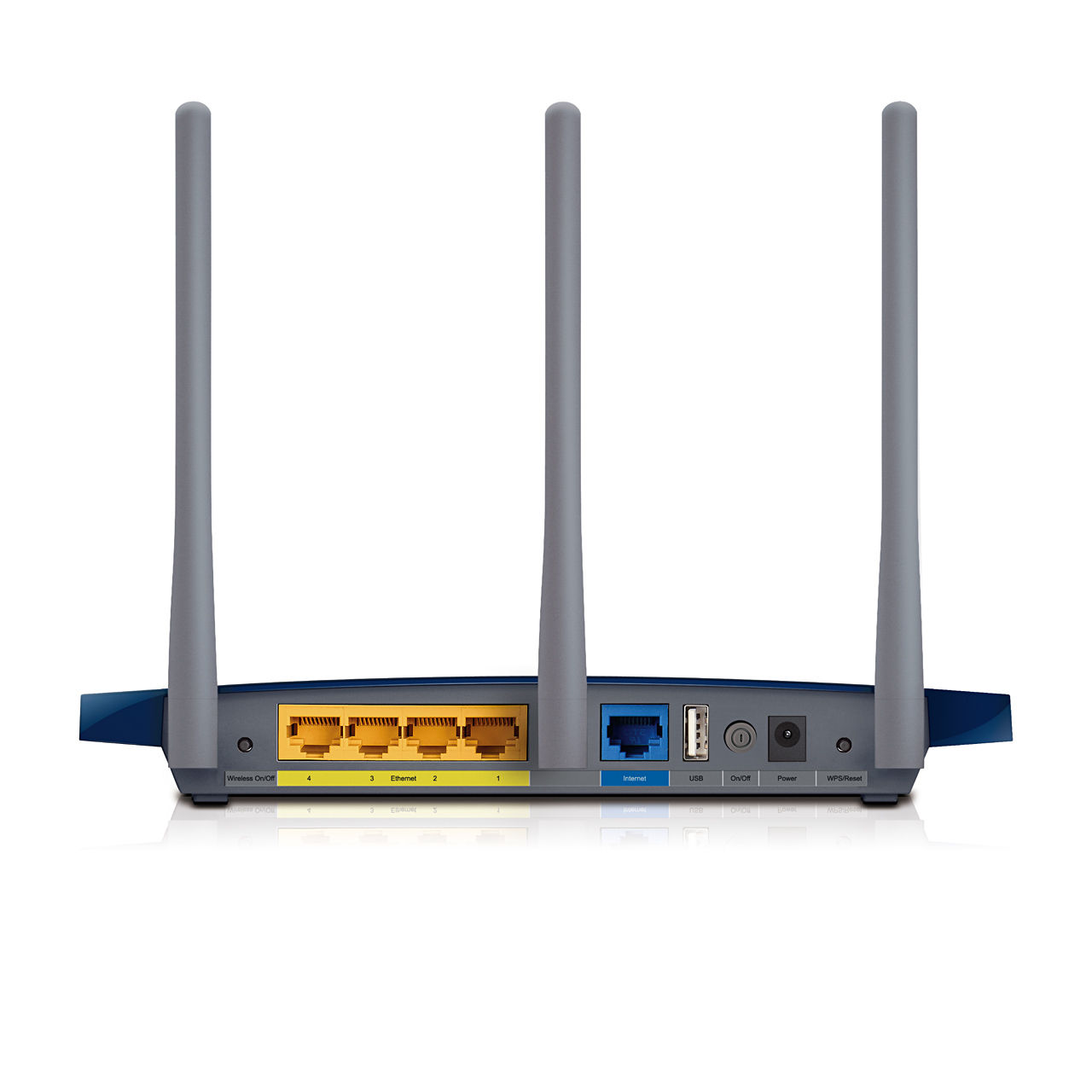

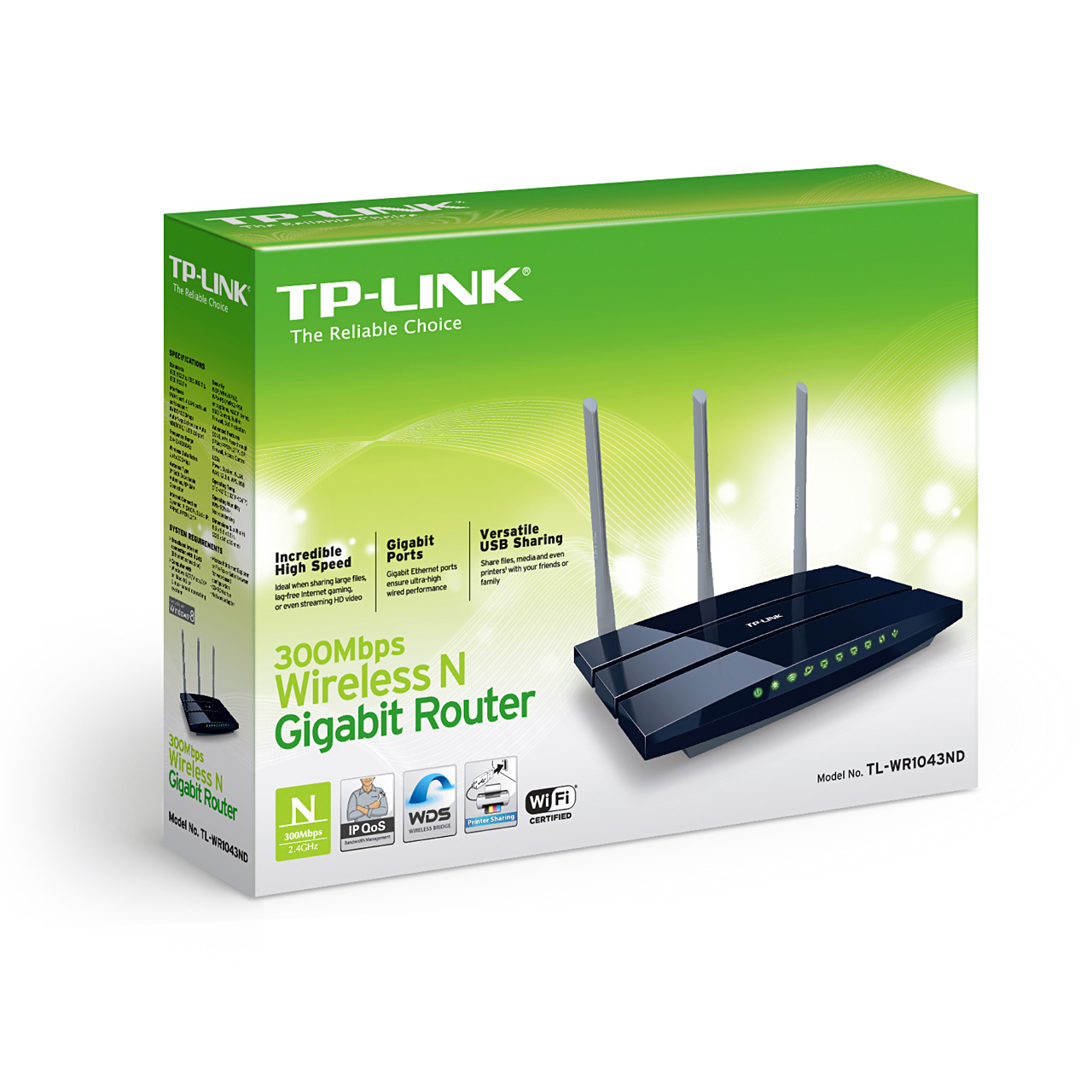

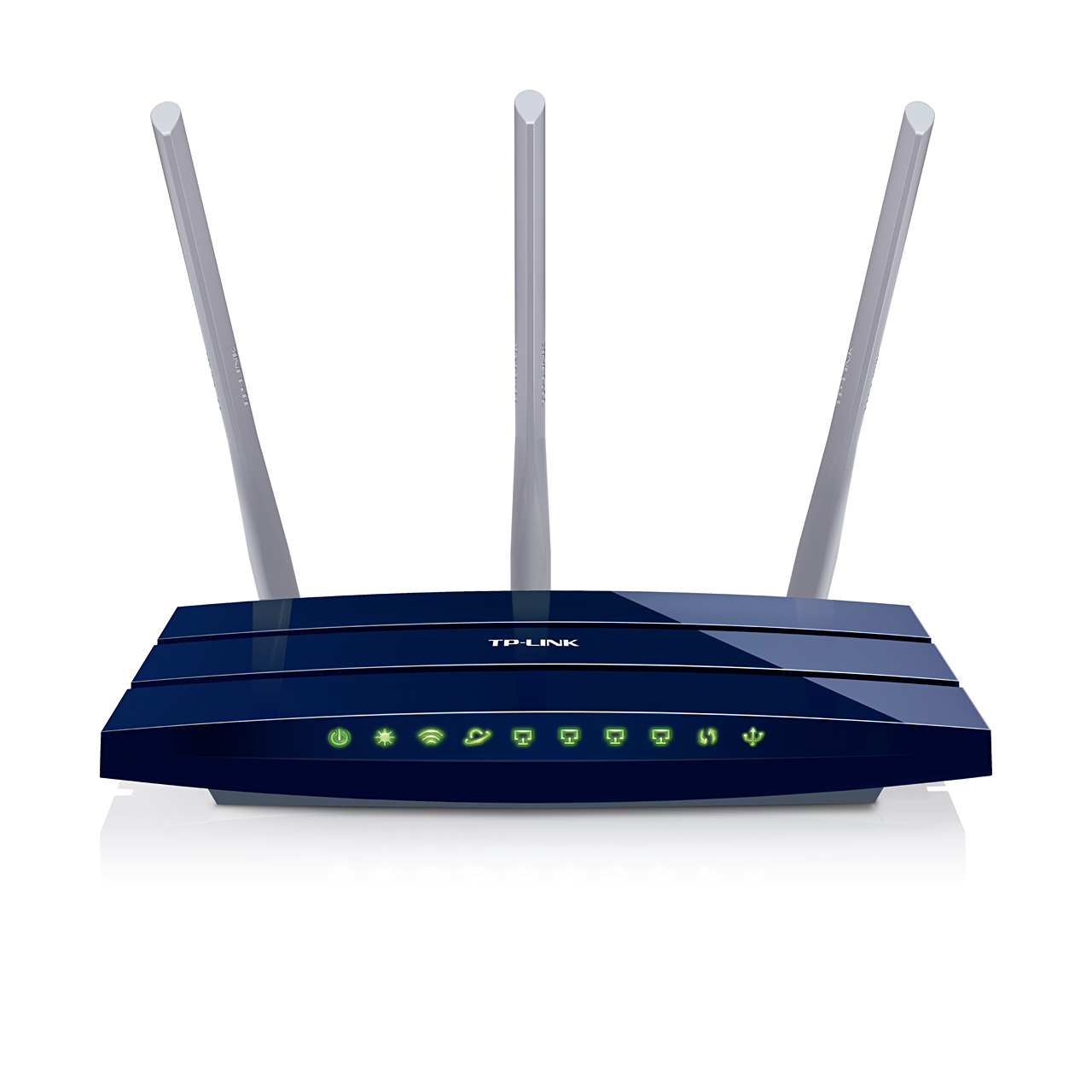

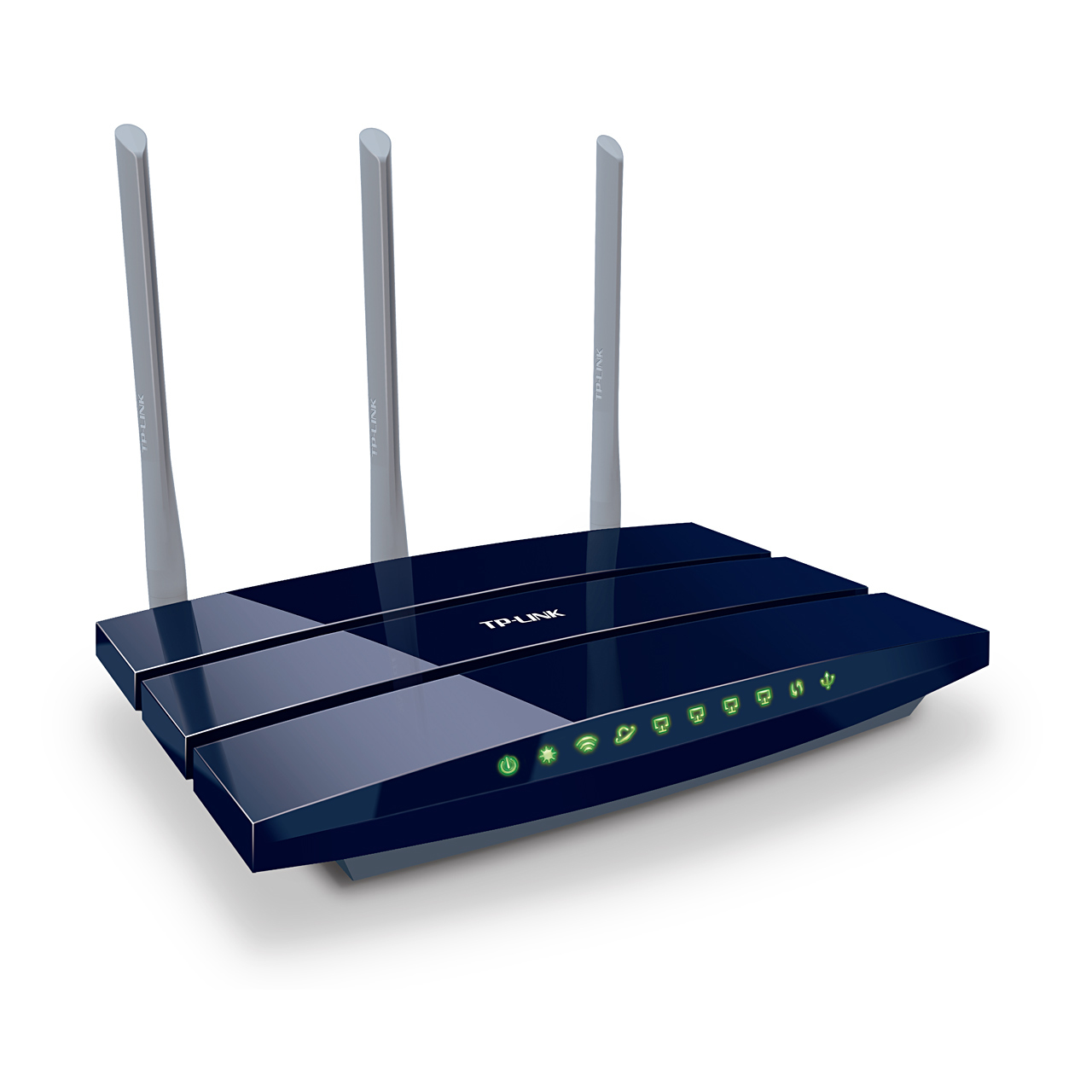

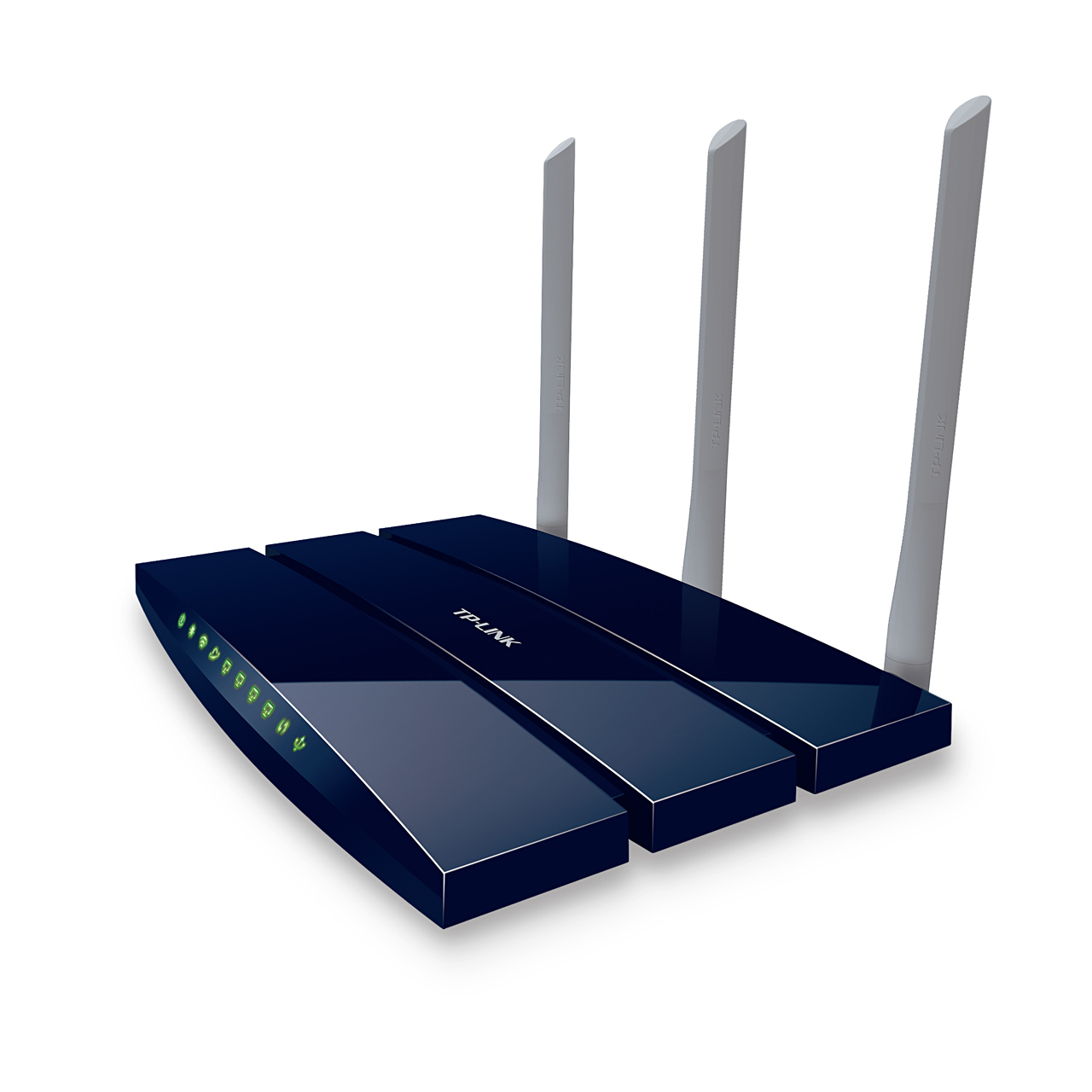

TP-Link TL-WR1043ND wireless router Gigabit Ethernet Blue

Model TL-WR1043NDPart no. TL-WR1043ND V3EAN 5052184305377

65 specifications

SpeedWi-Fi 4 (802.11n)
ColourBlue
Ethernet WANYes
3GNo
Ethernet LAN (RJ-45) ports4
Antenna designExternal

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Colour: Blue
Ethernet WAN: Yes
3G: No
Ethernet LAN (RJ-45) ports: 4
Antenna design: External

Brand: TP-Link
Category: Wireless Router
Model: TL-WR1043ND
Part numbers: TL-WR1043ND V3, TL-WR1043ND, TL-WR1043ND(DE), TL-WR1043ND(DE)/KIT
EAN / UPC: 5052184305377, 071090289460, 230494831754, 801940086808 +9 more
Also known as: TP-Link TL-WR1043ND wireless router Gigabit Ethernet Blue

Specifications

65 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Full duplex	Yes
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product colour	Blue
LED indicators	Yes

Packaging content

Specification	Value
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Antennas quantity	3
Detachable antenna(s)	Yes

Features

Specification	Value
Plug and Play	Yes

Power

Specification	Value
Output voltage	12 V
Power consumption (typical)	10 W
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	141 mm
Height	30 mm
Width	225 mm

Other features

Specification	Value
Mobile network connection	No
Filtering description	ID, IP
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
USB ports quantity	1
USB version	2.0
WLAN data transfer rates supported	11,54,450 Mbit/s
xDSL connection	No
