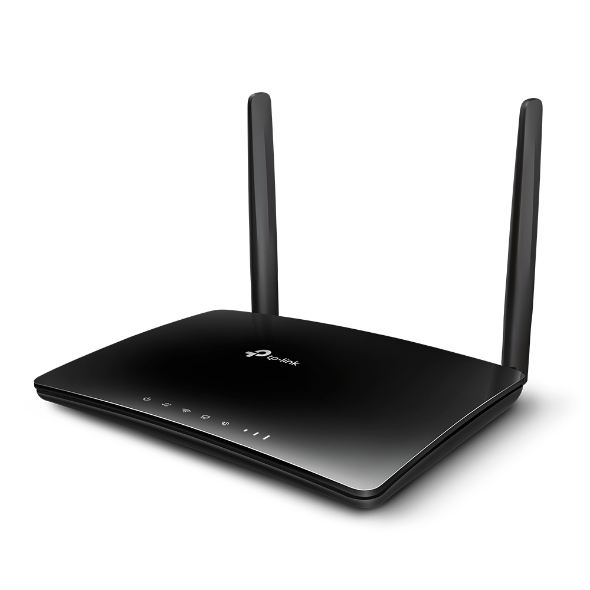

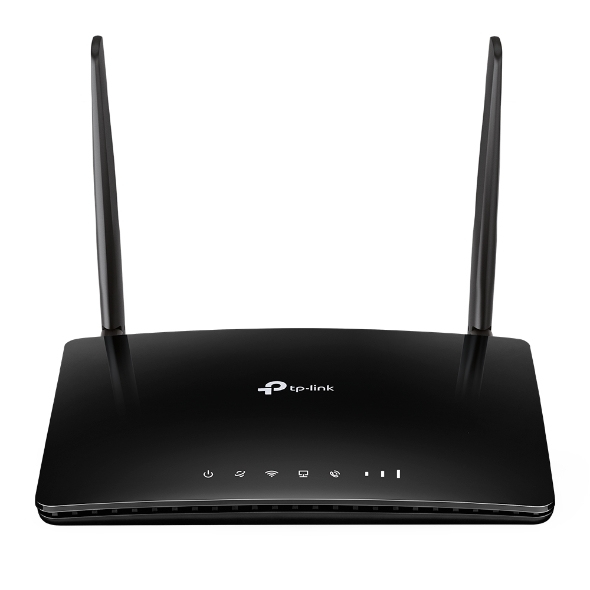

TL-MR6500v(APAC) wireless router Fast Ethernet Single-band (2.4 GHz) Black
Model TL-MR6500v(APAC)Part no. TL-MR6500V(APAC)EAN 6935364006822
56 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
- Dual SIM supportNo
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Dual SIM support
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- TL-MR6500v(APAC)
- Part number
- TL-MR6500V(APAC)
- EAN / UPC
- 6935364006822
- Also known as
- TP-Link TL-MR6500v(APAC) wireless router Fast Ethernet Single-band (2.4 GHz) Black
Specifications
56 specifications in 17 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN server | PPTP VPN, OpenVPN |
| VPN Passthrough | Yes |
| Receiver sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm |
Mobile network
| Specification | Value |
|---|---|
| Dual SIM support | No |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card type | NanoSIM |

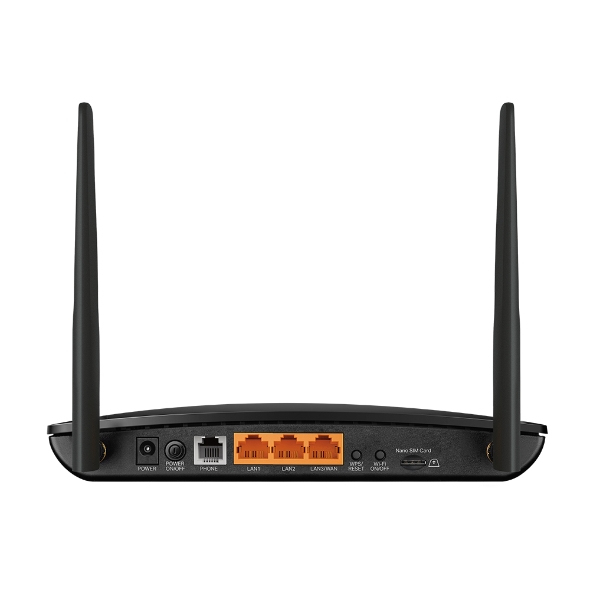

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| RJ-11 ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | DoS, SPI Firewall, IP & MAC Address Binding |
| DMZ support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| VoIP protocols | SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 141 mm |
| Height | 33.6 mm |
| Width | 202 mm |
Packaging data
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
