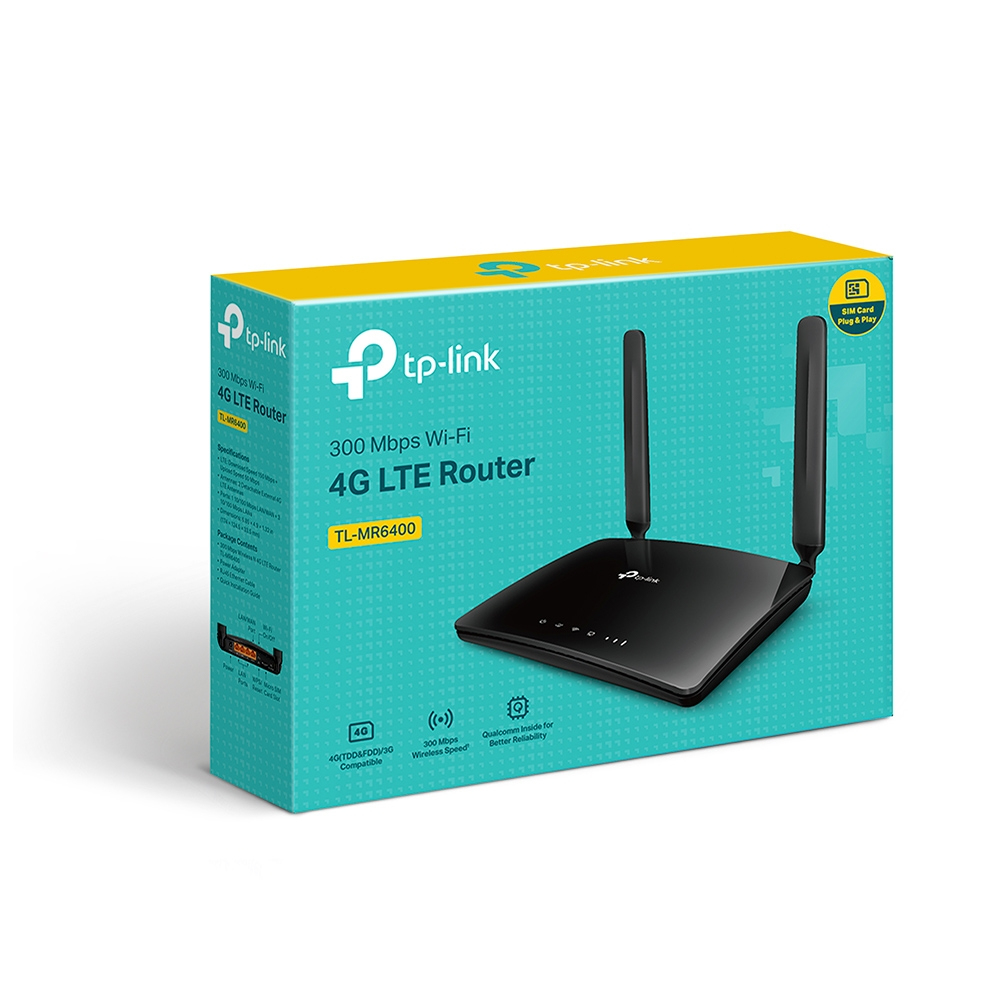

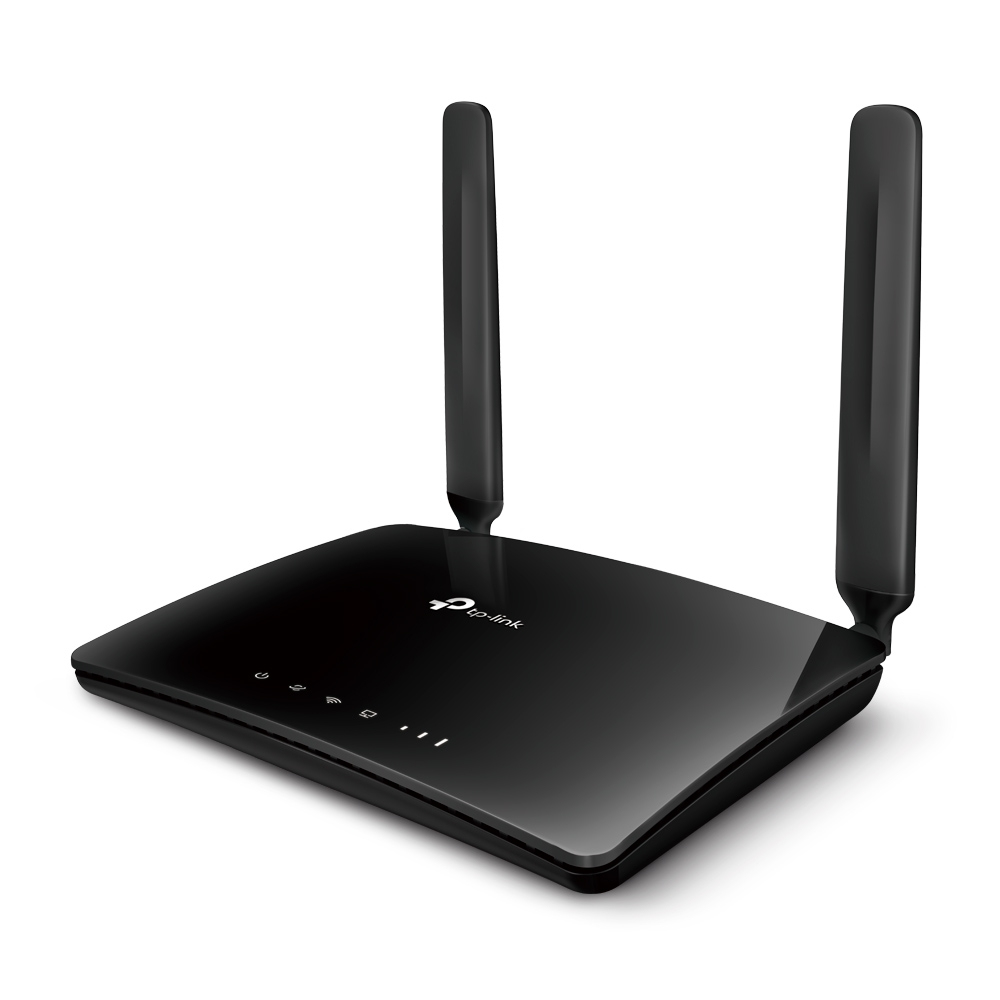

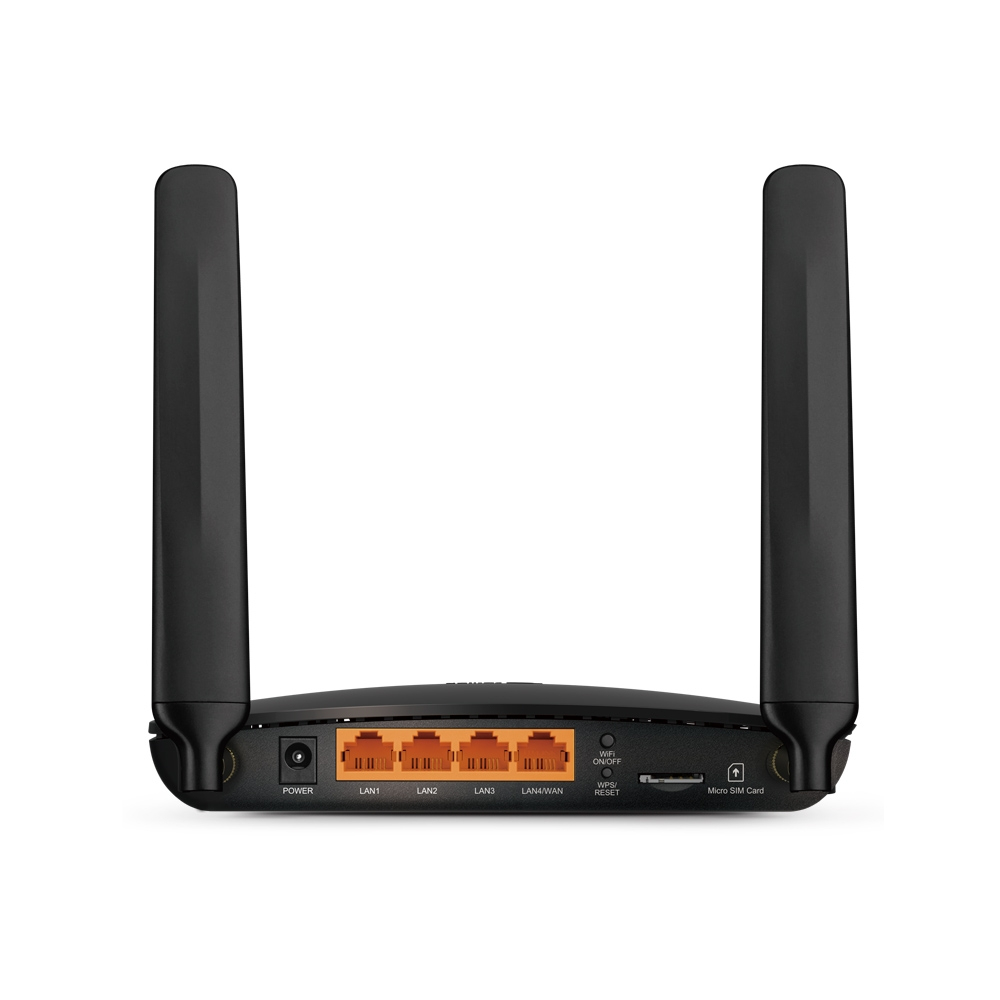

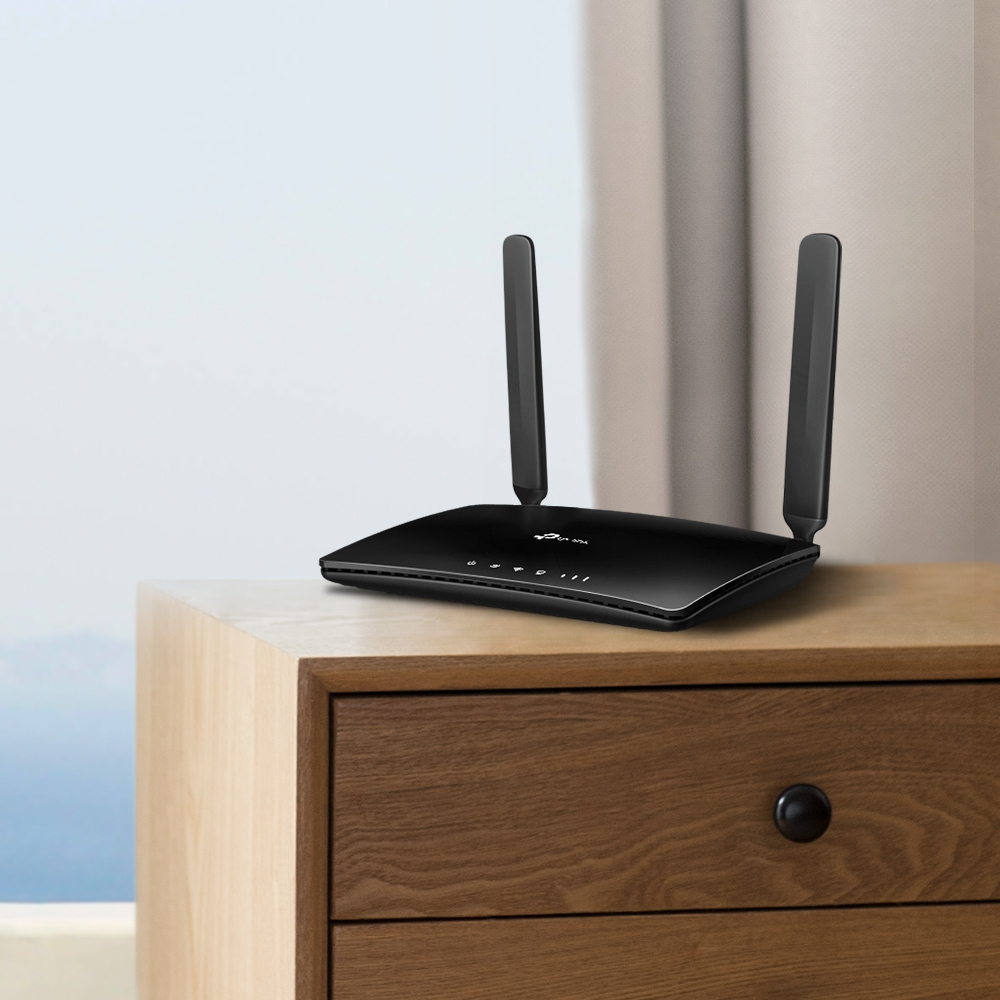

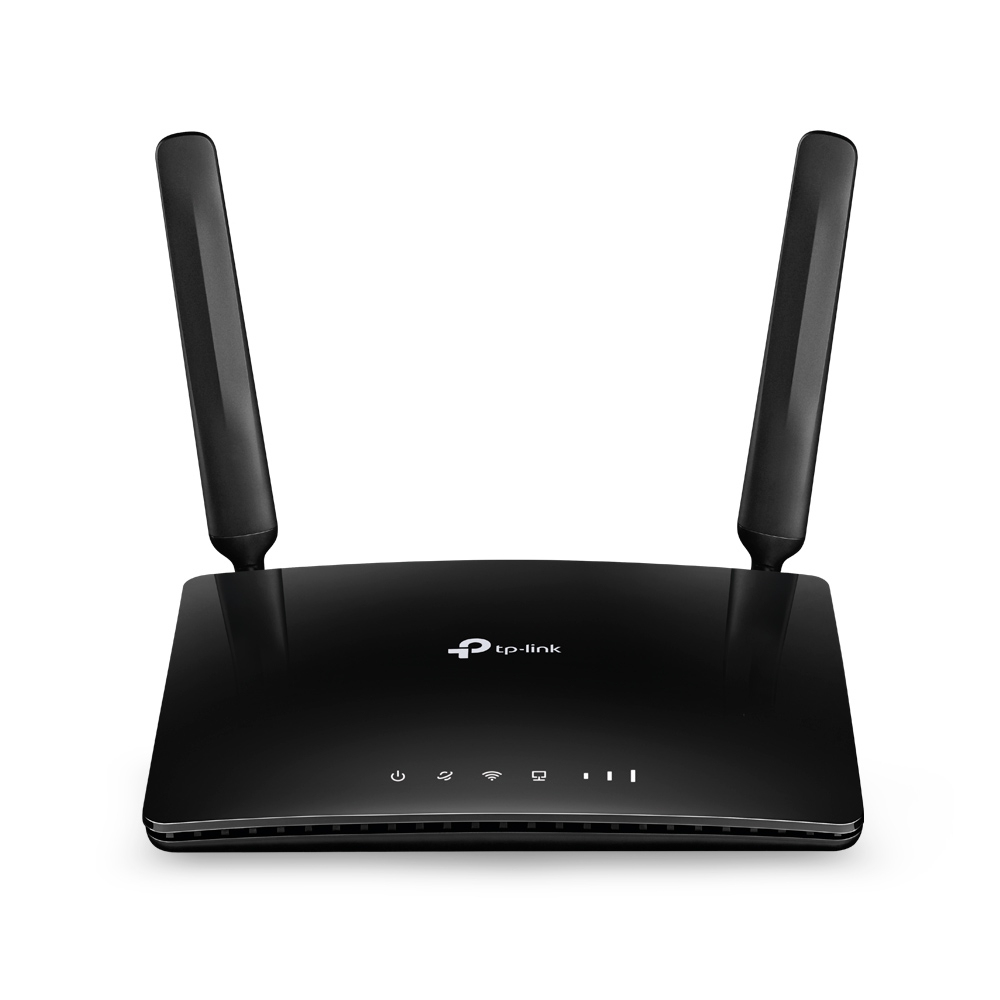

TL-MR6400 V5
Model TL-MR6400 V5
67 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
- Mobile network generation4G
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Mobile network generation
- 4G
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- TL-MR6400 V5
- Part number
- TL-MR6400 V5
- Also known as
- TP-Link TL-MR6400 V5 wireless router Fast Ethernet Single-band (2.4 GHz) 4G Black
Specifications
67 specifications in 16 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec, OpenVPN |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 5G | No |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| SIM card type | MicroSIM |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| Indication light | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 2 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 124.5 mm |
| Height | 33.5 mm |
| Width | 174 mm |
