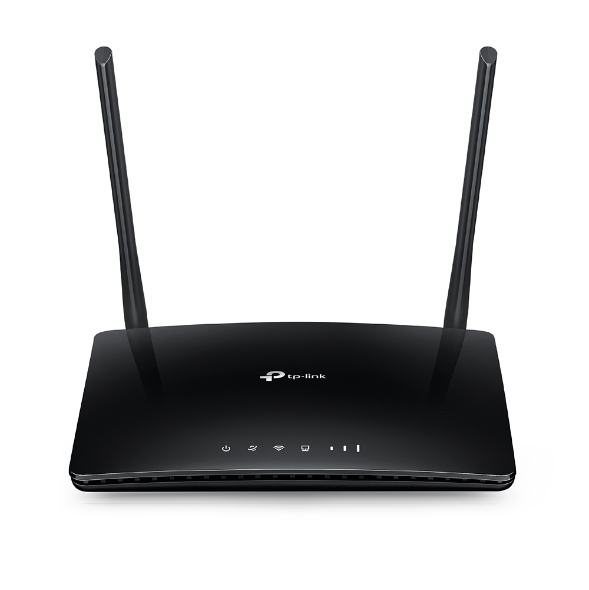

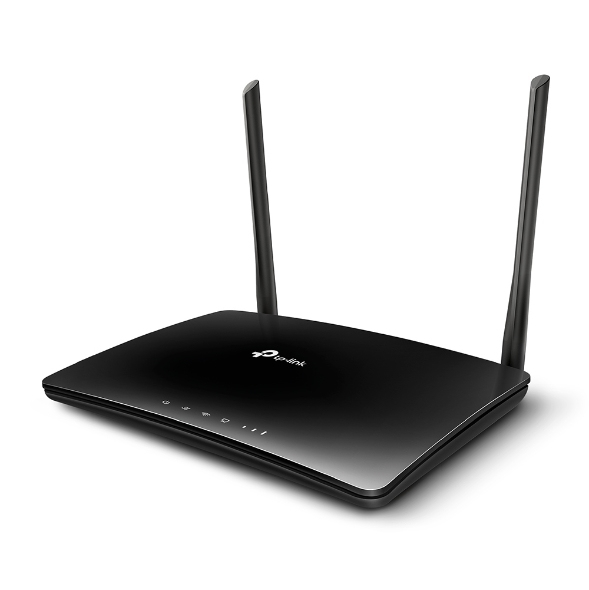

TP-Link TL-MR6400 V3

TL-MR6400 V3

Model TL-MR6400 V3

68 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourBlack
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
Mobile network generation4G

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
Mobile network generation: 4G

Brand: TP-Link
Category: Wireless Router
Model: TL-MR6400 V3
Part number: TL-MR6400 V3
Also known as: TP-Link TL-MR6400 V3 wireless router Fast Ethernet Single-band (2.4 GHz) 4G Black

Specifications

68 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No

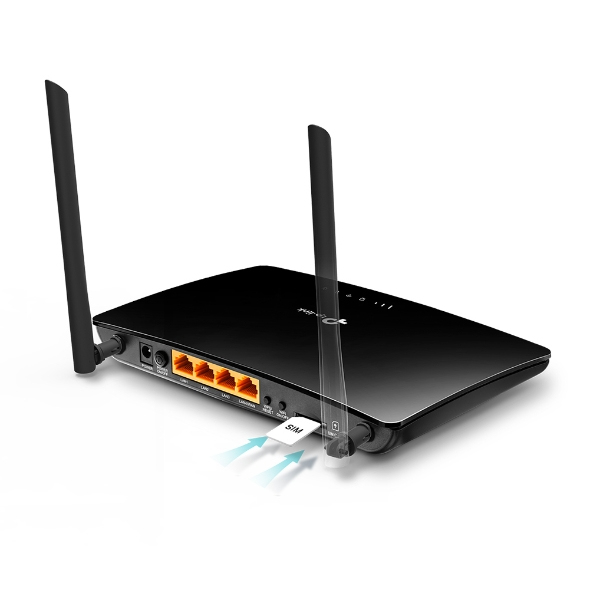

SIM card slot	Yes
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Port forwarding	Yes
Receiver sensitivity	11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm

Mobile network

Specification	Value
Mobile network generation	4G
3G	Yes
4G	Yes
3G standards	HSPA+, UMTS
4G standard	LTE
3G bands supported	1900,2100 MHz
4G bands supported	800,900,1800,1900,2100,2600 MHz

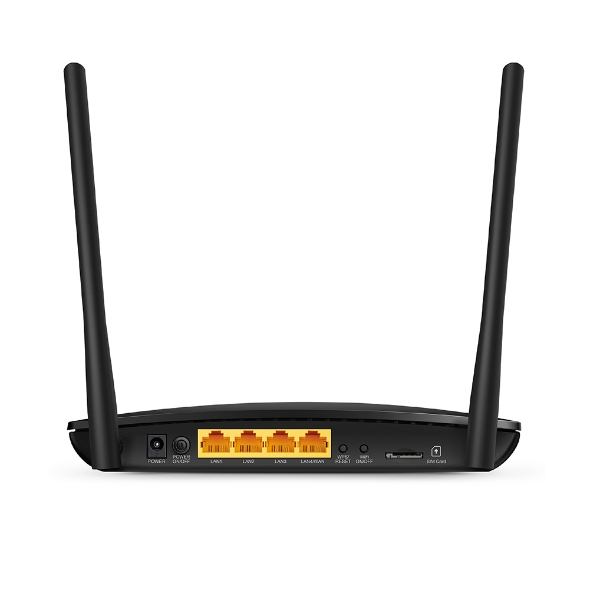

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
DoS attack prevention	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antennas quantity	2
Detachable antenna(s)	Yes

Power

Specification	Value
Power source type	DC
Output voltage	9 V
Output current	0.85 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	163 mm
Height	33.6 mm
Width	202 mm
