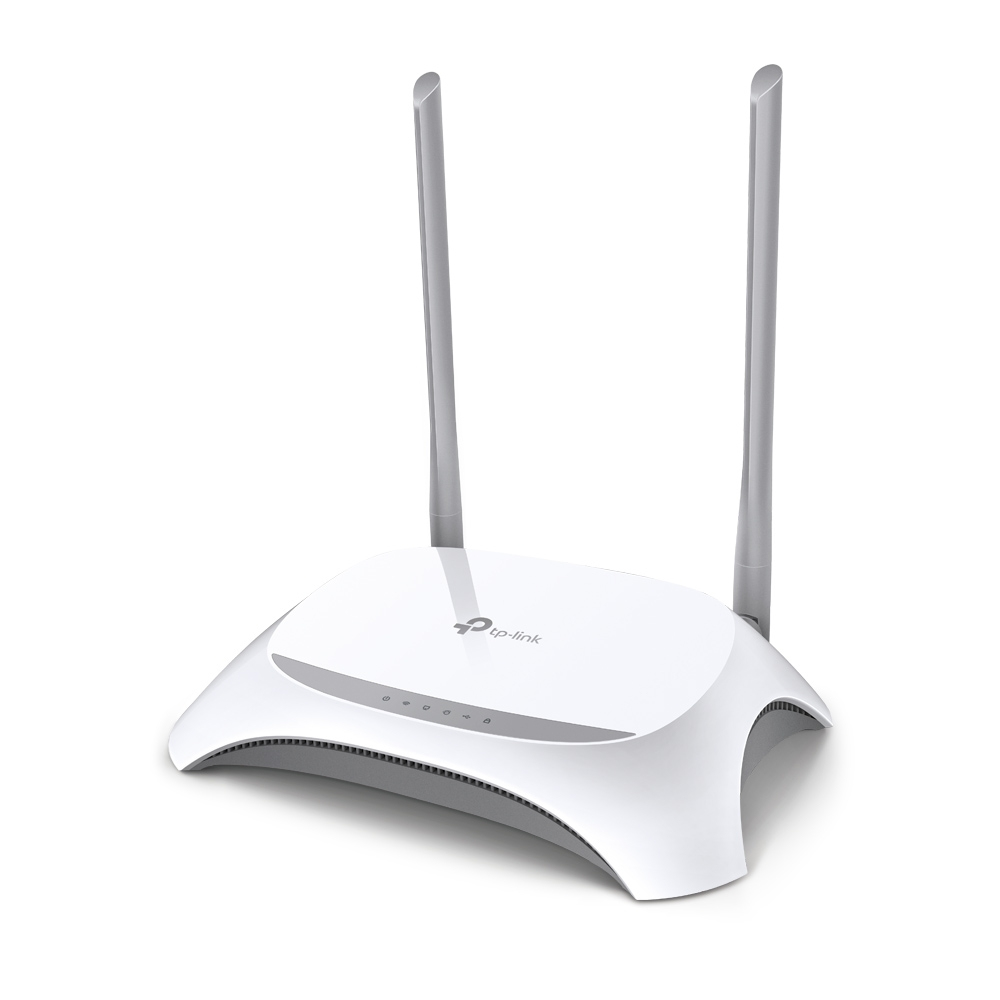

3G/4G Wireless N Router
Model TL-MR3420EAN 8459730514950
64 specifications
- SpeedWi-Fi 4 (802.11n)
- ConnectivityUSB 2.0
- TypeTabletop router
- ColourBlack, White
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Connectivity
- USB 2.0
- Type
- Tabletop router
- Colour
- Black, White
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- TL-MR3420
- Part numbers
- TL-MR3420, TL-MR3420 V5
- EAN / UPC
- 8459730514950, 6935364091187, 320127552672, 718037106328 +10 more
- Also known as
- TP-Link 3G/4G Wireless N Router
Specifications
64 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Wireless Distribution System (WDS) bridge | Yes |
| Receiver sensitivity | 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER |

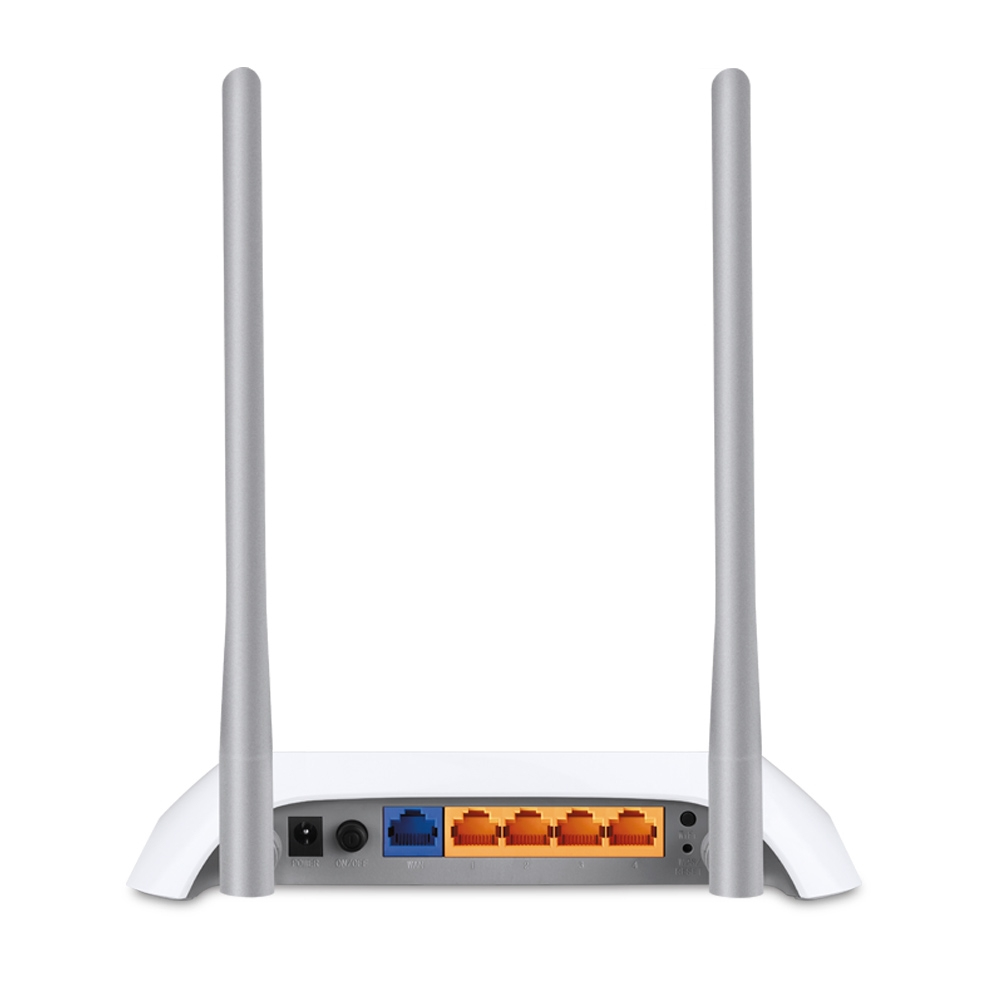

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Firewall | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, White |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 2 |
| Transmit power | 20 dBmW |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 138.2 mm |
| Height | 44 mm |
| Width | 203.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 315 mm |
| Package depth | 240 mm |
| Package height | 70 mm |
| Package weight | 660 g |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 2.4 GHz |
| Dimensions (WxDxH) | 174 x 111 x 30 mm |
| Interface | USB 2.0 |
| Power requirements | 9VDC / 0.85A |
| USB ports quantity | 1 |
| xDSL connection | No |
