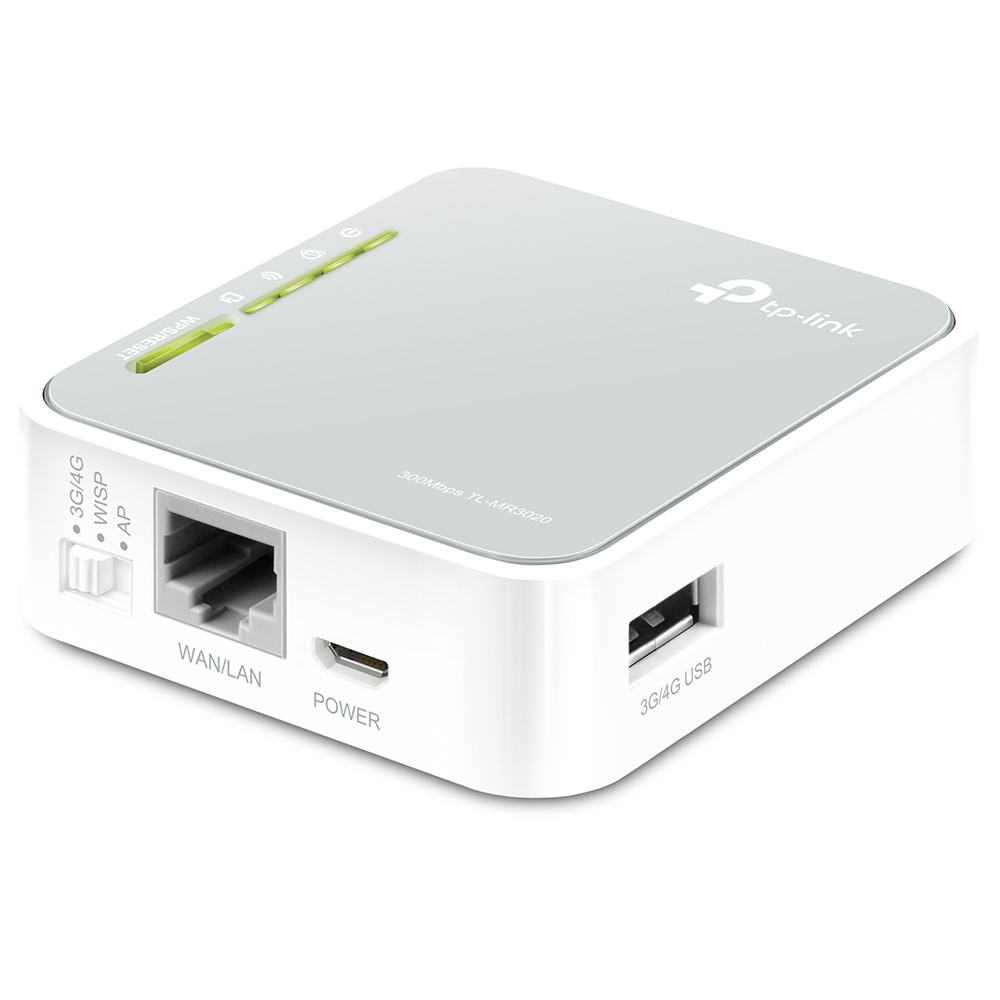

TP-Link Portable 3G/4G Wireless N Router

Portable 3G/4G Wireless N Router

Model TL-MR3020EAN 8459730517098

60 specifications

SpeedWi-Fi 4 (802.11n)
TypePortable router
ColourGrey, White
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Portable router
Colour: Grey, White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
Ethernet LAN (RJ-45) ports: 1

Brand: TP-Link
Category: Wireless Router
Model: TL-MR3020
Part numbers: TL-MR3020, TL-MR3020 V3.2
EAN / UPC: 8459730517098, 778890697883, 5053313212887, 6935364051709 +16 more
Also known as: TP-Link Portable 3G/4G Wireless N Router

Specifications

60 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding	Yes

Mobile network

Specification	Value
3G	Yes
4G	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB 2.0 ports quantity	1
USB charging port	Yes
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Reset button	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Firewall	Yes
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Portable router
Product colour	Grey, White
LED indicators	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), USB
AC adapter included	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	Internal

Power

Specification	Value
Power source type	AC, USB
Output voltage	5 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 80 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	67 mm
Height	22 mm
Width	74 mm

Packaging data

Specification	Value
Package width	110 mm
Package depth	109 mm
Package height	81.5 mm
Package weight	210 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Mobile network connection	Yes
Frequency range	2.4 - 2.4835 GHz
WLAN data transfer rates supported	150 Mbit/s
