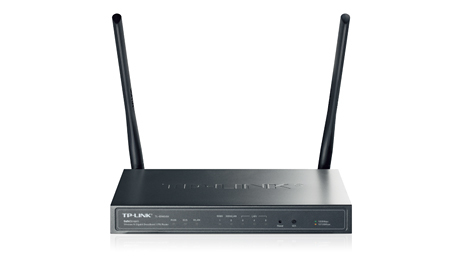

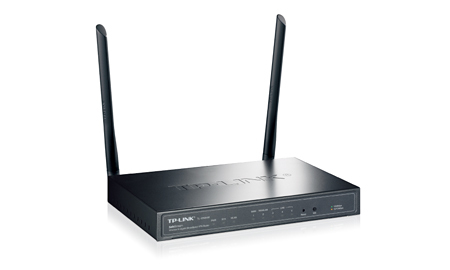

TP-Link TL-ER604W wireless router Gigabit Ethernet Black

Model TL-ER604WEAN 6935364041229

53 specifications

Memory64 MB
SpeedWi-Fi 4 (802.11n)
ColourBlack
Ethernet WANYes
3GNo
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Memory: 64 MB
Speed: Wi-Fi 4 (802.11n)
Colour: Black
Ethernet WAN: Yes
3G: No
Ethernet LAN (RJ-45) ports: 4

Brand: TP-Link
Category: Wireless Router
Model: TL-ER604W
Part number: TL-ER604W
EAN / UPC: 6935364041229, 255865620058, 558691088987, 634392923298 +9 more
Also known as: TP-Link TL-ER604W wireless router Gigabit Ethernet Black

Specifications

53 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes

Wireless LAN features

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	8
VPN support	IPsec/PPTP/L2TP

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value

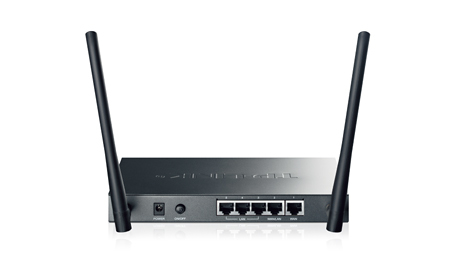

Ethernet LAN (RJ-45) ports	4

Management features

Specification	Value
Web-based management	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Filtering	Yes
MAC address filtering	Yes
System event log	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	RIP-1, RIP-2
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Design

Specification	Value
Product colour	Black
LED indicators	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2
Detachable antenna(s)	Yes

Features

Specification	Value
Internal memory	64 MB
Flash memory	8 MB
Plug and Play	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	126 mm
Height	26 mm
Width	209 mm

Other features

Specification	Value
Mobile network connection	No
Frequency range	2.4 - 2.4835 GHz
Rack mounting	No
WLAN data transfer rates supported	300 Mbit/s
