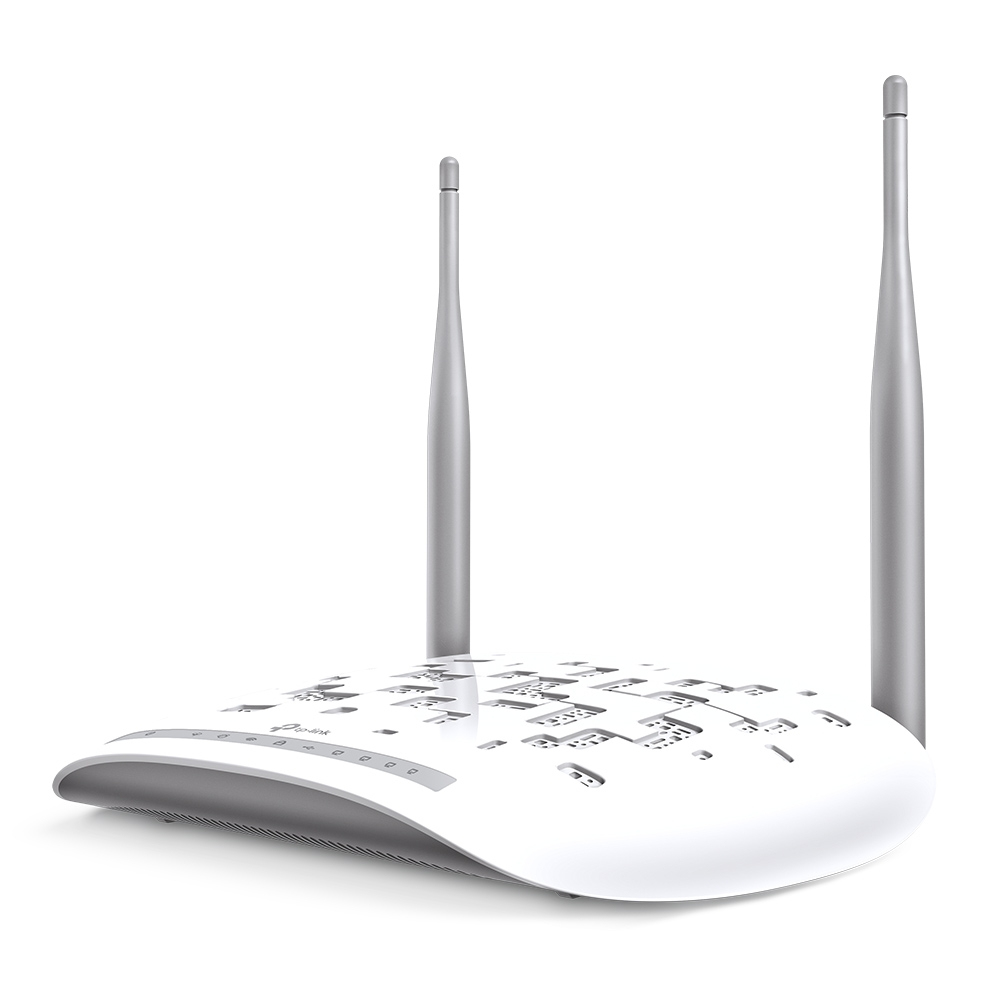

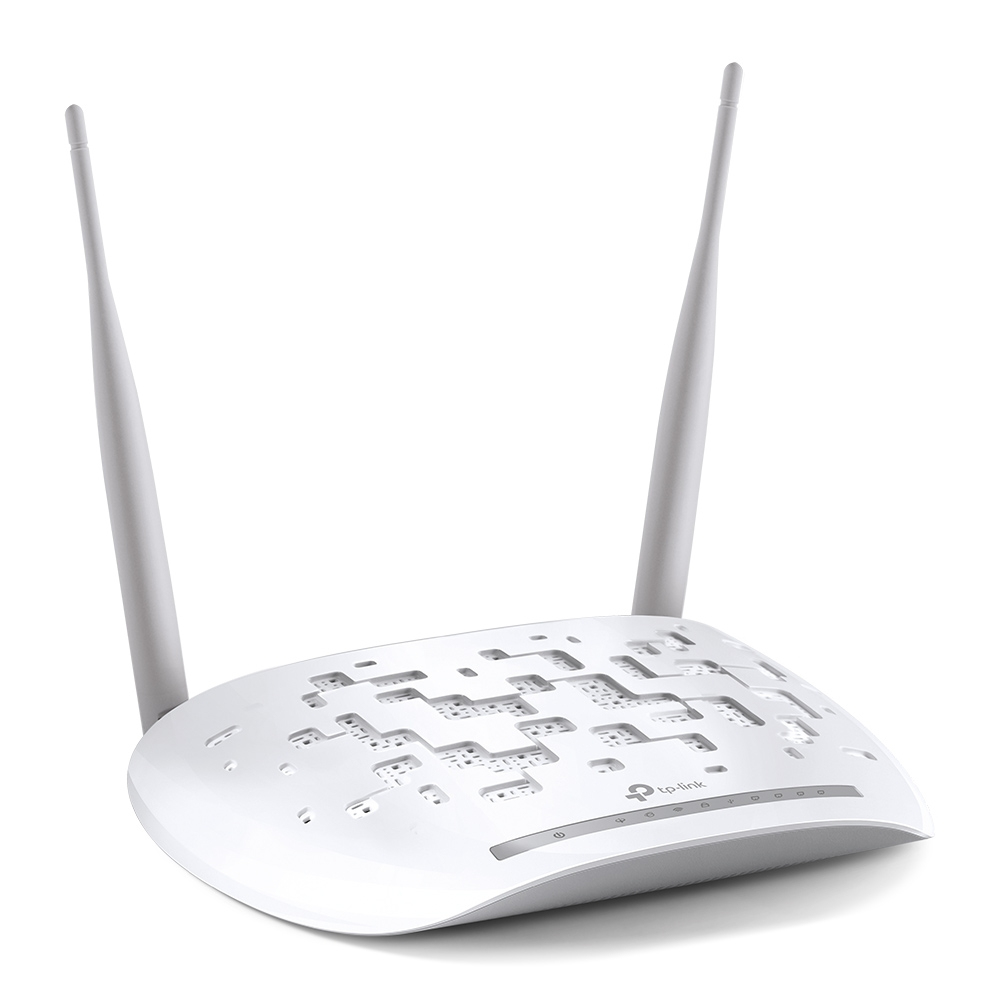

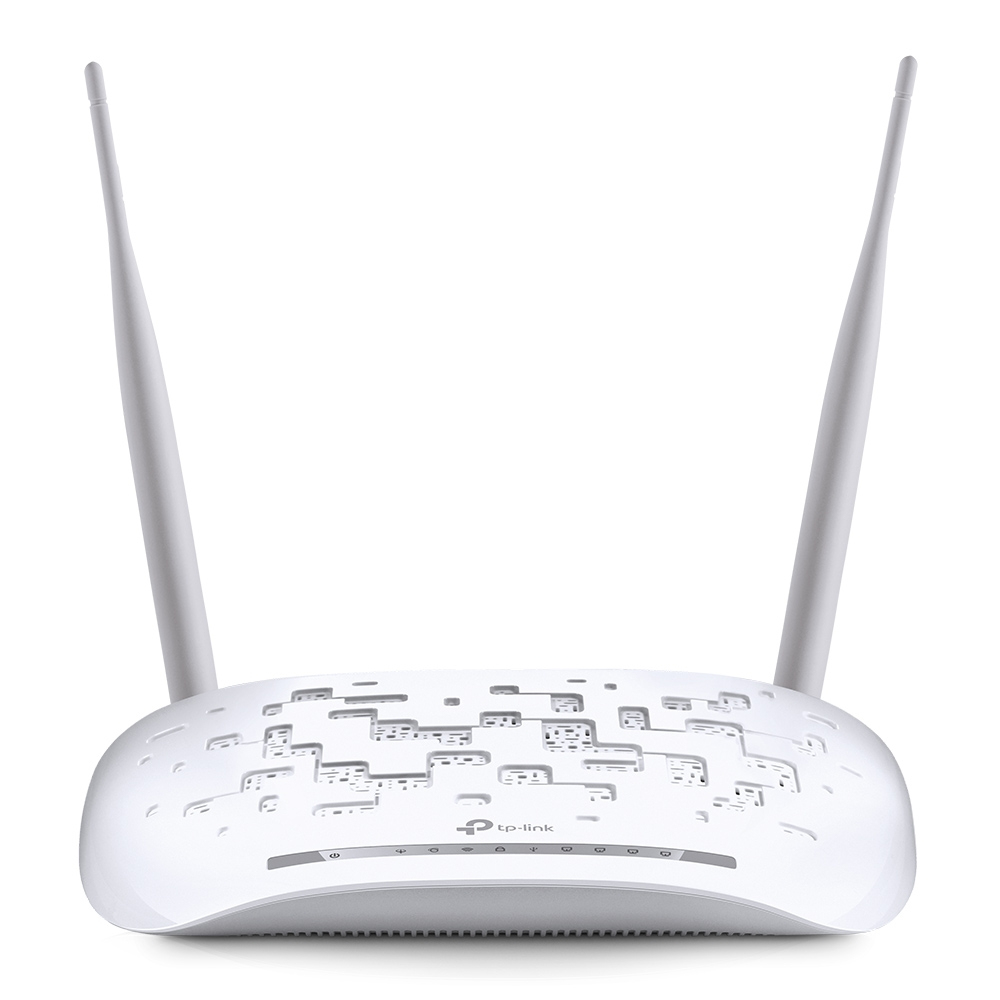

TP-Link 300Mbps Wireless N USB VDSL/ADSL Modem Router

Model TD-W9970Part no. TD-W9970 V2EAN 6935364093440

86 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourWhite
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
Ethernet LAN (RJ-45) ports4

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
Ethernet LAN (RJ-45) ports: 4

Brand: TP-Link
Category: Wireless Router
Model: TD-W9970
Part number: TD-W9970 V2
EAN / UPC: 6935364093440, 1210002615389, 5054242356284, 5055309620317 +2 more
Also known as: TP-Link 300Mbps Wireless N USB VDSL/ADSL Modem Router

Specifications

86 specifications in 20 groups

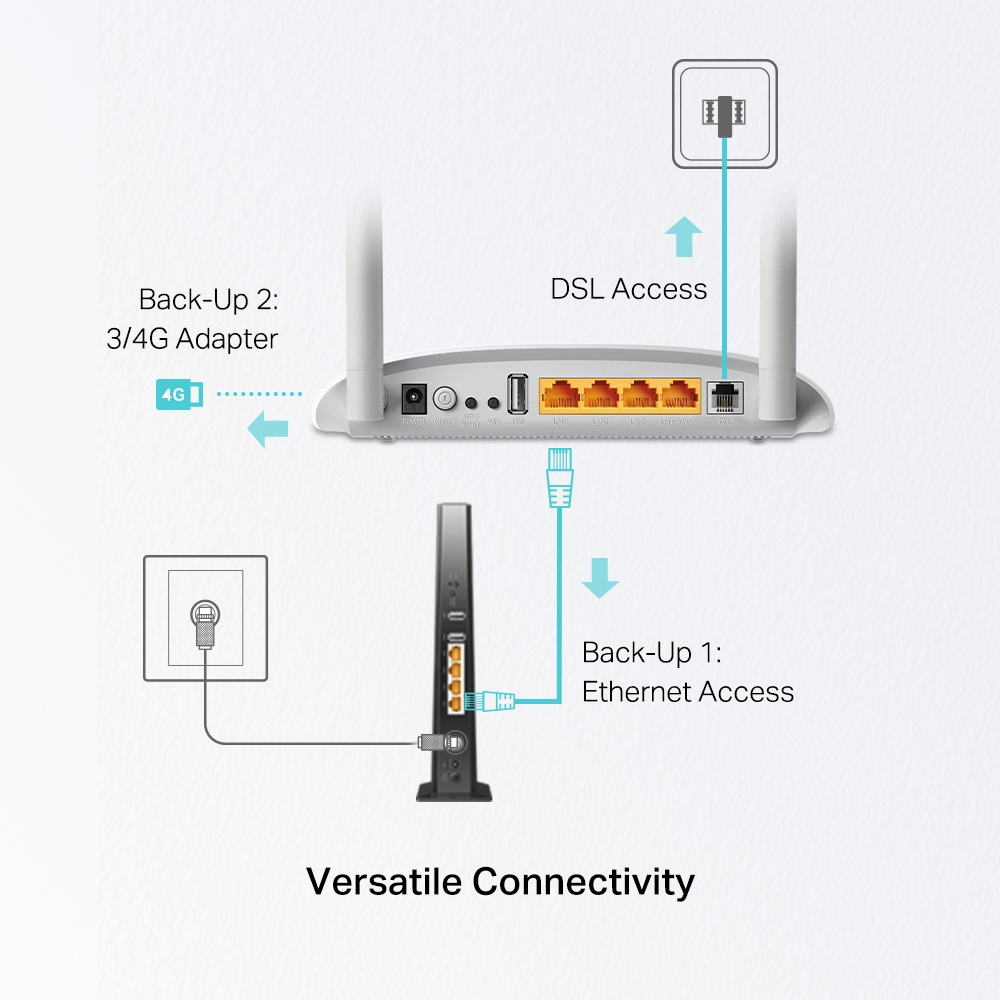

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
USB sharing	Yes
Wireless Distribution System (WDS) bridge	Yes
Built-in FTP server	Yes
Media server	Yes
VPN tunnels quantity	10
VPN Passthrough	Yes
VPN support	PPTP, L2TP, IPSec Pass-through

DSL features

Specification	Value
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes

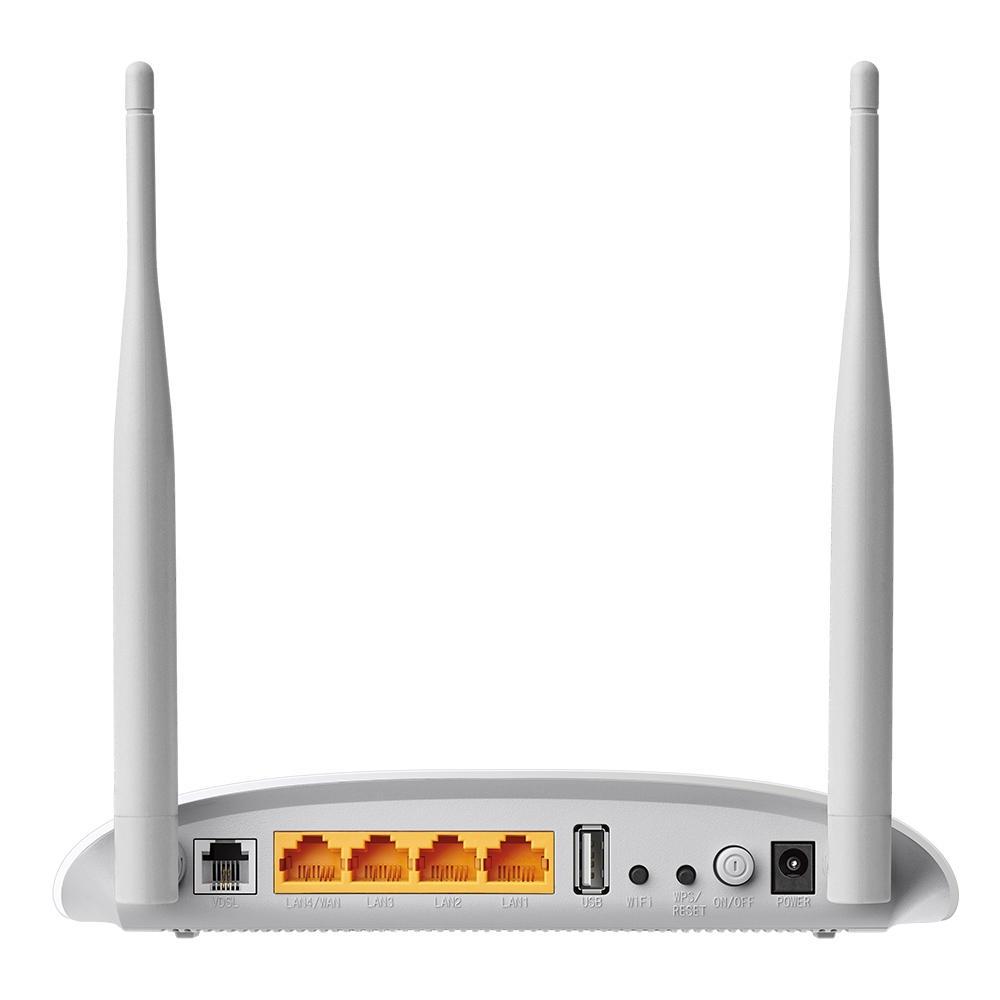

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
RJ-11 ports quantity	1

Management features

Specification	Value
Web-based management	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Guest access	Yes
Stateful Packet Inspection (SPI)	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes
DMZ support	No
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	White
Wall mountable	Yes
LED indicators	Yes
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, FCC, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	macOS

Weight & dimensions

Specification	Value
Depth	130 mm
Height	36 mm
Width	195 mm

Packaging data

Specification	Value
Package width	260 mm
Package depth	232 mm
Package height	70 mm
Package weight	550 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Other features

Specification	Value
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
USB version	2.0
WLAN data transfer rates supported	300 Mbit/s
xDSL connection	Yes
