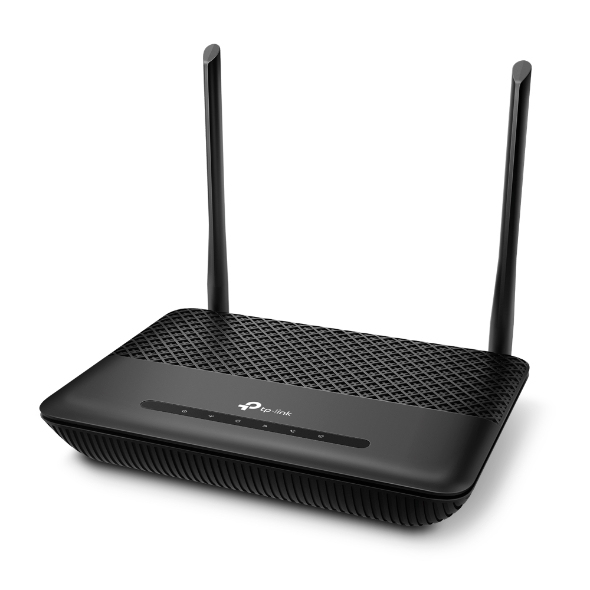

TD-W9960V wireless router Gigabit Ethernet Single-band (2.4 GHz) Black
Model TD-W9960VPart no. TD-W9960V (DE)EAN 6935364088996
62 specifications
- SpeedWi-Fi 4 (802.11n)
- TypeTabletop router
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandSingle-band (2.4 GHz)
- 3GNo
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Tabletop router
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- Single-band (2.4 GHz)
- 3G
- No
- Brand
- TP-Link
- Category
- Wireless Router
- Model
- TD-W9960V
- Part number
- TD-W9960V (DE)
- EAN / UPC
- 6935364088996
- Also known as
- TP-Link TD-W9960V wireless router Gigabit Ethernet Single-band (2.4 GHz) Black
Specifications
62 specifications in 18 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN tunnels quantity | 10 |
| VPN support | OpenVPN, PPTP VPN, IPsec VPN |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL | Yes |
| VDSL2 | Yes |

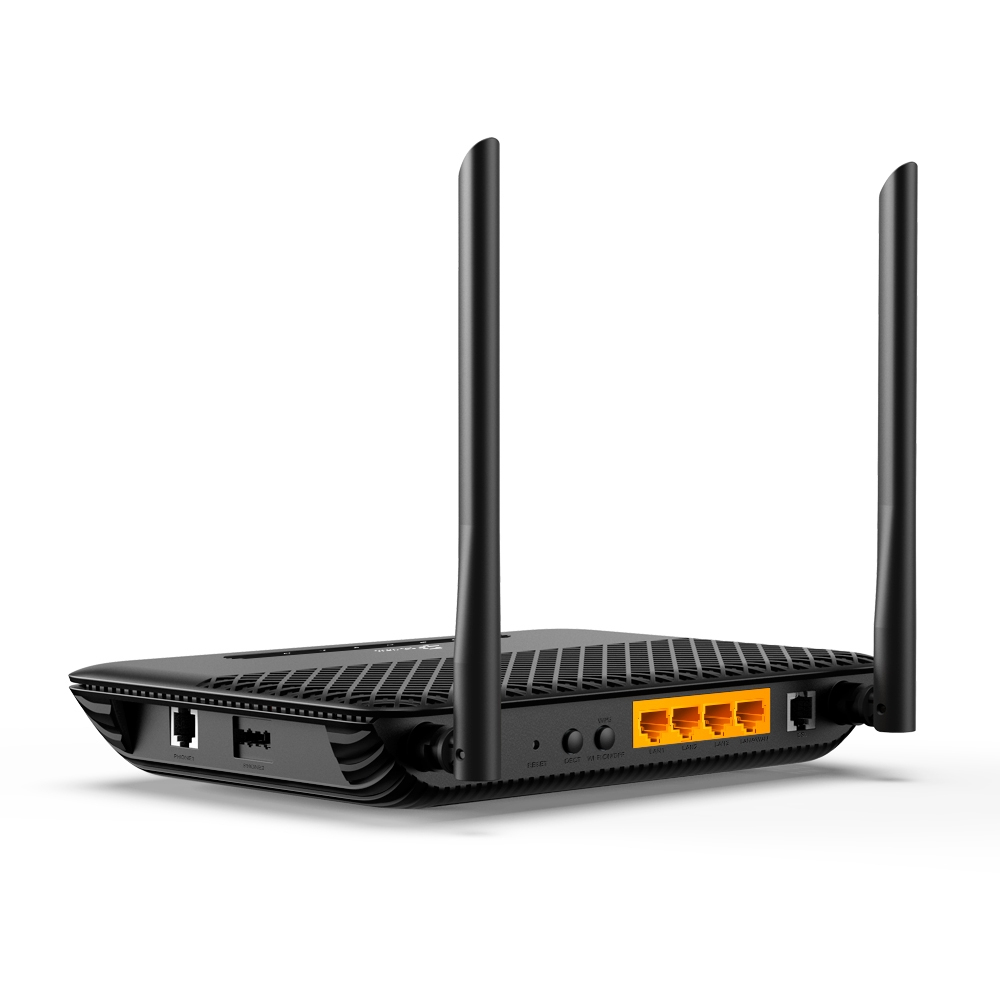

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| RJ-11 ports quantity | 1 |
| Memory card slot(s) | No |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 173.5 mm |
| Height | 36.8 mm |
| Width | 217.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 240 mm |
| Package height | 70 mm |
| Package weight | 901 g |
| Number of products included | 1 pc(s) |
