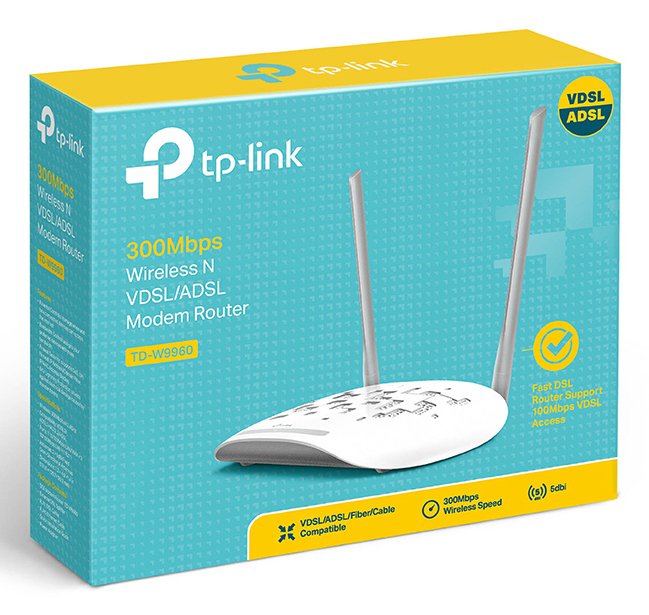

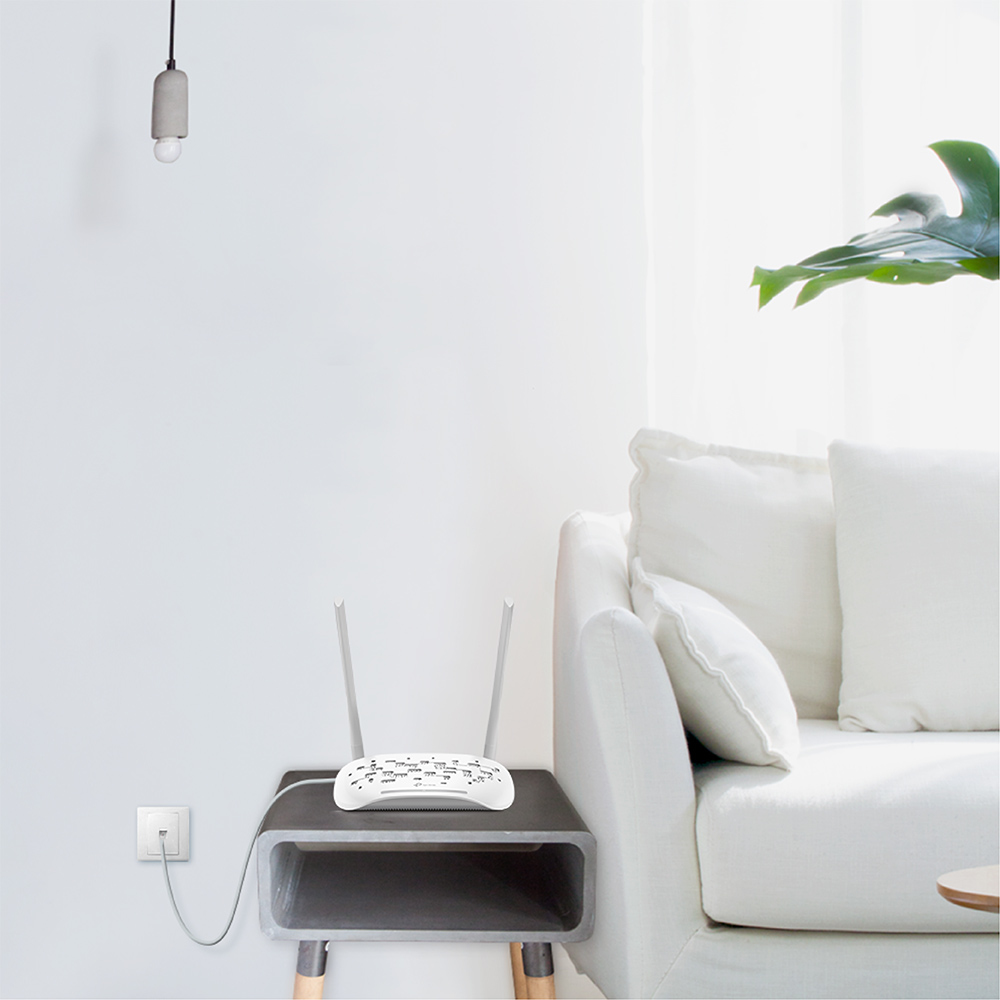

TP-Link 300Mbps Wireless N VDSL/ADSL Modem Router

TP-Link 300Mbps Wireless N VDSL/ADSL Modem Router

Model TD-W9960EAN 1210002615341

67 specifications

SpeedWi-Fi 4 (802.11n)
TypeTabletop router
ColourWhite
Ethernet WANYes
Wi-Fi bandSingle-band (2.4 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Colour: White
Ethernet WAN: Yes
Wi-Fi band: Single-band (2.4 GHz)
3G: No

Brand: TP-Link
Category: Wireless Router
Model: TD-W9960
Part numbers: TD-W9960, TD-W9960 V1
EAN / UPC: 1210002615341, 6935364081966, 6935364081973, 1210002615358
Also known as: TP-Link 300Mbps Wireless N VDSL/ADSL Modem Router

Specifications

67 specifications in 20 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3u
Dynamic DNS (DDNS)	Yes
VPN Passthrough	Yes

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
VDSL2	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	No
RJ-11 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2
Firewall	Yes
Filtering	Yes
MAC address filtering	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	White
Wall mountable	Yes
LED indicators	LAN, Status, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, RoHS

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	5 dBi
Antennas quantity	2

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	DC
Output voltage	9 V
Output current	0.6 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP Home, Windows XP Professional
Linux operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	125.7 mm
Height	36.2 mm
Width	181.6 mm

Packaging data

Specification	Value
Package width	285 mm
Package depth	232 mm
Package height	70 mm
Package weight	490 g

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
